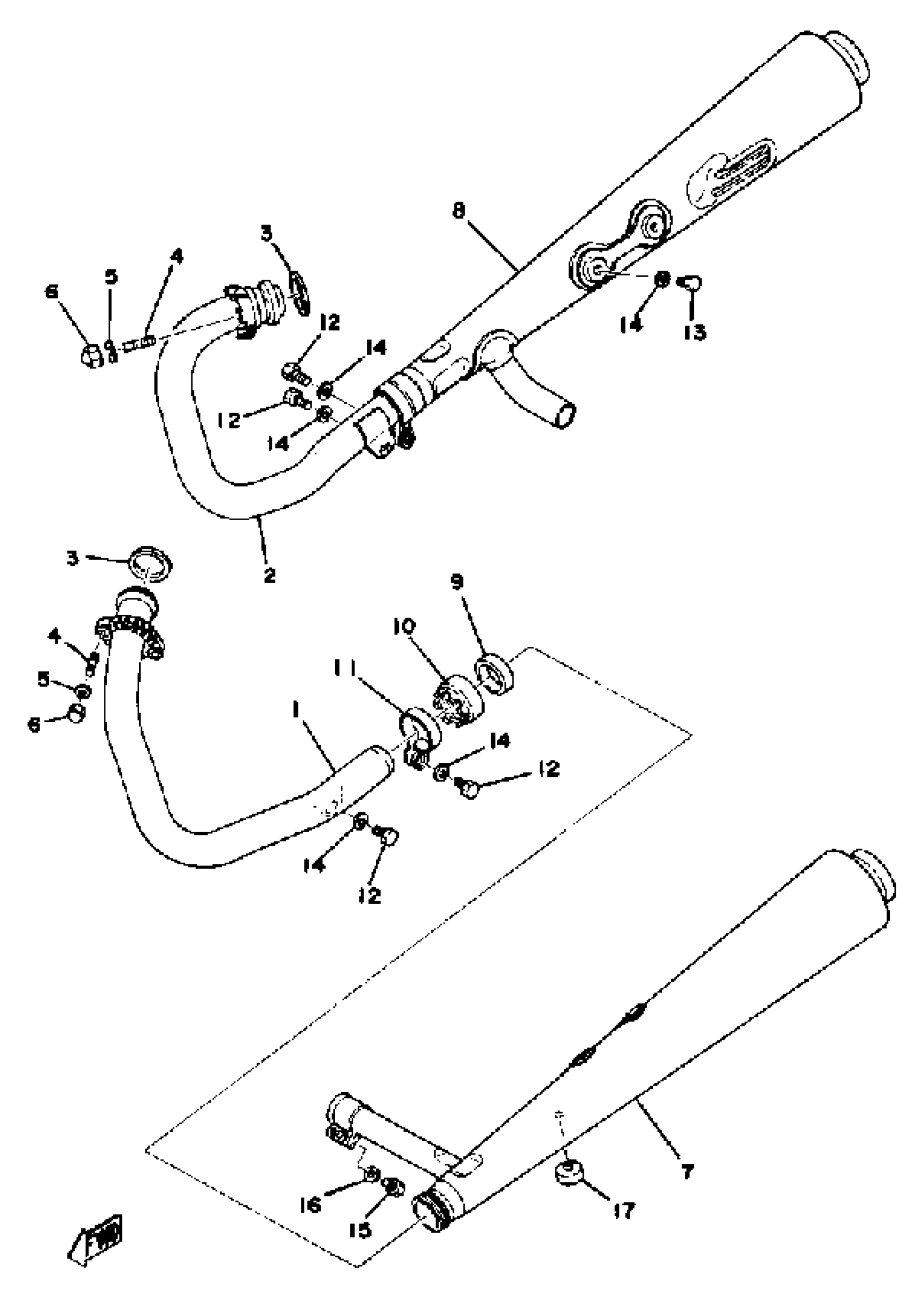

Yamaha XS650D (XS650) 1977 EXHAUST XS650D E E006501~ F Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L (447-14611-)

447-14610-03-00

Unavailable

2

EXHAUST PIPE ASSEMBLY R (447-14621-03)

447-14620-03-00

Unavailable

3

GASKET, EXHAUST PIPE

3GD-14613-00-00

$14.49

4

BOLT, STUD

90116-10195-00

Unavailable

5

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

6

NUT, CROWN (650)

95380-10800-00

Unavailable

7

MUFFLER L (584-14711-00)

584-14711-80-00

Unavailable

8

MUFFLER R (584-14721-00)

584-14721-80-00

Unavailable

9

GASKET,MUFFLER

371-14714-13-00

Unavailable

10

NUT, MUFFLER JOINT

371-14713-00-00

Unavailable

11

CLAMP, HOSE (447-14715-02)

90460-46057-00

Unavailable

12

BOLT,HEXAGON (447)

90105-10058-00

$10.49

13

BOLT,HEXAGON

97017-10016-00

Unavailable

14

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

15

BOLT, HEXAGON

97017-08025-00

$10.49

16

.. WASHER, PLATE

92990-08600-00

Unavailable

17

STOPPER, MAIN STAND

371-27114-00-00

Unavailable
