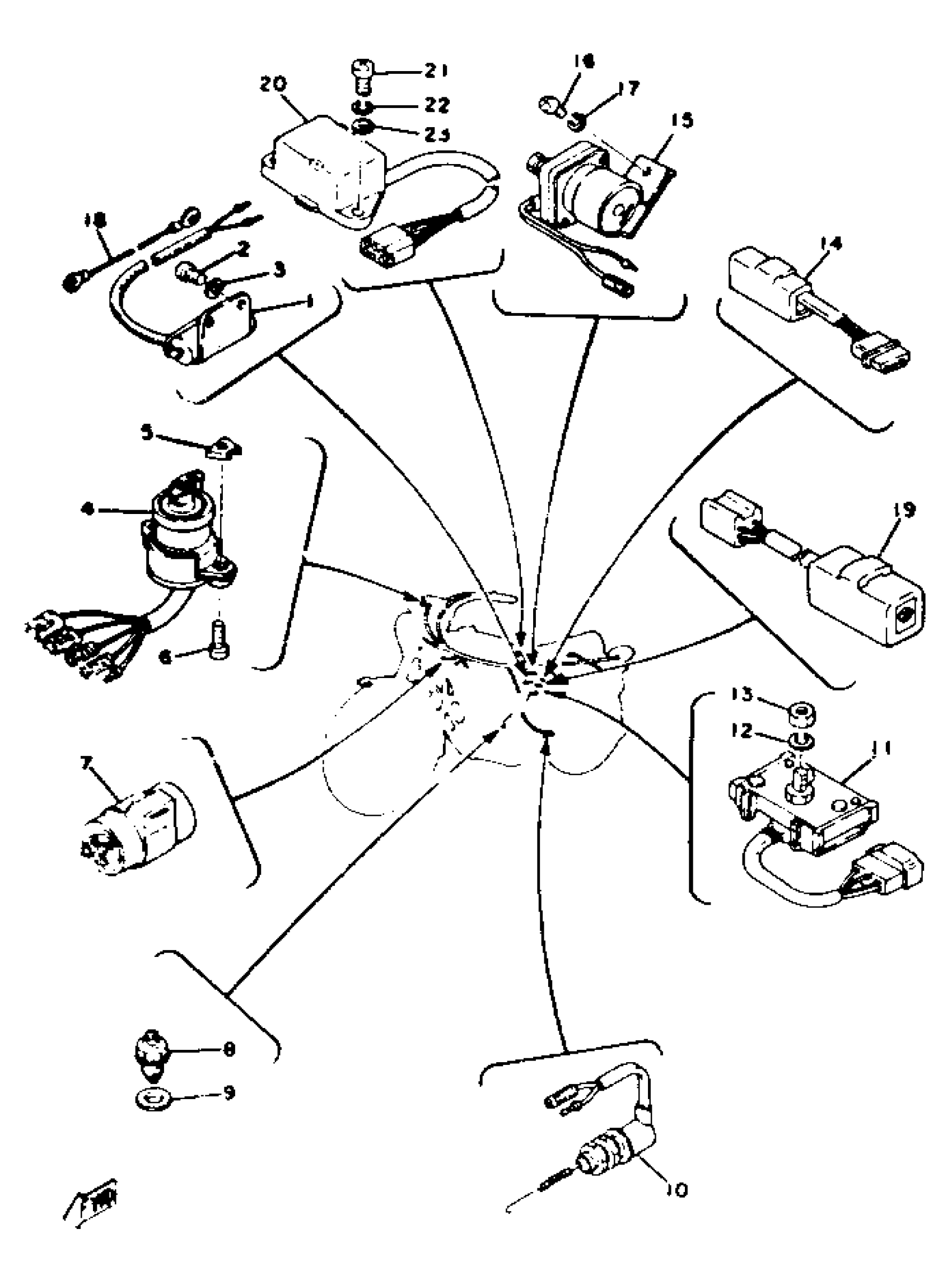

Yamaha XS650D (XS650) 1977 ELECTRICAL 2 XS650 E006501~ - F Diagram

#

Description

Price

1

CONDENSER 1

256-81625-10-00

Unavailable

2

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

3

WASHER, SPRING

92995-06100-00

Unavailable

4

MAIN SWITCH ASSEMBLY

2F0-82508-50-00

Unavailable

5

WASHER, SPECIAL

533-82517-00-00

Unavailable

6

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

7

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

8

NEUTRAL SWITCH ASSY

136-82540-03-00

$31.99

9

WASHER, PLATE

90201-12790-00

$9.49

10

STOP SWITCH ASSEMBLY

533-82530-02-00

Unavailable

11

RECTIFIER ASSEMBLY

447-81970-10-00

Unavailable

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

. NUT

95380-08700-00

Unavailable

14

CHECKER, LIGHT

371-84708-02-00

Unavailable

15

STARTER SWITCH ASSEMBLY

447-81940-10-00

Unavailable

16

SCREW, PAN

98507-06014-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WIRE, LEAD

256-81615-00-00

Unavailable

19

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

20

RSRV LIGHTING UNIT ASSEMBLY

1T3-84308-00-00

Unavailable

21

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable
