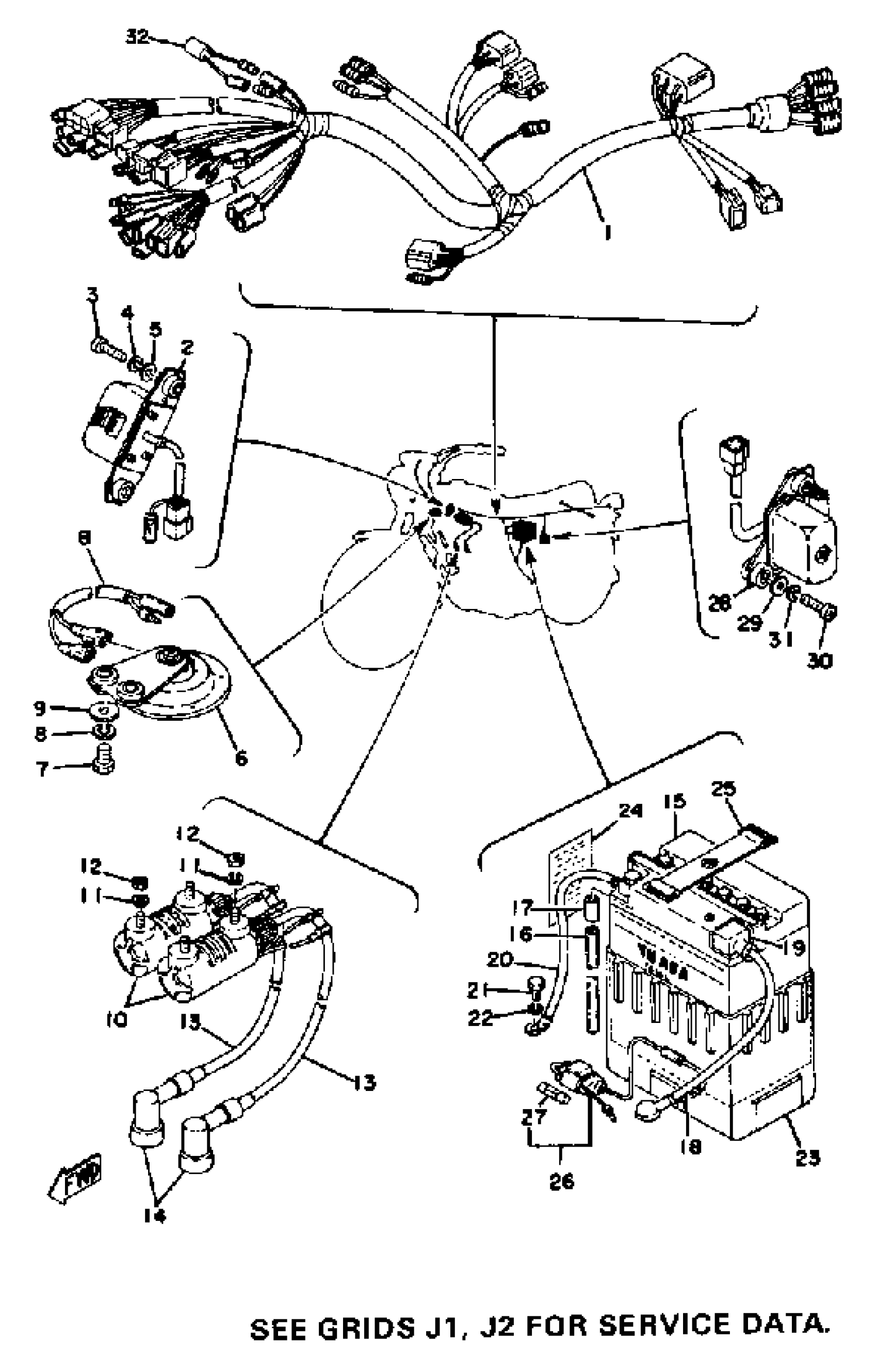

Yamaha XS650D (XS650) 1977 ELECTRICAL 1 XS650D - E - E006501~ - F Diagram

#

Description
Price

1

WIRE HARNESS ASSEMBLY

(1T3-82590-60-00)

Unavailable

1

WIRE HARNESS ASSEMBLY

1T3-82590-61-00

Unavailable

1

WIRE HARNESS ASSEMBLY

(2F0-82590-51-00)

Unavailable

1

WIRE HARNESS ASSEMBLY

(2F0-82590-52-00)

Unavailable

2

RELAY ASSEMBLY

2F0-81950-50-00

Unavailable

2

RELAY ASSEMBLY

447-81950-10-00

Unavailable

2

RELAY ASSEMBLY

447-81950-50-00

Unavailable

3

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER, PLATE

90201-06M08-00

Unavailable

6

HORN

366-83371-52-00

Unavailable

7

BOLT, HEXAGON

97017-08025-00

$10.49

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

WASHER, PLATE (4W3)

90201-086A3-00

$8.49

10

IGNITION COIL ASSEMBLY

254-82310-60-00

Unavailable

11

WASHER, SPRING

92995-06100-00

Unavailable

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

CORD, HIGH TENSION 1

4X7-82341-00-00

Unavailable

14

PLUG CAP ASSY

4BP-82370-01-00

Unavailable

14

PLUG CAP ASSY

7KA-82370-00-00

Unavailable

15

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

16

HOSE (L1500)

90445-084J0-00

Unavailable

17

BUSH, SPEC''L NYLON

(90386-07043-00)

Unavailable

18

WIRE, PLUS LEAD

447-82115-01-00

Unavailable

19

COVER, LEAD WIRE

447-82119-00-00

Unavailable

20

WIRE,MINUS LEAD

2H7-82116-00-00

Unavailable

20

BOLT (661)

97013-06012-00

Unavailable

21

BOLT (661)

97013-06012-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

SEAT, BATTERY

447-82122-00-00

Unavailable

24

LABEL, BATTERY

40A-82141-G0-00

Unavailable

25

BAND,BATTERY

7H3-82131-00-00

Unavailable

26

FUSE HOLDER ASSY

2UJ-82150-02-00

Unavailable

27

FUSE

1A0-82161-00-00

Unavailable

28

VOLTAGE REGULATOR ASSEMBLY

1L9-81910-50-00

Unavailable

29

WASHER, PLATE

90201-06M08-00

Unavailable

30

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

31

WASHER, SPRING

92995-06100-00

Unavailable

32

DIODE (341-81980-01)

341-81980-30-00

Unavailable
