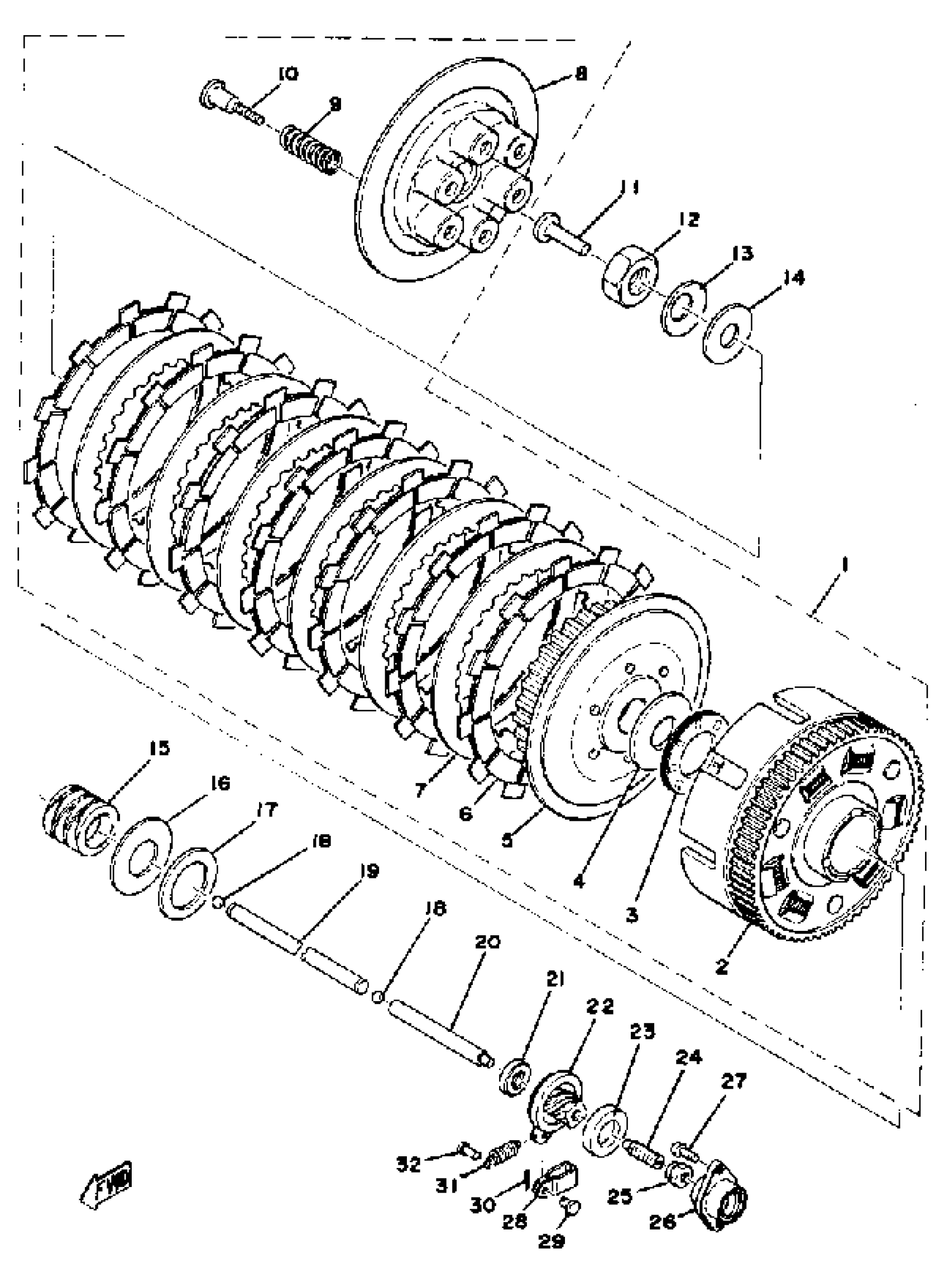

Yamaha XS650D (XS650) 1977 CLUTCH XS650D E E006501~ F Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(1T3-16301-00-00)

Unavailable

1

CLUTCH ASSEMBLY

(447-16301-02-00)

Unavailable

1

CLUTCH ASSEMBLY

(447-16301-02-00)

Unavailable

2

PRI DRVN GEAR

(256-16150-02-00)

Unavailable

3

BEARING, FLAT #41

93341-23504-00

Unavailable

4

PLATE, THRUST (2)

170-16164-00-00

$9.99

5

BOSS, CLUTCH

(341-16371-10-00)

Unavailable

6

PLATE, FRICTION (447)

341-16321-13-00

$23.99

7

PLATE, CLUTCH (447)

341-16325-01-00

$18.49

8

. PLATE, PRESSURE 1

341-16351-01-00

Unavailable

9

SPRING,COMPRESSION 2561633300

90501-26148-00

$4.99

10

SCREW (584)

90149-06102-00

Unavailable

11

ROD, PUSH 1

256-16356-00-00

Unavailable

12

NUT

90170-18089-00

Unavailable

13

SPRING

214-16119-00-00

Unavailable

14

WASHER (6E5)

92990-18200-00

Unavailable

15

SPACER

90560-25131-00

Unavailable

16

PLATE, THRUST (2)

170-16164-00-00

$9.99

17

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

18

BALL

93505-16006-00

Unavailable

19

ROD, PUSH 3

341-16376-00-00

Unavailable

19

ROD, PUSH 2

447-16357-01-00

Unavailable

20

ROD, PUSH 3

341-16376-00-00

Unavailable

20

ROD, PUSH 2

447-16357-01-00

Unavailable

21

OIL SEAL (3G1)

93102-08206-00

Unavailable

22

PUSH LEVER ASSEMBLY

1T3-16340-00-00

Unavailable

23

SEAL, DUST

214-16347-01-00

Unavailable

24

BOLT SET 256163430100

90113-08021-00

Unavailable

25

NUT

90179-08179-00

Unavailable

26

HOUSING, PUSH SCREW

371-16396-00-00

Unavailable

27

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

28

JOINT

214-16389-00-00

Unavailable

29

PIN W/HOLE 214163790000

90240-06005-00

Unavailable

30

. PIN, COTTER

91401-10015-00

Unavailable

31

SPRING, TENSION

90506-10023-00

Unavailable

32

HOOK, SPRING

132-16346-00-00

Unavailable
