CARBURETOR XS650D

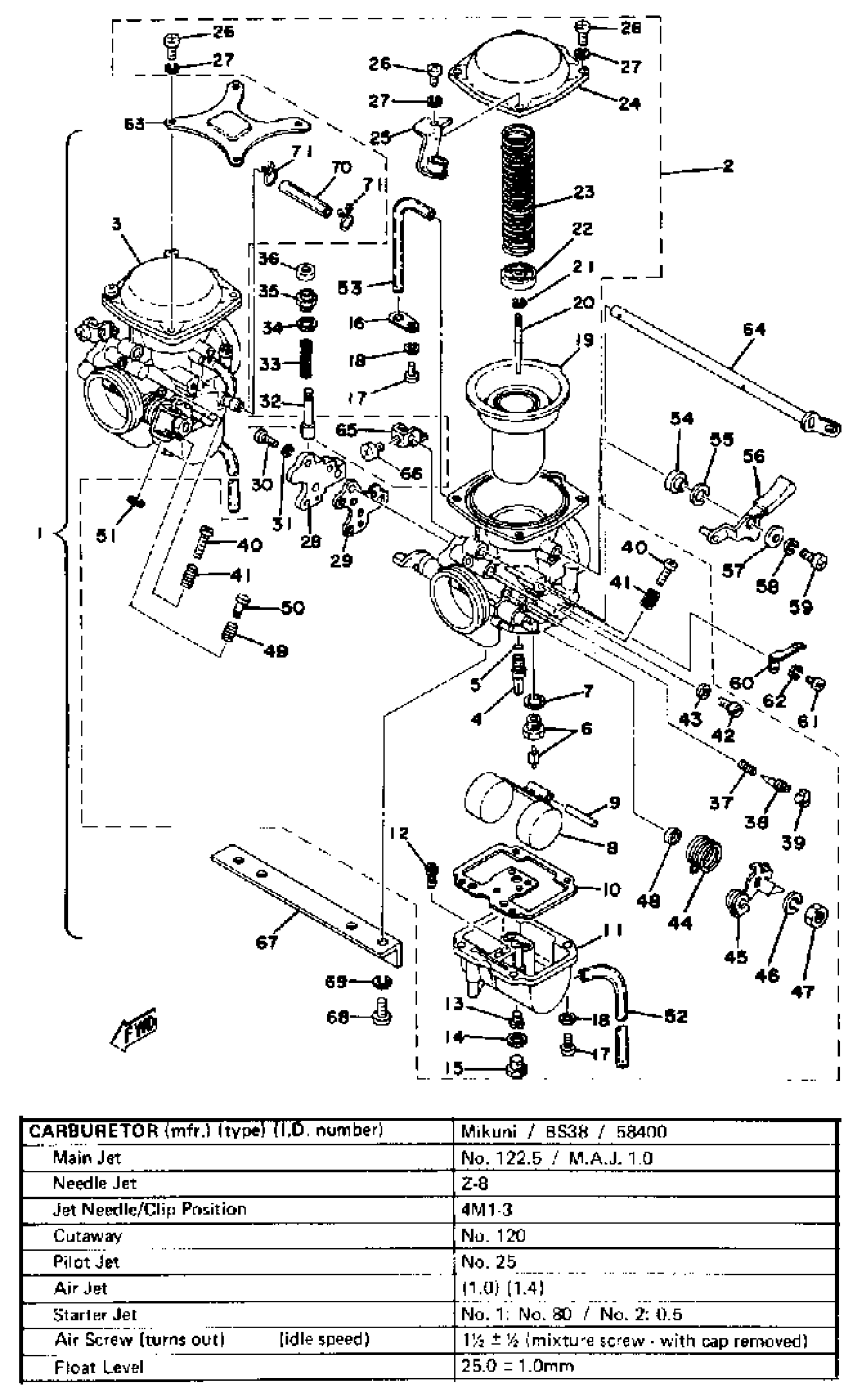

Yamaha XS650D (XS650) 1977 CARBURETOR XS650D Diagram
#
1
TOOL
UNA-VAILA-BL-EI
Unavailable
2
. CARB ASSY, LEFT
584-14901-00-00
Unavailable
3
. CARB ASSY, RIGHT
584-14902-00-00
Unavailable
4
. NOZZLE, MAIN (Z-8)
341-14941-88-00
Unavailable
10
.. UNAVAILABE IN PRICE BOOK
256-19840-00-00
Unavailable
11
.. BODY, FLOAT CHAMBER
584-14981-16-00
Unavailable
12
.. JET, PILOT (NO 275)
584-14142-27-A0
Unavailable
13
JET,MAIN #122.5
3G2-1423A-75-A1
Unavailable
13
JET,MAIN #127.5
3G2-1423A-76-00
Unavailable
14
WASHER
256-14956-01-00
Unavailable
15
.. SCREW, PLUG
256-14991-00-00
Unavailable
16
PLATE
500-14146-00-00
Unavailable
17
SCREW, PAN HEAD
98511-04012-00
Unavailable
18
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
19
.. DIAPHRAGM ASSY (256-14940-01-00)
256-14940-00-00
Unavailable
20
. NEEDLE (4M1-3)
584-14116-01-00
Unavailable
21
.. CLIP
584-14919-00-00
Unavailable
22
.. PLATE, NEEDLE FITTING
256-14946-00-00
Unavailable
23
.. SPRING, DIAPHRAGM
584-14933-00-00
Unavailable
24
.. COVER, DIAPHRAGM
256-14958-00-00
Unavailable
25
.. THROTTLE BRACKET ASSY
447-14926-00-00
Unavailable
26
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
27
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
28
.. BODY, STARTER
584-14907-00-00
Unavailable
29
.. GASKET, STARTER BODY
447-14979-00-00
Unavailable
30
SCREW, PAN HEAD
98511-04012-00
Unavailable
31
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
32
.. PLUNGER, STARTER
584-14171-00-00
Unavailable
33
. SPRING, PLUNGER
256-14135-00-00
Unavailable
34
WASHER
256-14954-00-00
Unavailable
35
.. CAP, PLUNGER
584-14176-00-00
Unavailable
36
.. COVER, PLUNGER CAP
306-14173-00-00
Unavailable
37
SPRING, AIR ADJUSTING
127-14134-00-00
Unavailable
38
.. SCREW, PILOT
584-14923-00-00
Unavailable
39
.. CAP, PILOT SCREW
584-14969-00-00
Unavailable
40
.. SCREW, THROTTLE STOP
256-14922-01-00
Unavailable
41
.. SPRING, THROTTLE STOP
256-14934-01-00
Unavailable
42
.. PLUG, SCREW
341-14991-00-00
Unavailable
43
.. WASHER, PLUG SCREW
584-14956-00-00
Unavailable
44
.. SPRING, THROTTLE LEFT
584-14931-00-00
Unavailable
45
.. LEVER, THROTTLE LEFT
306-14964-00-00
Unavailable
46
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
47
NUT(3DM)
95304-12600-00
Unavailable
48
.. SEAL
256-14997-00-00
Unavailable
49
. SPRING, ADJUSTER
584-14934-00-00
Unavailable
50
. ROD, PUSH
584-14992-00-00
Unavailable
51
.. CLIP, PUSH ROD
584-14937-00-00
Unavailable
52
.. HOSE
256-14197-01-00
Unavailable
53
.. HOSE
256-14987-00-00
Unavailable
54
.. RING
256-14918-00-00
Unavailable
55
.. WASHER, STARTER LEVER
584-14955-00-00
Unavailable
56
.. LEVER ASSY
306-14905-02-00
Unavailable
57
WASHER
4CW-14962-00-00
Unavailable
58
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
59
SCREW, PAN HEAD
98511-04012-00
Unavailable
60
. SPRING, STARTER LEVER
584-14953-00-00
Unavailable
61
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
62
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
63
. PLATE, UPPER
584-14243-00-00
Unavailable
64
. SHAFT, STARTER LEVER
584-14977-00-00
Unavailable
65
. LEVER, STARTER 2 (584-14905-00-00)
1J7-14986-00-00
Unavailable
66
. SCREW, STARTER LEVER 2
584-14991-00-00
Unavailable
67
. PLATE, LOWER
584-14146-00-00
Unavailable
68
SCREW, PAN
98507-06014-00
Unavailable
69
WASHER, SPRING
92995-06100-00
Unavailable
70
. HOSE
306-14998-00-00
Unavailable
71
. CLIP
341-14919-00-00
Unavailable
