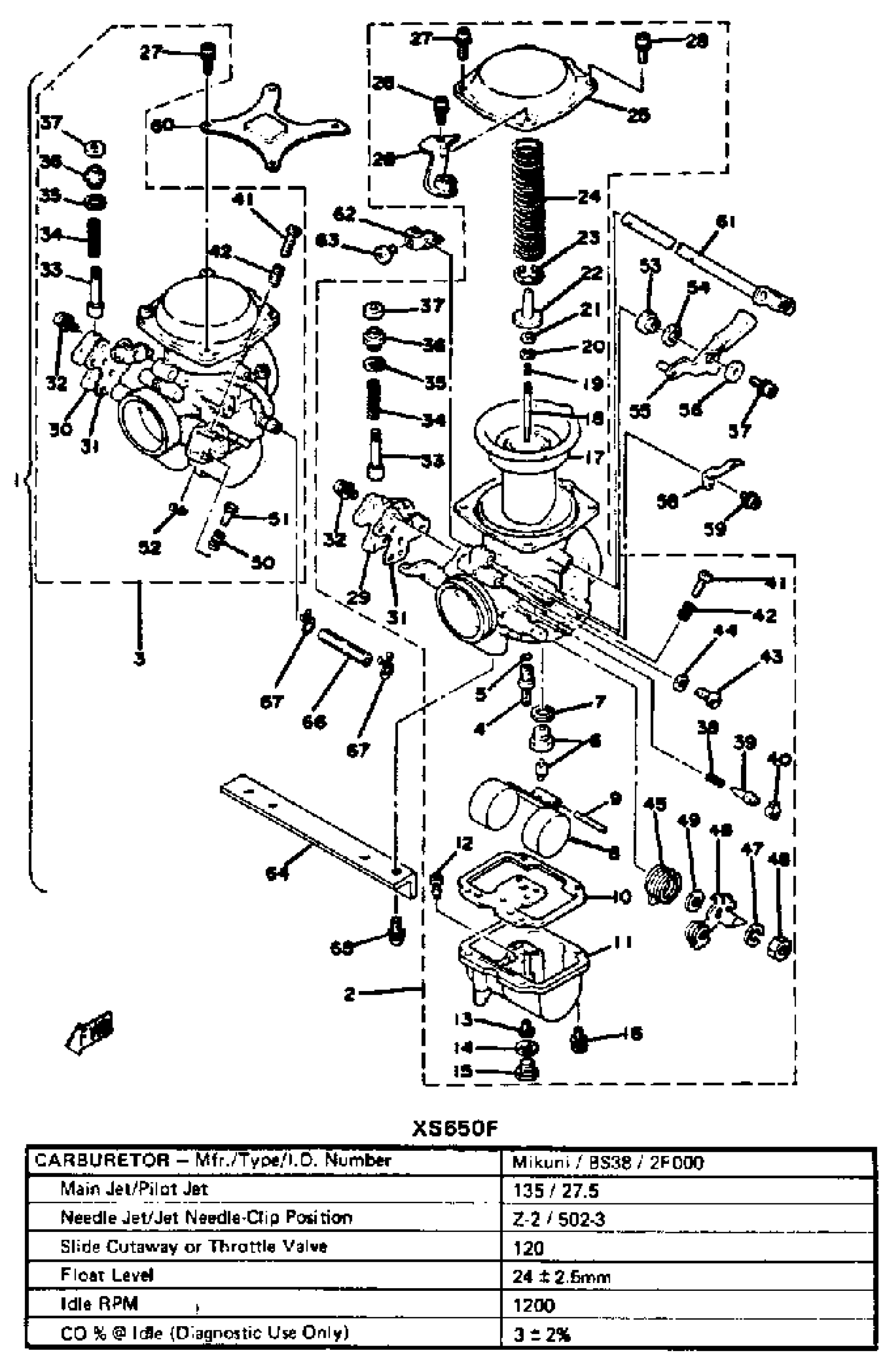

Yamaha XS650D (XS650) 1977 CARBURETOR XS650 E006501~ F Diagram

#

Description
Price

1

TOOL

UNA-VAILA-BL-EI

Unavailable

2

CARBURETOR ASSEMBLY 1

(2F0-14901-00-00)

Unavailable

3

CARBURETOR ASSEMBLY 2

(2F0-14902-00-00)

Unavailable

4

.. NOZZLE, MAIN

2F0-14941-82-00

Unavailable

5

O-RING (256)

93210-03142-00

$12.49

6

VALVE SEAT ASSY

168-14190-20-00

$35.99

7

WASHER, VALVE SEAT

214-14195-00-00

$7.99

8

FLOAT

256-14985-00-00

$93.99

9

PIN, FLOAT

127-14186-00-00

$6.65

10

GASKET, FLOAT CHAMBER

256-14984-01-00

$44.99

11

BODY, FLOAT CHAMBER

(1J7-14981-09-00)

Unavailable

12

.. JET, PILOT (NO 275)

584-14142-27-A0

Unavailable

13

JET, MAIN (#135)

3G2-14231-27-00

$13.49

14

WASHER

256-14956-01-00

$7.99

15

. SCREW

1A8-14991-00-00

Unavailable

16

SCREW, PAN HEAD

98517-04012-00

Unavailable

17

.. DIAPHRAGM ASSEMBLY

2F0-14940-00-00

Unavailable

18

.. NEEDLE

2F0-14116-02-00

Unavailable

19

.. SPRING

2F0-14589-00-00

Unavailable

20

CLIP

256-14919-00-00

Unavailable

21

.. RING

2F0-14918-00-00

Unavailable

22

PLATE, NEEDLE FTNG

(2F3-14946-00-00)

Unavailable

23

.. CLIP

2F0-14919-00-00

Unavailable

24

SPRING, DIAPHRAGM

(2F0-14933-00-00)

Unavailable

25

COVER, DIAPHRAGM

(256-14958-00-00)

Unavailable

26

BRACKET, THROTTLE 1

(447-14926-00-00)

Unavailable

27

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

28

SCREW, PN/HD.W/WSHR

(97601-05114-00)

Unavailable

29

BODY, STARTER

(2F0-14907-00-00)

Unavailable

30

BODY, STARTER

(1A8-14907-00-00)

Unavailable

31

.. GASKET, STARTER BODY

447-14979-00-00

Unavailable

32

SCREW, PAN HEAD

98517-04012-00

Unavailable

32

SCREW, PAN HEAD

98517-04012-00

Unavailable

33

.. PLUNGER, STARTER

584-14171-00-00

Unavailable

34

. SPRING, PLUNGER

256-14135-00-00

Unavailable

35

WASHER

256-14954-00-00

Unavailable

36

.. CAP, PLUNGER

584-14176-00-00

Unavailable

37

.. COVER, PLUNGER CAP

306-14173-00-00

Unavailable

38

.. SPRING, AIR ADJUSTING

2F0-14134-00-00

Unavailable

39

.. SCREW, PILOT

2F0-14923-00-00

Unavailable

40

.. CAP, PILOT SCREW

584-14969-00-00

Unavailable

41

.. SCREW, THROTTLE STOP

256-14922-01-00

Unavailable

42

.. SPRING, THROTTLE STOP

256-14934-01-00

Unavailable

43

.. PLUG, SCREW

341-14991-00-00

Unavailable

44

.. WASHER, PLUG SCREW

584-14956-00-00

Unavailable

45

.. SPRING, THROTTLE LEFT

584-14931-00-00

Unavailable

46

LEVER, THROTTLE 2

(306-14964-00-00)

Unavailable

47

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

48

NUT, HEXAGON 98801-12200

90170-12175-00

Unavailable

48

NUT(6L2)

95333-08600-00

Unavailable

49

VALVE, THROTTLE

(306-14970-00-00)

Unavailable

50

SPRING, THROTTLE STOP

(584-14934-00-00)

Unavailable

51

. ROD, PUSH

584-14992-00-00

Unavailable

52

CLIP

(584-14937-00-00)

Unavailable

53

.. RING

256-14918-00-00

Unavailable

54

.. WASHER, STARTER LEVER

584-14955-00-00

Unavailable

55

.. LEVER ASSY

306-14905-02-00

Unavailable

56

WASHER

4CW-14962-00-00

Unavailable

57

SCREW, PAN HEAD

98517-04012-00

Unavailable

58

.. SPRING

584-14938-00-00

Unavailable

59

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

60

PLATE

(584-14243-00-00)

Unavailable

61

SHAFT, STARTER LVR

(2F0-14977-00-00)

Unavailable

62

. LEVER, STARTER

2F0-14905-00-00

Unavailable

63

. SCREW, STARTER LEVER 2

584-14991-00-00

Unavailable

64

PLATE

(584-14146-00-00)

Unavailable

65

. SCREW, PN/HDW/WSHR

(97601-06114-00)

Unavailable

66

PIPE, STARTER CON

(306-14988-00-00)

Unavailable

67

CLIP

(341-14919-00-00)

Unavailable
