1979 Yamaha XS650_2F (XS650_2F) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1979 Yamaha XS650_2F (XS650_2F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

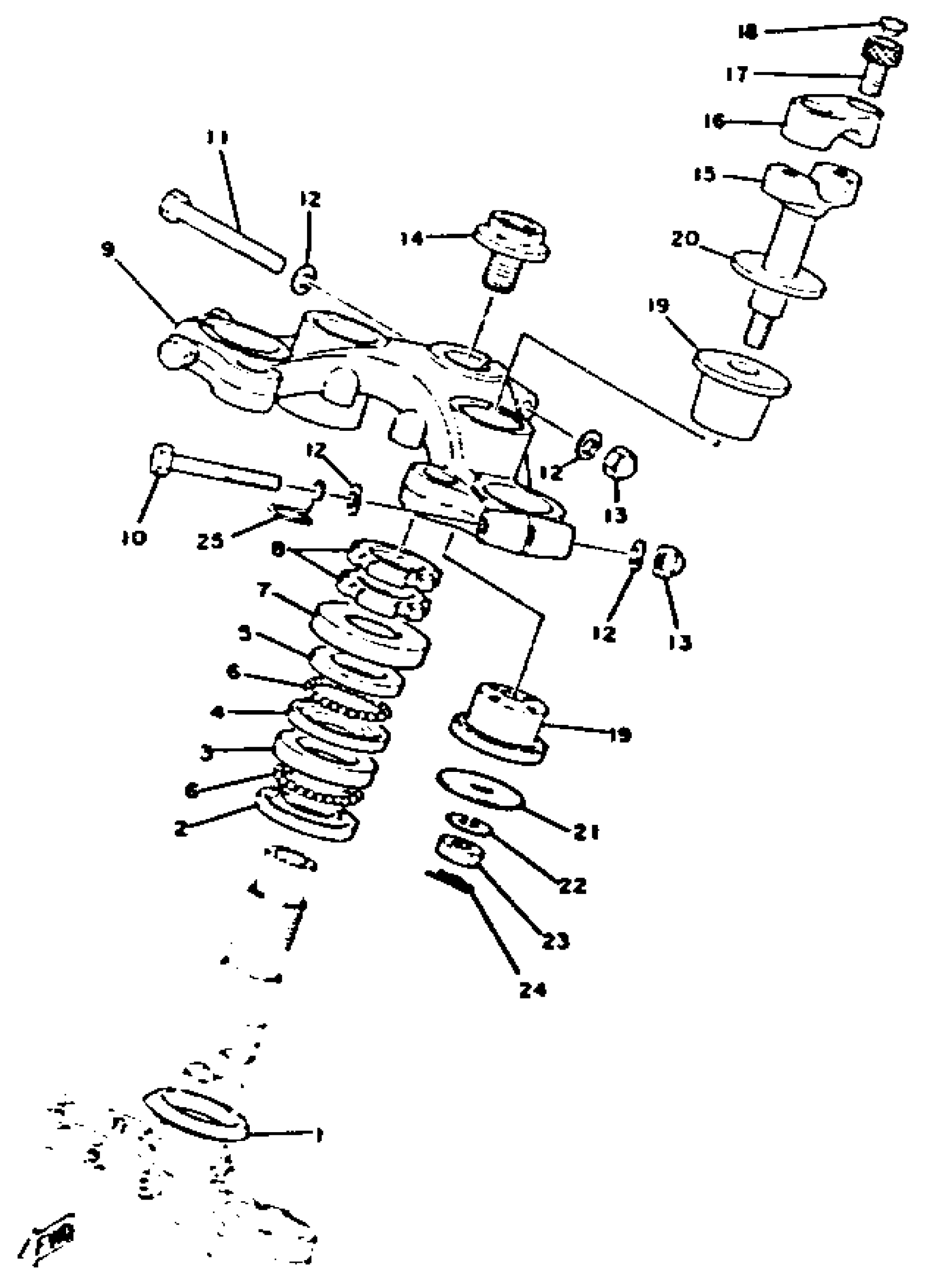

1979 Yamaha XS650_2F (XS650_2F) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAL, DUST

164-23462-00-00

1
Out of stock

2

RACE, BALL 1

256-23411-00-00

1
Out of stock

3

RACE, BALL2

256-23412-00-00

—
Out of stock

4

RACE, BALL3

256-23413-00-00

—
Out of stock

5

RACE, BALL4

256-23414-00-00

—
Out of stock

6

BALL

93501-04011-00

1
Out of stock

7

COVER, BALL RACE

136-23415-00-00

1
Out of stock

8

NUT

90179-25004-00

1
Out of stock

9

CROWN, HANDLE

2M0-23435-00-98

1
Out of stock

10

BOLT, HEXAGON

97013-08055-00

1
Out of stock

11

BOLT

97021-08065-00

1
Out of stock

12

.. WASHER, PLATE

92990-08600-00

1
Out of stock

13

NUT, CROWN

95303-08800-00

1
Out of stock

14

BOLT (2A2)

90105-14102-00

1
Out of stock

15

HOLDER, HANDLE LOWER

4AA-23442-01-98

1
Out of stock

16

HOLDER, HANDLE UPR

360-23441-01-98

1
Out of stock

17

BOLT, SOCKET

91317-08025-00

—
Out of stock

18

CAP, BOLT (371,447)

341-23469-00-00

—
Out of stock

19

BUSHING, RUBBER

1T4-23434-00-00

—
Out of stock

20

WASHER (1J7)

90209-12151-00

—
Out of stock

21

WASHER PLATE 256234440000

90201-10149-00

—
Out of stock

22

YBS67-10 WASHER, SPRING

92990-10100-00

—
Out of stock

23

NUT (682)

95380-10700-00

1
Out of stock

24

CLIP 136253750000

90468-12006-00

—
Out of stock

25

HOLDER, CABLE

4H7-23317-00-00

1
Out of stock
