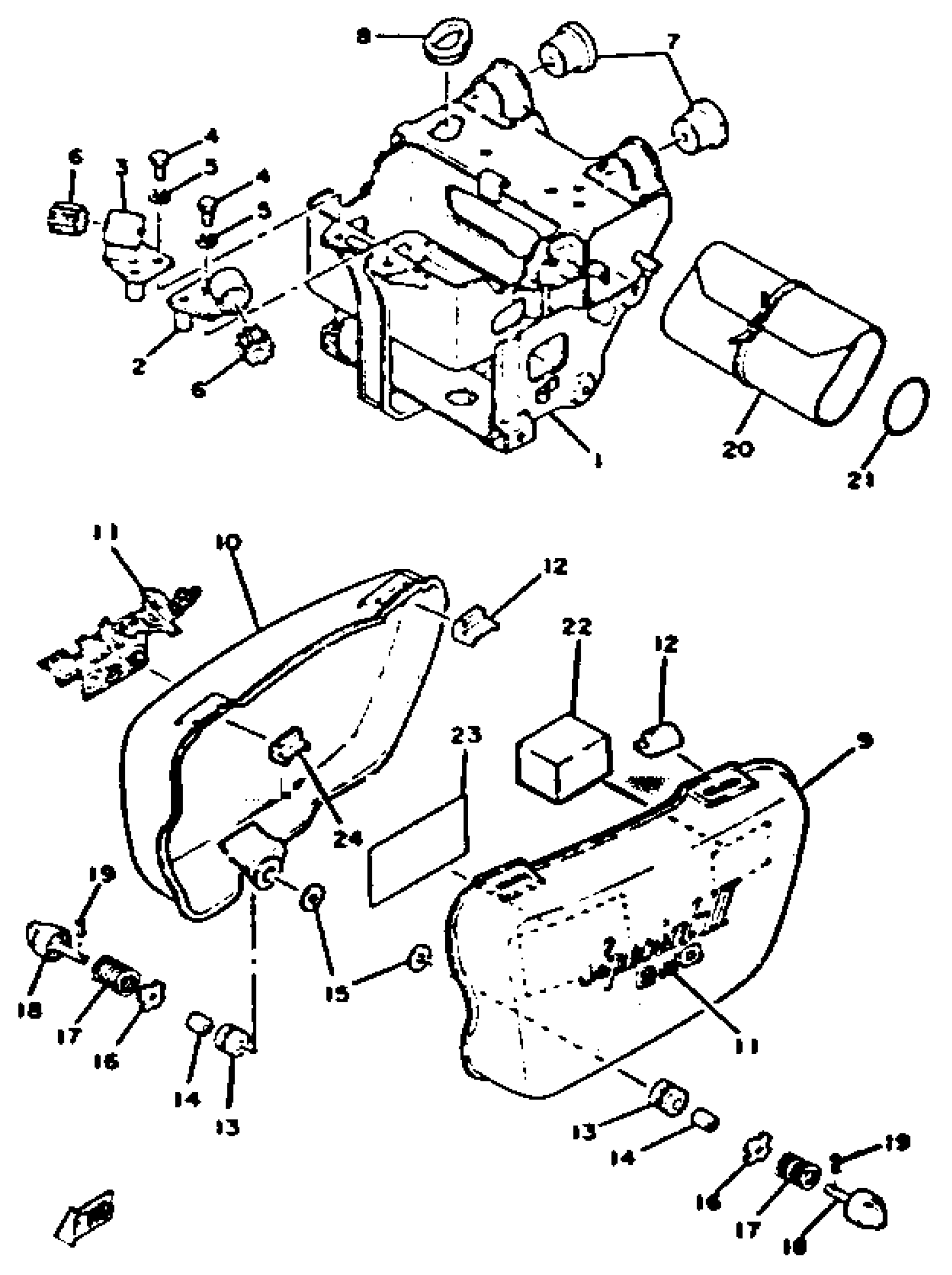

Yamaha XS650_2F (XS650_2F) 1979 SIDE COVER - BATTERY BOX Diagram

#

Description
Price

1

BOX, BATT.

(447-21170-04-33)

Unavailable

2

BRACKET, BATT BOX

447-21149-00-00

Unavailable

3

BRACKET, BATT BOX

447-21344-00-00

Unavailable

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

5

WASHER, SPRING

92995-06100-00

Unavailable

6

DAMPER, SIDE COVER

2J2-21729-00-00

$5.49

7

DAMPER

256-21747-00-00

Unavailable

8

BRACKET, BATTERY

(447-82128-00-00)

Unavailable

9

COVER, SIDE 1

(3N0-21711-00-6G)

Unavailable

10

COVER, SIDE 2

3N0-21721-00-6G

Unavailable

11

EMBLEM 1

3N0-21781-00-00

Unavailable

12

DAMPER, SIDE COVER

466-21717-00-00

$10.99

13

COLLAR

90387-07020-00

$8.49

14

COLLAR

90387-07020-00

$8.49

15

WASHER, PLATE

90201-06095-00

$8.49

16

WASHER, SPEC''L SHAP

90209-06044-00

Unavailable

17

SPRING, COMPRESSION

90501-18205-00

Unavailable

18

KNOB, SIDE COVER 1

447-21714-01-00

Unavailable

19

PIN, SPRING

91690-25016-00

Unavailable

20

TOOL KIT

3J3-W2810-00-00

Unavailable

21

O-RING

93210-40040-00

Unavailable

22

DAMPER

447-21746-00-00

Unavailable

23

PLATE, SPEC

(2F0-21683-00-00)

Unavailable

24

DAMPER, SIDE COVER

360-21717-01-00

Unavailable
