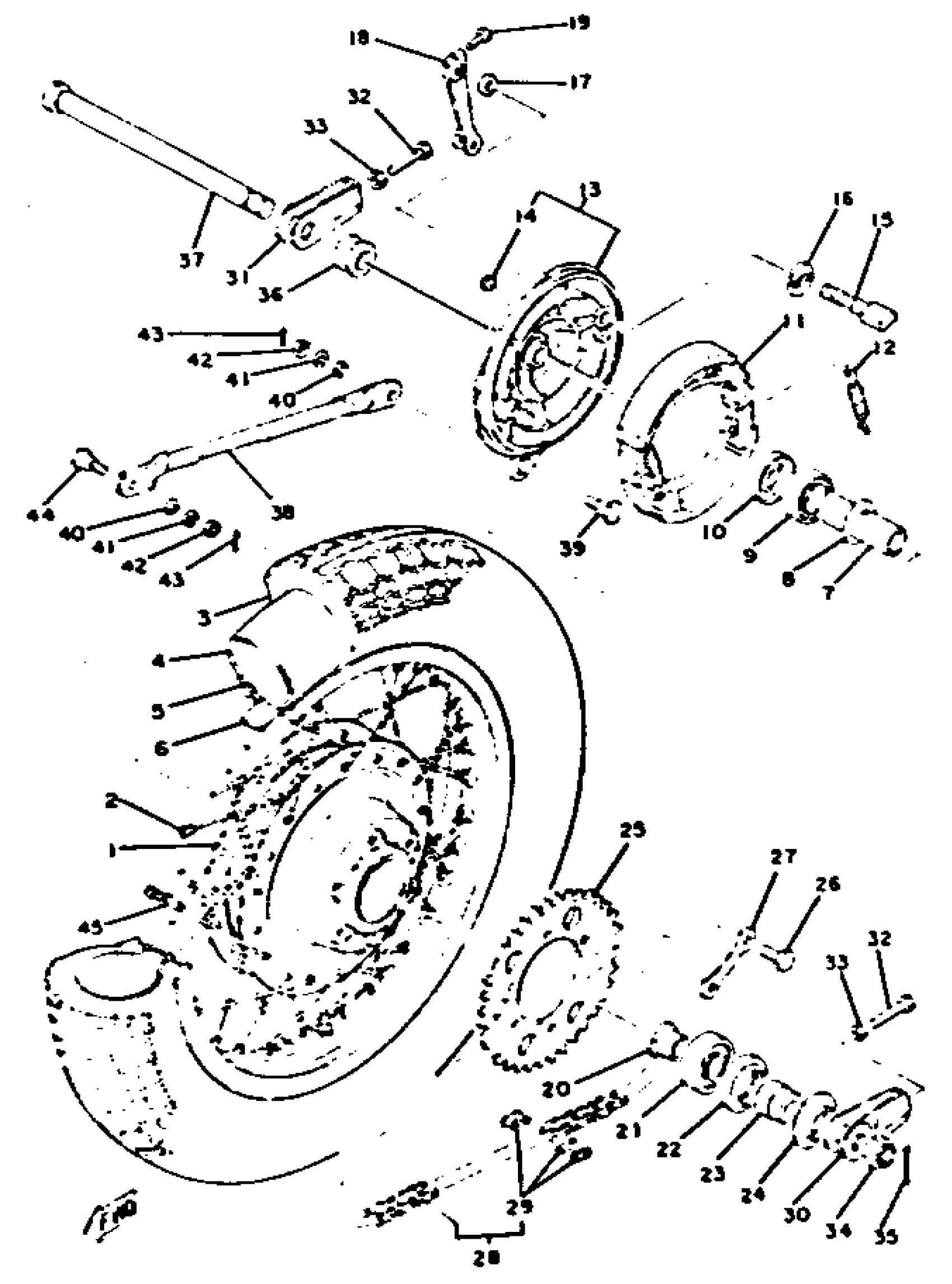

Yamaha XS650_2F (XS650_2F) 1979 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(256-25311-00-00)

Unavailable

2

SPOKE SET, REAR

2M1-25304-00-00

Unavailable

3

130/90S16 S21R

(94113-16388-00)

Unavailable

4

TUBE 130/90-16

94213-16135-00

Unavailable

5

RIM 2.75X16

(94427-16213-00)

Unavailable

6

BAND, RIM

94330-16058-00

$20.99

7

SPACER

90560-20135-00

Unavailable

8

FLANGE, SPACER

4V4-25315-00-00

Unavailable

9

BEARING(3BC)

93306-30437-00

$66.99

10

OIL SEAL (27X52X5-256)

93104-27026-00

$19.99

11

BRAKE SHOE KIT

5R3-W253E-00-00

Unavailable

12

SPRING, TENSION 2462533300

90507-20002-00

$8.49

13

BRAKE SHOE PLATE ASSEMBLY

(1T3-25026-00-00)

Unavailable

14

GROMMET (397)

90480-10068-00

$8.49

15

CAMSHAFT

1T3-25351-00-00

Unavailable

16

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

17

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

18

LEVER, CAMSHAFT

341-25355-00-00

Unavailable

19

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

20

COLLAR

90387-20166-00

Unavailable

21

BRG,R-B 6305ZZ 62MM 232G (6A5)

93306-305U0-00

Unavailable

22

OIL SEAL (35X62X9-256)

93102-35065-00

Unavailable

23

COLLAR

90387-20176-00

Unavailable

24

COVER, HUB DUST

256-25367-00-00

Unavailable

25

SPROCKET,DRIVN 34T

256-25434-20-00

Unavailable

26

BOLT (583)

90101-10303-00

Unavailable

27

WASHER, LOCK

256-25412-00-00

Unavailable

28

CHAIN 50HDS-104L

94580-05104-00

Unavailable

29

CHAIN JOINT

94680-05011-00

Unavailable

30

PULLER, CHAIN 2

341-25389-00-00

Unavailable

31

PULLER, CHAIN 1

341-25388-01-00

Unavailable

32

BOLT

90101-08060-00

Unavailable

33

NUT, HEXAGON (509)

90170-08158-00

Unavailable

34

NUT, CASTLE

90171-18043-00

Unavailable

35

PIN, COTTER

91490-40045-00

Unavailable

36

COLLAR

90387-20444-00

Unavailable

37

AXLE, WHEEL

341-25381-00-00

Unavailable

38

BAR, TENSION

2M1-25371-00-00

Unavailable

39

BOLT

90109-08338-00

Unavailable

40

.. WASHER, PLATE

92990-08600-00

Unavailable

41

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

42

NUT, HEXAGON (509)

90170-08158-00

Unavailable

43

PIN, COTTER

91490-20025-00

Unavailable

44

BOLT

90109-08374-00

Unavailable

45

BALANCER, WHEEL

3HT-25398-00-00

Unavailable
