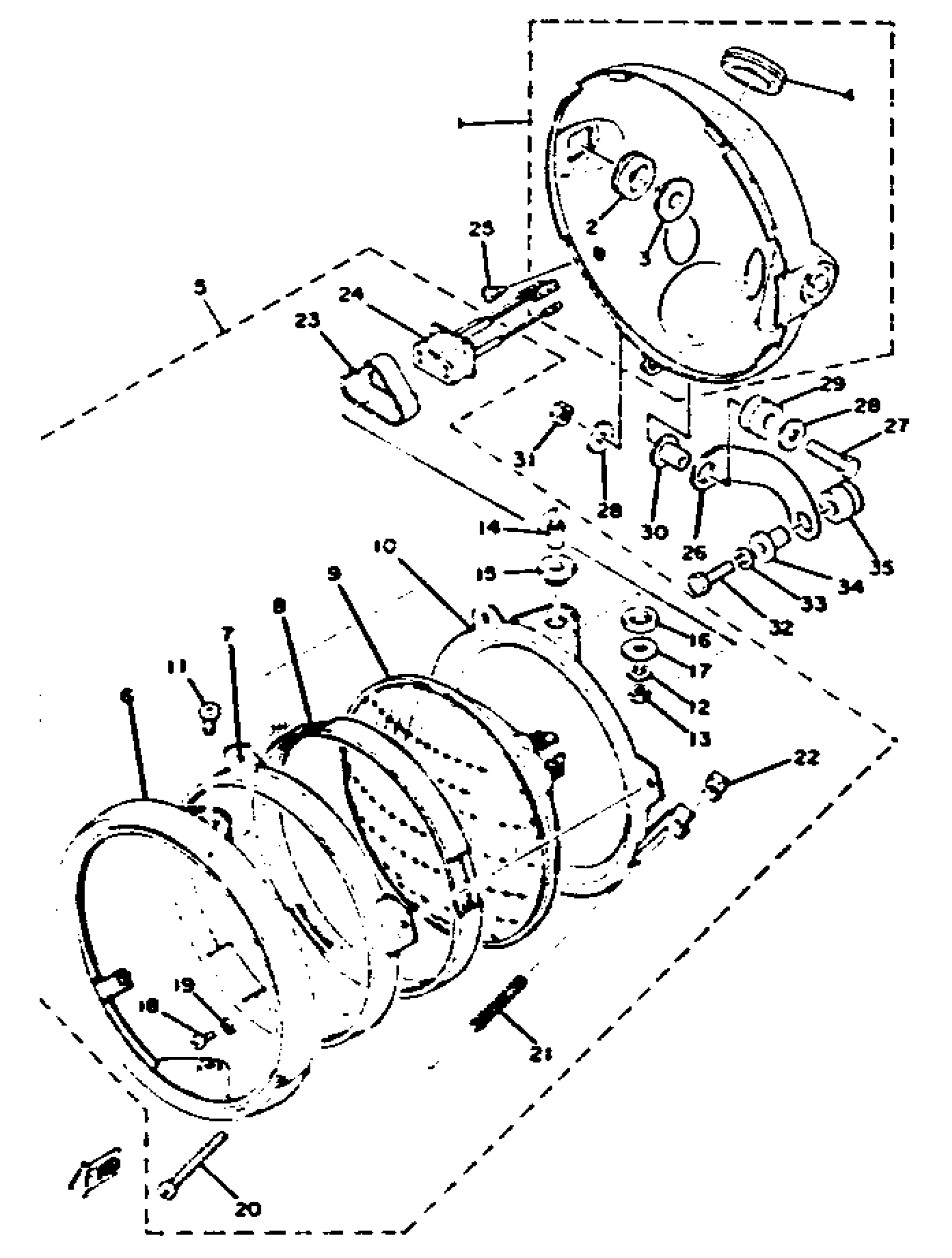

Yamaha XS650_2F (XS650_2F) 1979 HEAD LAMP Diagram
#
1
BODY ASY
584-84330-61-33
Unavailable
5
HEADLIGHT UNIT ASSEMBLY
584-84310-61-00
Unavailable
7
. RING, RETAINING
447-84395-60-00
Unavailable
8
. GASKET, LENS
447-84322-60-00
Unavailable
9
. LENS ASSEMBLY
341-84320-60-00
Unavailable
10
RING,MOUNTING
447-84394-69-00
Unavailable
14
. COLLAR 1
584-84392-60-00
Unavailable
15
. DAMPER
584-84393-60-00
Unavailable
16
. DAMPER, MNTNG RNG 1
584-84399-60-00
Unavailable
17
WASHER PLATE 803835240000
90201-05032-00
Unavailable
18
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
19
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
20
. SCREW, RIM ADJUSTING
447-84331-61-00
Unavailable
21
SPRING, COMPRESSION (ITALY)
447-84332-60-00
Unavailable
22
NUT, ADJUST
198-84334-60-00
Unavailable
23
. COVER, SOCKET
341-84397-61-00
Unavailable
24
SOCKET
371-84312-60-00
Unavailable
25
SCREW, OVAL HEAD (1A0)
90152-05005-00
Unavailable
26
STAY, HEADLIGHT 1
2M0-84318-00-00
Unavailable
27
BOLT(JF7)
97080-06030-00
Unavailable
28
WASHER, PLATE
90201-06380-00
Unavailable
29
GROMMET 839774310000
90480-14023-00
Unavailable
30
COLLAR
90387-06158-00
Unavailable
31
NUT, HEXAGON
95380-06600-00
Unavailable
32
BOLT
90101-06M27-00
Unavailable
33
WASHER, SPRING
92995-06100-00
Unavailable
34
COLLAR
90387-07549-00
Unavailable
35
GROMMET
90480-14244-00
Unavailable
