1979 Yamaha XS650_2F (XS650_2F) Handle - Wire Diagram

← All diagrams

Find the part on the Handle - Wire diagram for your 1979 Yamaha XS650_2F (XS650_2F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

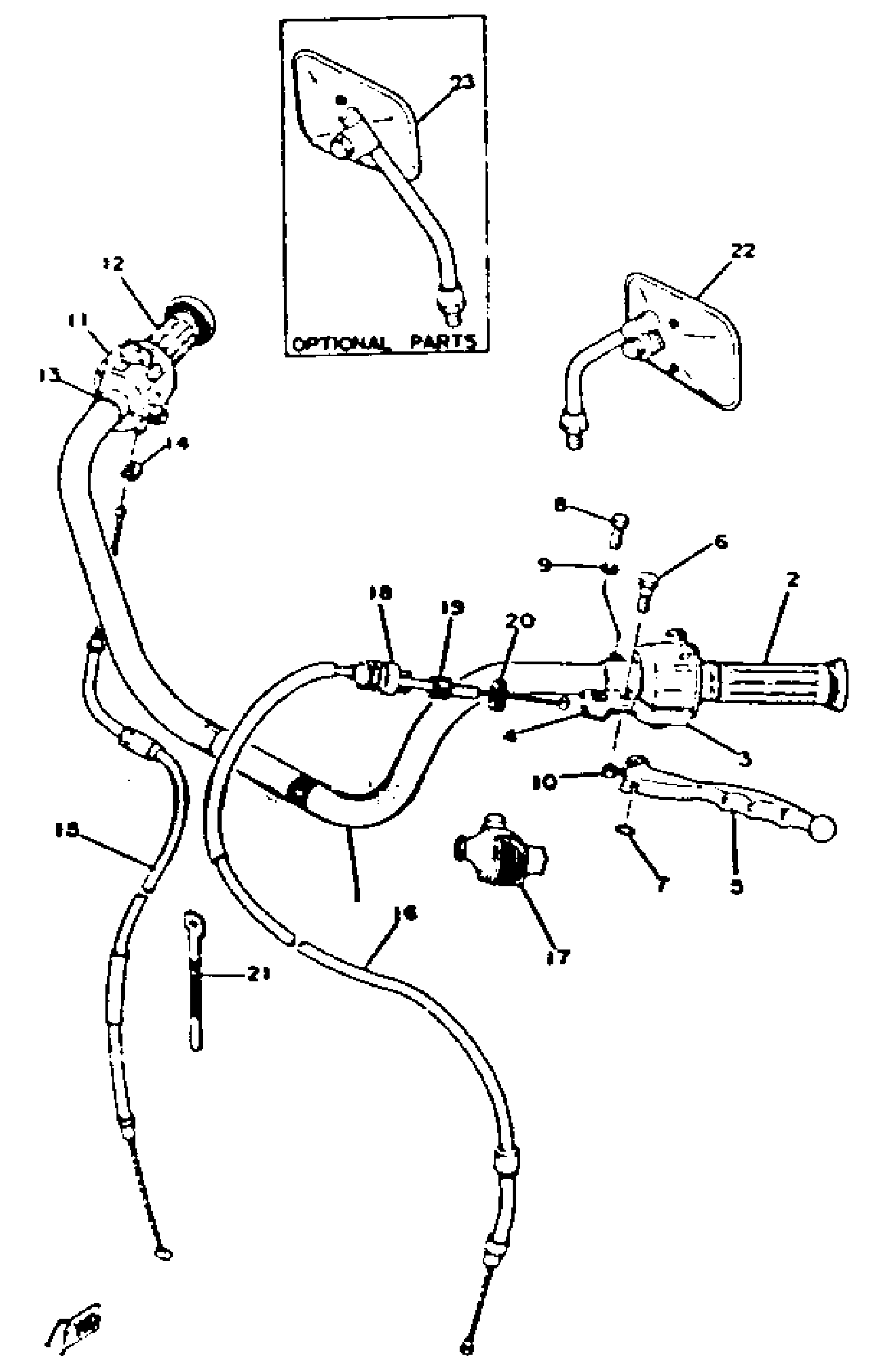

1979 Yamaha XS650_2F (XS650_2F) Handle - Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

3H3-26111-00-00

1
Out of stock

2

GRIP LH

2H7-26241-01-00

1
Out of stock

3

SWITCH, HANDLE 3

1T3-83973-00-00

1
Out of stock

4

HOLDER, LEVER (L.H) (371,447)

341-82911-00-00

—
Out of stock

5

LEVER L

2H0-83912-31-00

1
Out of stock

6

BOLT(1FG)

90109-06798-00

1
Out of stock

7

O-RING (2H7)

93210-11368-00

1
Out of stock

8

BOLT, HEXAGON

97013-06022-00

1
Out of stock

9

WASHER, SPRING

92995-06100-00

1
Out of stock

10

NUT, SELF-LOCKING

95617-06100-00

1
Out of stock

11

SWITCH, HANDLE 2LR

2L0-83975-01-98

1
Out of stock

12

GRIP ASSY

2H7-26240-01-00

1
Out of stock

13

COLLAR (2H7)

90387-22660-00

1
Out of stock

14

HOLDER,

584-26393-02-00

—
Out of stock

15

CABLE, THROTTLE 1

2M0-26311-01-00

1
Out of stock

16

WIRE, CLUTCH

3L1-26335-00-00

—
Out of stock

17

COVER, LEVER

1E6-26372-00-00

—
Out of stock

18

BOOT, WIRE

1E6-26342-00-00

—
Out of stock

19

BOLT

90123-08002-00

—
Out of stock

20

NUT

90179-08030-00

—
Out of stock

21

BAND, SWITCH CORD

437-83936-01-00

—
Out of stock

22

REAR VIEW MIRROR ASSY (LEFT)

2G2-26290-11-00

—
Out of stock

23

REAR VIEW MIRROR ASSY (RIGHT)

2G2-26290-01-00

—
Out of stock
