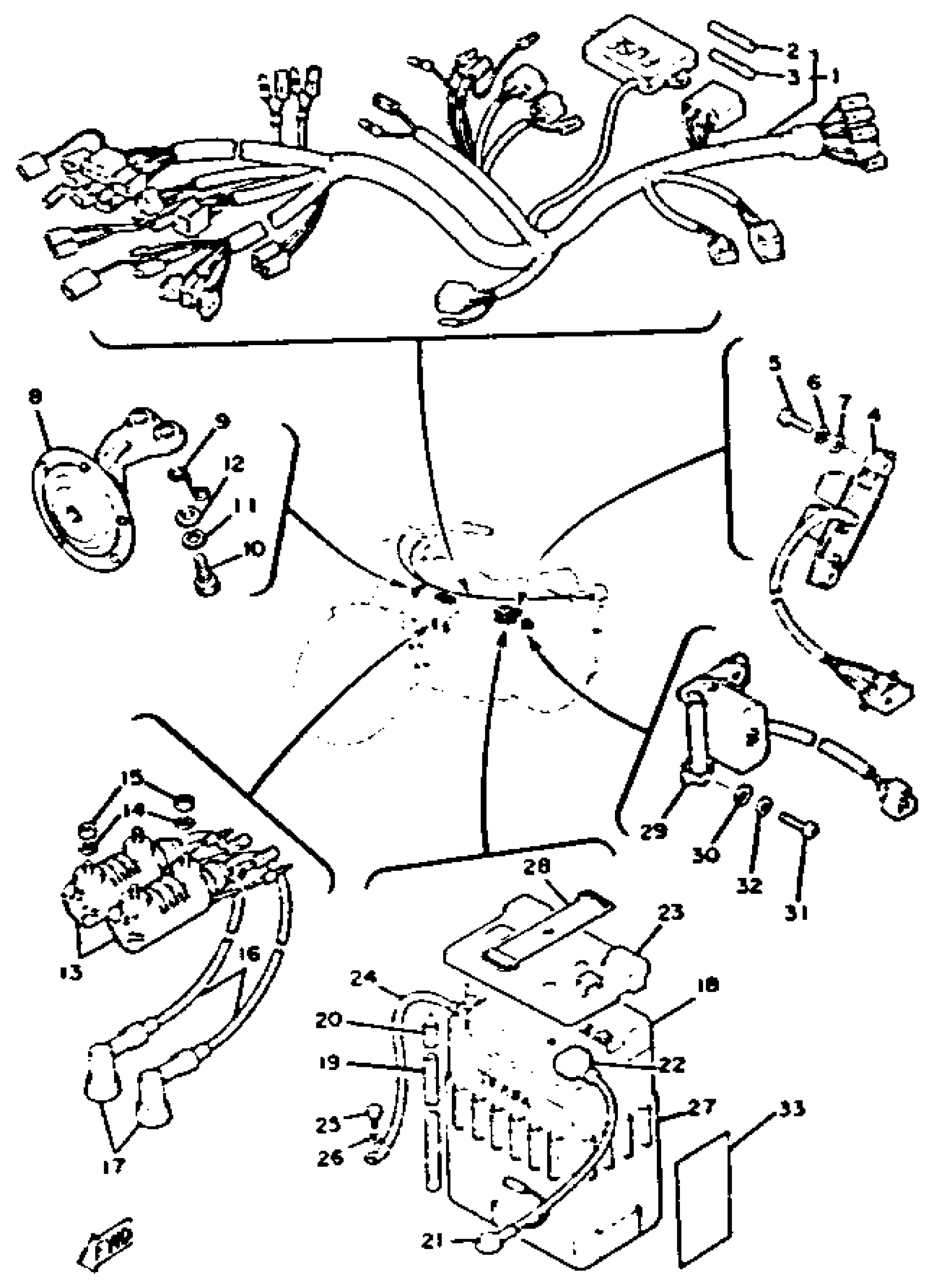

Yamaha XS650_2F (XS650_2F) 1979 ELECTRICAL 1 Diagram

#

Description
Price

1

WIRE HARNESS ASSEMBLY

2M0-82590-51-00

Unavailable

2

FUSE

1A0-82161-00-00

$7.99

3

FUSE

1A0-82151-00-00

$16.49

4

RELAY ASSEMBLY

2F0-81950-50-00

Unavailable

5

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

6

WASHER, SPRING

92995-06100-00

Unavailable

7

WASHER, PLATE

90201-06M08-00

Unavailable

8

HORN

3N0-83371-50-00

Unavailable

9

CLAMP

(90465-20138-00)

Unavailable

10

BOLT, HEXAGON

97017-08025-00

$10.49

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

WASHER, PLATE (4W3)

90201-086A3-00

$8.49

13

IGNITION COIL ASSEMBLY

254-82310-60-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

CORD, HIGH TENSION 1

4X7-82341-00-00

Unavailable

17

PLUG CAP ASSY

4BP-82370-01-00

Unavailable

17

PLUG CAP ASSY

7KA-82370-00-00

Unavailable

18

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

19

HOSE (L1500)

90445-084J0-00

Unavailable

20

BUSH, SPEC''L NYLON

(90386-07043-00)

Unavailable

21

WIRE, PLUS LEAD

447-82115-01-00

Unavailable

22

COVER, LEAD WIRE

447-82119-00-00

Unavailable

23

COVER, BATTERY

2M0-82129-00-00

Unavailable

24

WIRE,MINUS LEAD

2H7-82116-00-00

Unavailable

25

BOLT (661)

97013-06012-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

SEAT, BATTERY

447-82122-00-00

Unavailable

28

BAND,BATTERY

7H3-82131-00-00

Unavailable

29

VOLTAGE REGULATOR ASSEMBLY

1L9-81910-50-00

Unavailable

30

WASHER, PLATE

90201-06M08-00

Unavailable

31

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

32

WASHER, SPRING

92995-06100-00

Unavailable

33

UNAVAILABLE IN PRICE BOOK (118-82141-09)

L1T-82141-09-00

Unavailable
