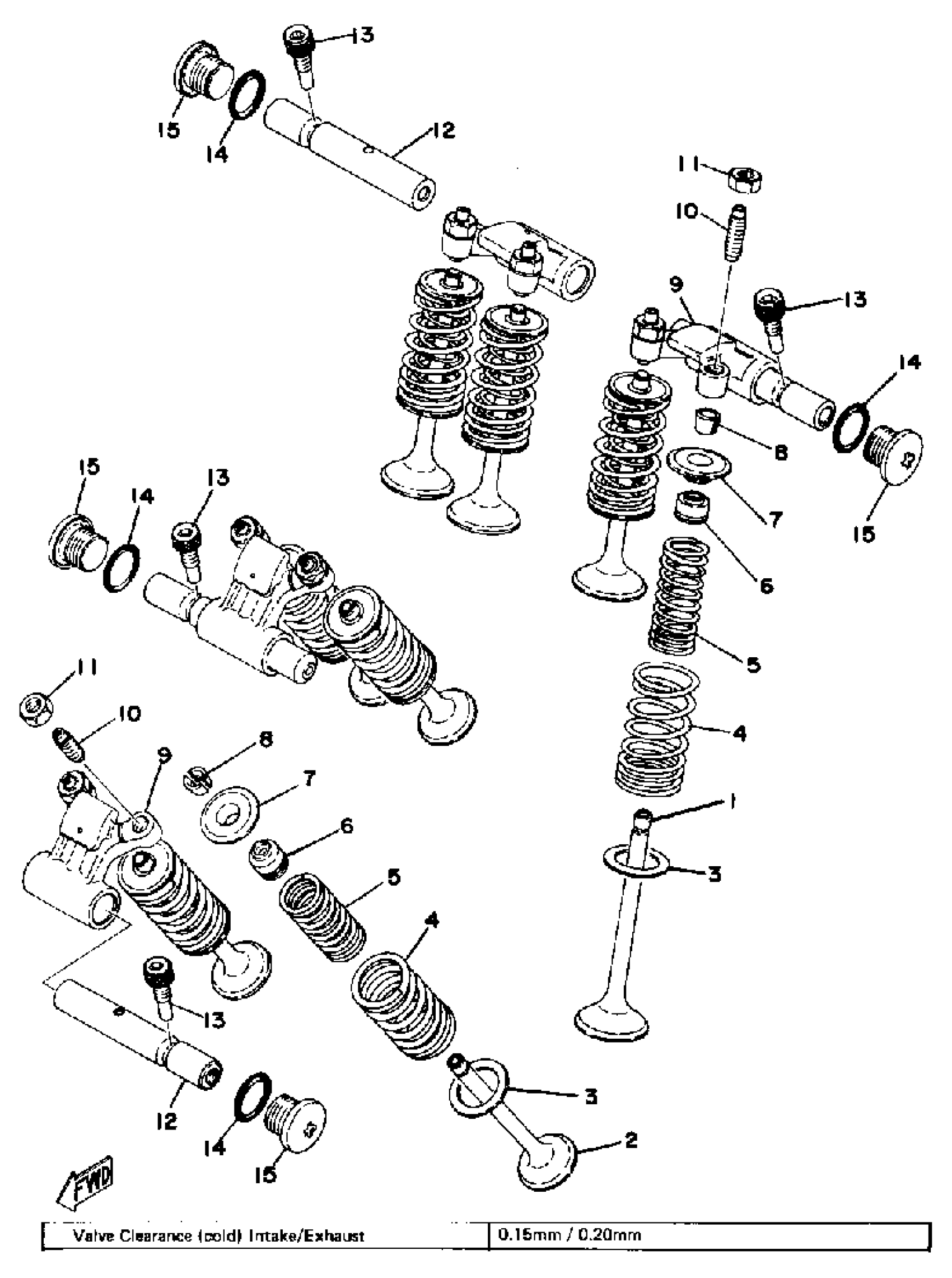

Yamaha XS500E (XS500) 1978 VALVE ROCKER ARM Diagram

#

Description

Price

1

VALVE, INTAKE

371-12111-00-00

Unavailable

2

VALVE, EXHAUST#1

371-12121-01-00

Unavailable

3

SEAT, VALVE SPRING

(371-12116-01-00)

Unavailable

4

SPRING, COMPRESSION

(90501-32211-00)

Unavailable

5

SPRING, COMPRESSION (371-12113-01)

90501-20210-00

Unavailable

6

SEAL, VALVE STEM

51Y-12119-00-00

$6.99

7

RETAINER, VALVE SPR

371-12117-03-00

Unavailable

8

COTTER, VALVE

371-12118-02-00

Unavailable

9

ARM, VALVE ROCKER

1A8-12151-00-00

Unavailable

10

SCREW, VALVE ADJUSTING

371-12159-00-00

Unavailable

11

NUT HEXAGON 371121580000

90170-06128-00

$8.49

12

SHAFT, ROCKER

(371-12156-00-00)

Unavailable

13

BOLT

(90109-06099-00)

Unavailable

14

O-RING (341)

93210-15171-00

$7.49

15

PLUG, ROCKER

(99999-01465-00)

Unavailable
