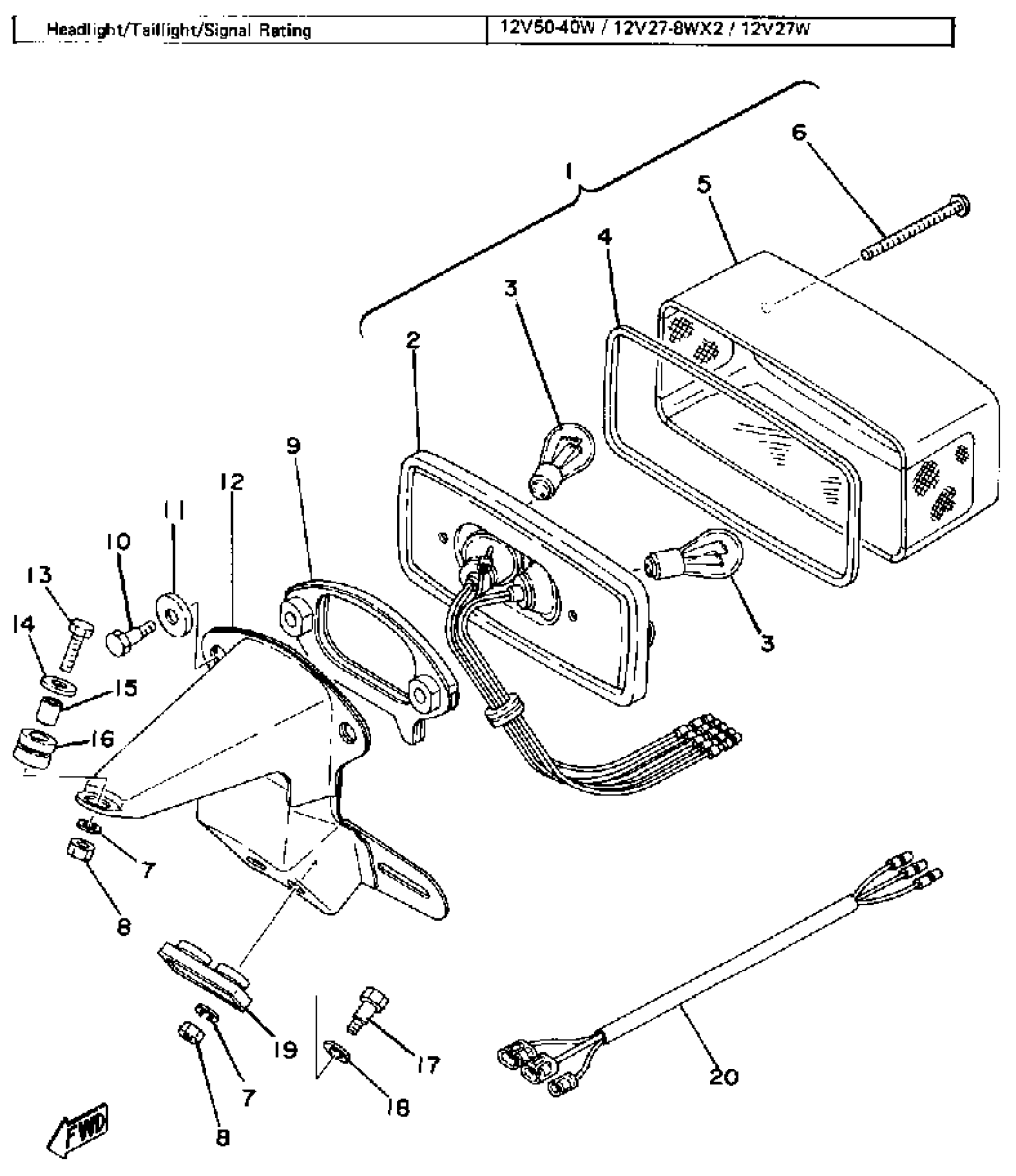

Yamaha XS500E (XS500) 1978 TAIL LAMP Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

2A2-84710-60-00

Unavailable

2

. BASE, TAILLIGHT

(1A0-84711-60-00)

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

4

. GASKET, TAIL LENS

1A0-84723-60-00

Unavailable

5

. LENS, TAILLIGHT

1A0-84721-60-00

Unavailable

6

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

7

WASHER, SPRING

92995-06100-00

Unavailable

8

NUT, HEXAGON

95380-06600-00

Unavailable

9

SHEET, BASE

1A0-84712-60-00

Unavailable

10

BOLT, TAILLAMP

1A0-84726-60-00

Unavailable

11

WASHER, SPECIAL

2H7-84754-00-00

$10.99

12

BRACKET, LICENSE 000

(1A0-84751-60-93)

Unavailable

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

WASHER

90209-06012-00

$5.60

15

COLLAR

90387-07020-00

$8.49

16

GROMMET 839774310000

90480-14023-00

Unavailable

17

BOLT 168217380000

90109-06017-00

Unavailable

18

WASHER, PLAIN

92990-08200-00

Unavailable

19

DAMPER

214-84553-01-00

Unavailable

20

CORD, TAILLIGHT

8L1-84727-00-00

Unavailable
