Description

Price

1

AXLE, DRIVE GEAR

(371-17861-00-00)

Unavailable

2

GEAR, PRIMARY

371-17851-02-00

Unavailable

3

KEY, STRAIGHT

90282-03003-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

WASHER, SPRING

92995-06100-00

Unavailable

6

NUT, HEXAGON

95380-06600-00

Unavailable

7

GEAR, DRIVE

(1A8-17831-00-00)

Unavailable

8

CIRCLIP

99006-10600-00

$9.49

9

STOPPER

(278-17812-00-00)

Unavailable

10

SCREW, FLAT

98707-05012-00

$1.71

11

GEAR, KICK IDLE

(371-15651-01-00)

Unavailable

12

WASHER WAVE 137156430000

90206-15021-00

Unavailable

13

SHIM, MAIN AXLE (1.0)

164-17417-00-10

$7.99

14

CIRCLIP(1AR)

99009-15400-00

$8.49

15

OIL SEAL (7X13X4-256)

93104-07036-00

Unavailable

16

HOUSING, TACH GEAR

(1A8-17811-00-00)

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

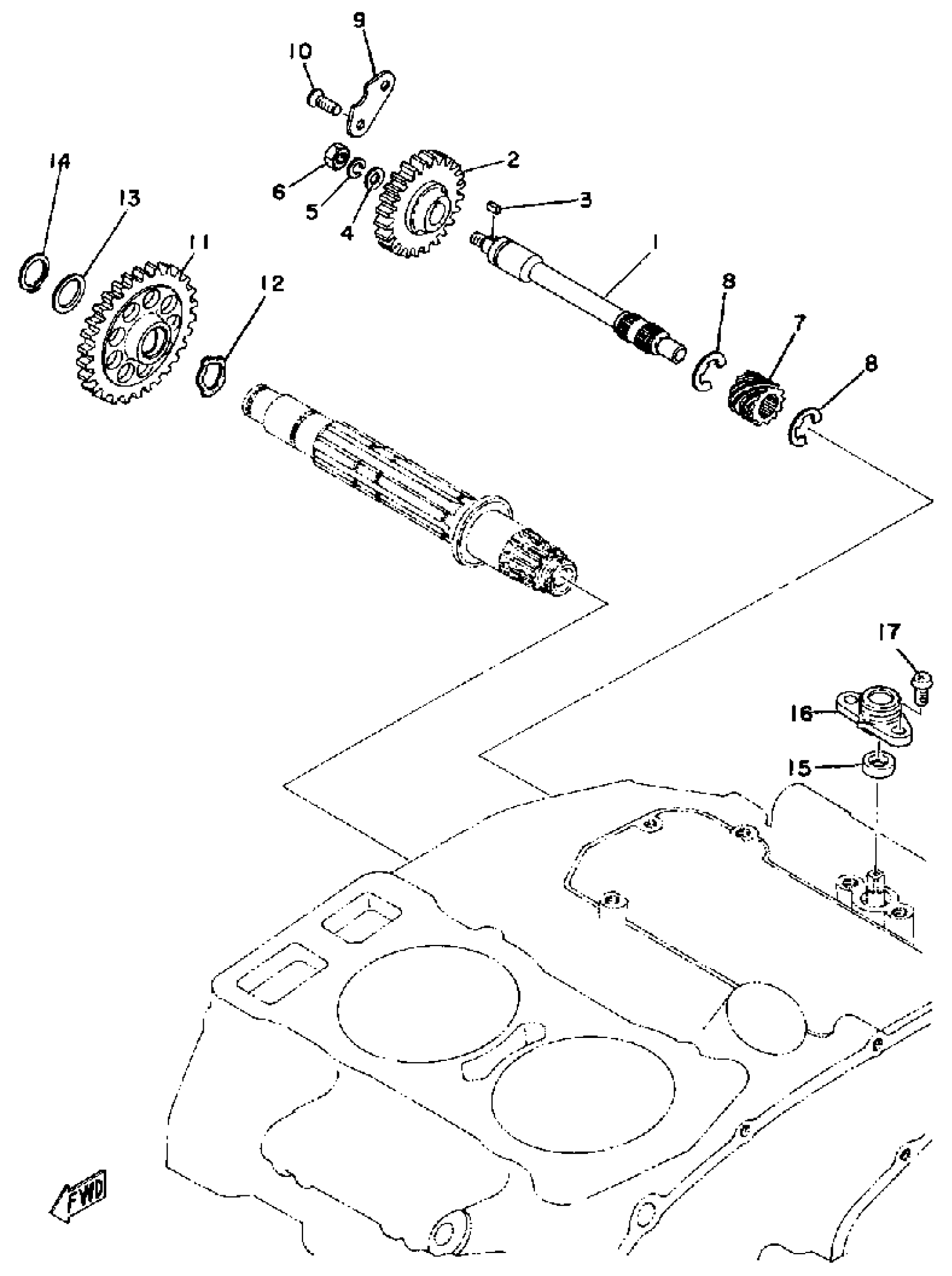

Yamaha XS500E (XS500) 1978 TACHOMETER GEAR Diagram

AXLE, DRIVE GEAR

GEAR, PRIMARY

KEY, STRAIGHT

WASHER, PLAIN (646)

WASHER, SPRING

NUT, HEXAGON

GEAR, DRIVE

CIRCLIP

STOPPER

SCREW, FLAT

GEAR, KICK IDLE

WASHER WAVE 137156430000

SHIM, MAIN AXLE (1.0)

CIRCLIP(1AR)

OIL SEAL (7X13X4-256)

HOUSING, TACH GEAR

SCREW, PAN
