Description

Price

1

SPROCKET, STARTER 1

371-15518-00-00

Unavailable

2

SHAFT 1

(371-15521-00-00)

Unavailable

3

BEARING(1FF)

93306-00519-00

$36.99

4

CIRCLIP(48Y)

99009-47500-00

$9.49

5

OIL SEAL, SD-TYPE

(93102-25113-00)

Unavailable

6

SPROCKET, STR IDLE

(371-15525-00-00)

Unavailable

7

CHAIN

94582-19082-00

Unavailable

8

STARTER WHEEL ASSEMBLY

371-15520-02-00

Unavailable

9

STR CLUTCH OTR ASSEMBLY

(371-15580-02-00)

Unavailable

10

PIN, DOWEL (371)

93615-15114-00

Unavailable

11

CAP, STARTER CLUTCH

1J7-15583-01-00

$18.49

12

. SPRING, COMPRESSION (341-15584-02)

90501-03298-00

Unavailable

13

BOLT, SOCKET

91317-08016-00

$8.49

14

PIN, DOWEL

93605-10090-00

$8.49

15

HOLDER, STRTG MRTR

(371-15564-00-00)

Unavailable

16

SCREW PAN HEAD

98580-06010-00

Unavailable

17

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

18

SCREW PAN HEAD

98580-06020-00

Unavailable

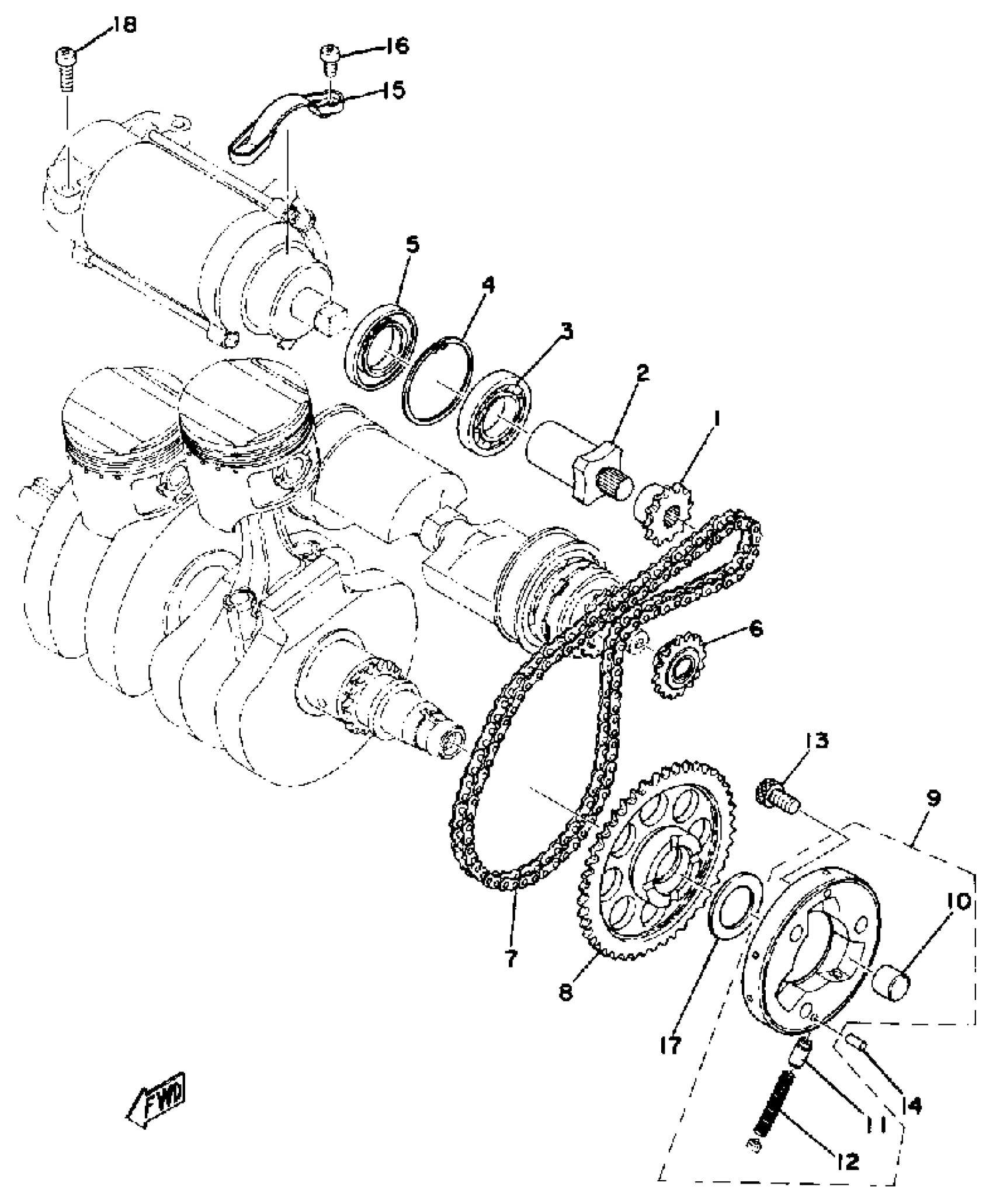

Yamaha XS500E (XS500) 1978 STARTING MOTOR UNIT Diagram

SPROCKET, STARTER 1

SHAFT 1

BEARING(1FF)

CIRCLIP(48Y)

OIL SEAL, SD-TYPE

SPROCKET, STR IDLE

CHAIN

STARTER WHEEL ASSEMBLY

STR CLUTCH OTR ASSEMBLY

PIN, DOWEL (371)

CAP, STARTER CLUTCH

. SPRING, COMPRESSION (341-15584-02)

BOLT, SOCKET

PIN, DOWEL

HOLDER, STRTG MRTR

SCREW PAN HEAD

WASHER, PLATE(1FK)

SCREW PAN HEAD
