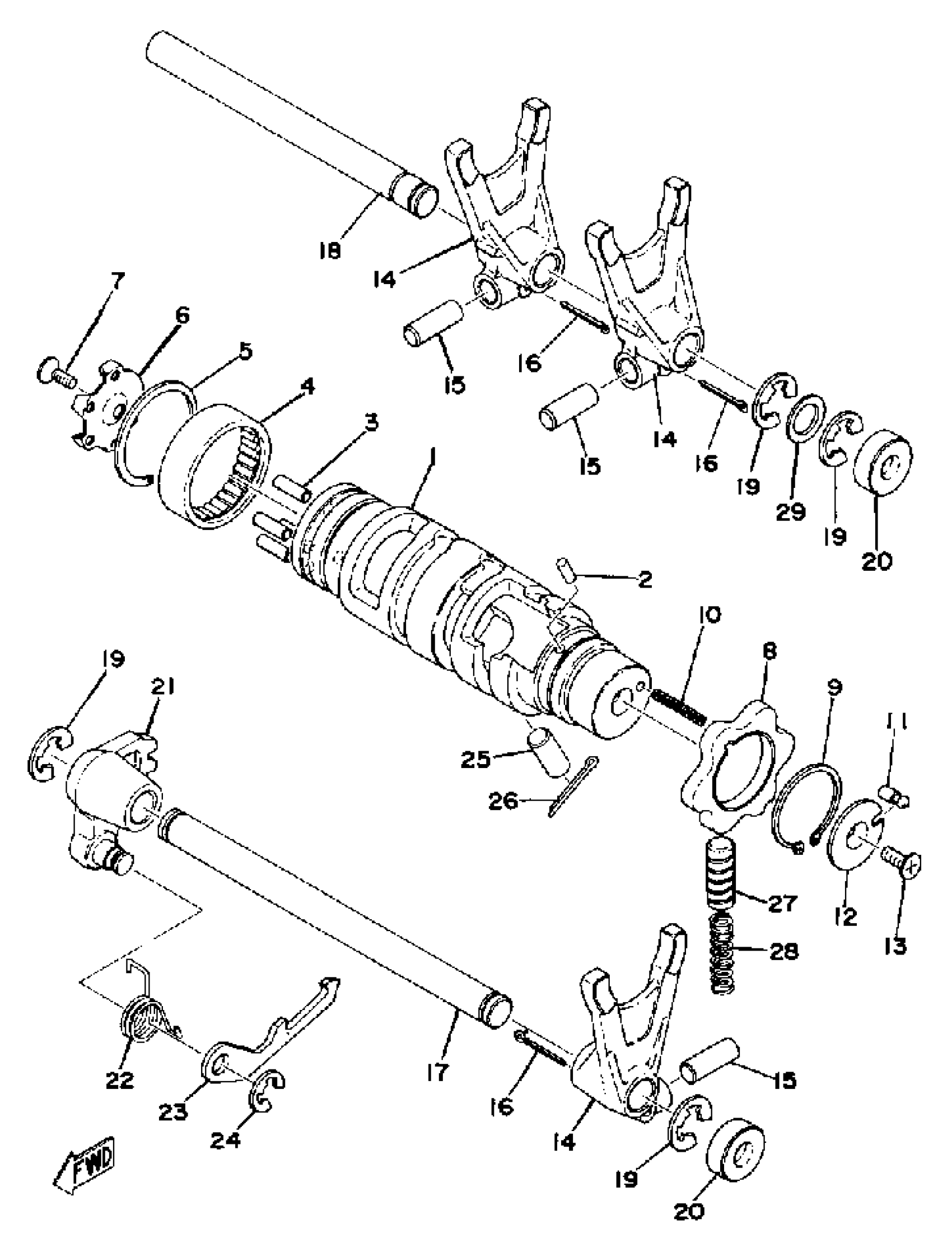

Yamaha XS500E (XS500) 1978 SHIFTER 1 Diagram

#

Description
Price

1

CAM, SHIFT

(371-18541-00-00)

Unavailable

2

PIN, DOWEL (278)

93604-08071-00

$8.49

3

PIN, DOWEL(4SS)

93604-18251-00

Unavailable

4

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

$33.99

5

CIRCLIP (371)

93440-34025-00

$7.49

6

PLATE, SIDE 1

(371-18561-00-00)

Unavailable

7

SCREW, FLAT

98707-05012-00

$1.71

8

PLATE, STOPPER

360-18141-01-00

Unavailable

9

CIRCLIP(4A6)

99009-30400-00

$8.49

10

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

11

POINT, NEUTRAL

4UN-18542-00-00

$8.99

12

PLATE, SIDE 2

278-18566-00-00

Unavailable

13

SCREW, FLAT

98707-05012-00

$1.71

14

FORK, SHIFT 1

(371-18511-00-00)

Unavailable

15

PIN, STRAIGHT

90250-08017-00

Unavailable

16

PIN, COTTER(6L5)

91490-25030-00

Unavailable

17

BAR, SHIFT FORK GUIDE 1

278-18531-00-00

Unavailable

18

BAR, SHIF FRK GDE 2

(278-18535-00-00)

Unavailable

19

CIRCLIP

99006-10600-00

Unavailable

20

PLUG(3AJ)

90338-22207-00

Unavailable

21

LEVER, SHIFT 2

371-18122-01-00

Unavailable

22

SPRING, TORSION

(90508-08009-00)

Unavailable

23

LEVER, SHIFT 3

(371-18151-00-00)

Unavailable

24

CIRCLIP

99080-07600-00

Unavailable

25

PIN, STRAIGHT

(90250-08022-00)

Unavailable

26

PIN, COTTER(6L5)

91490-25030-00

Unavailable

27

STOPPER, CAM

278-18547-02-00

Unavailable

28

SPRING, COMPRESSION

90501-10196-00

Unavailable

29

WASHER, PLATE

(90201-12161-00)

Unavailable
