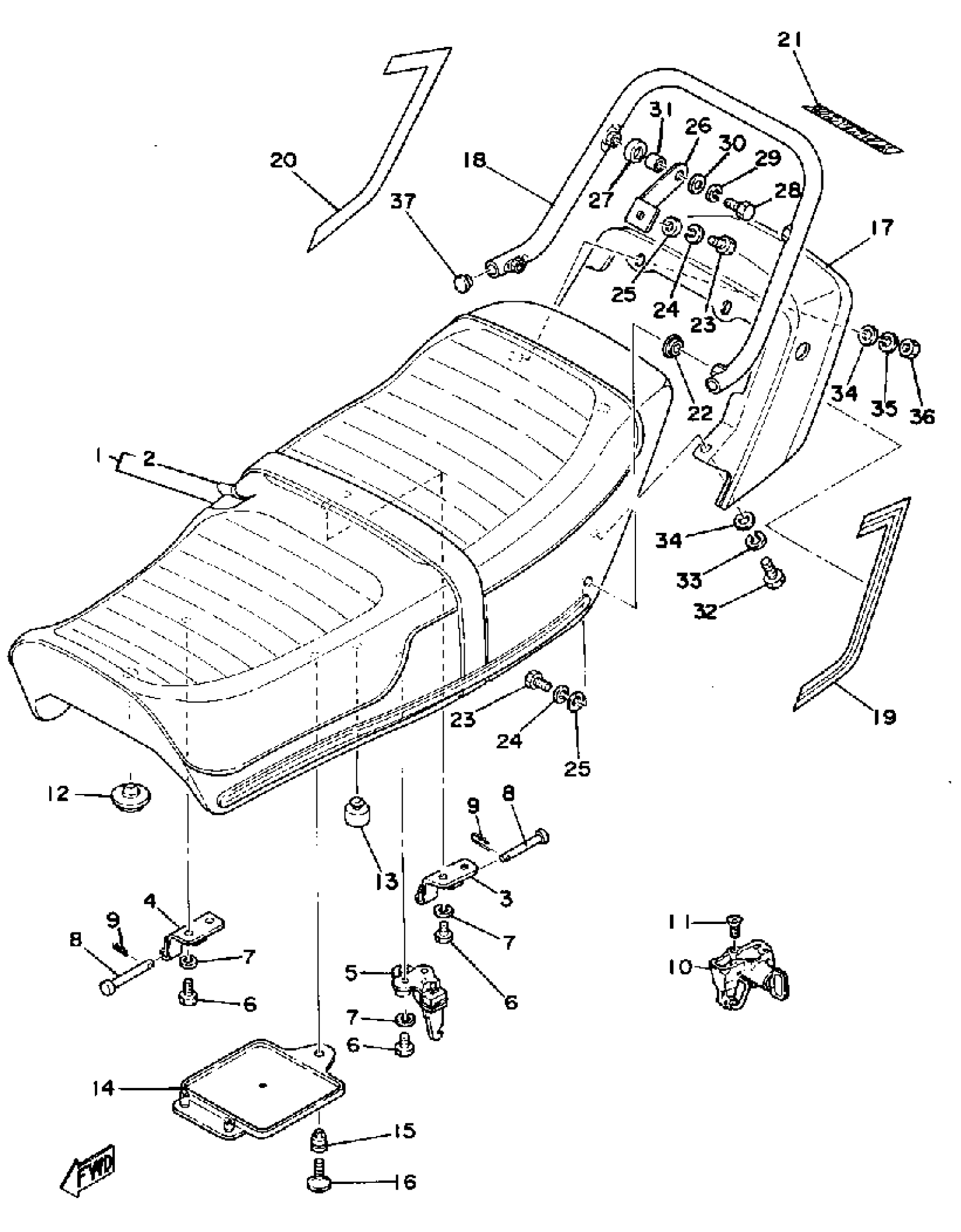

Yamaha XS500E (XS500) 1978 SEAT Diagram
#
1
DOUBLE SEAT ASSEMBLY
(2F1-W2472-00-00)
Unavailable
2
. COVER, DOUBLE SEAT
2F1-24731-00-00
Unavailable
3
HINGE, SEAT
307-24726-00-33
Unavailable
5
BRACKET, SEAT
371-24728-02-00
Unavailable
7
WASHER, SPRING
92995-06100-00
Unavailable
10
SEAT LOCK ASSEMBLY
584-24705-00-00
Unavailable
14
LID
2R6-28185-00-00
Unavailable
15
GROMMET (341-28187-00)
90480-06007-00
Unavailable
16
PLUNGER
341-28188-00-00
Unavailable
17
COVER, TAIL 000
(1J3-24756-00-R7)
Unavailable
18
HANDLE, SEAT 000
(1J3-24761-00-00)
Unavailable
19
GRAPHIC, TAIL COVER
(1J3-24757-00-00)
Unavailable
20
GRAPHIC, TAIL COVER
(1J3-24767-00-00)
Unavailable
21
EMBLEM, YAMAHA
99245-00100-00
Unavailable
22
COVER, SEAT HANDLE
1T4-24796-00-00
Unavailable
23
BOLT(JA9)
90101-08691-00
Unavailable
24
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
25
.. WASHER, PLATE
92990-08600-00
Unavailable
26
BRACKET, SEAT 000
(1J3-24738-00-00)
Unavailable
26
BRACKET, SEAT 000
(1J3-24748-00-00)
Unavailable
27
COVER 000
(1J3-24796-00-00)
Unavailable
28
BOLT, HEXAGON
97017-08025-00
Unavailable
29
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
30
.. WASHER, PLATE
92990-08600-00
Unavailable
31
COLLAR
(90387-09629-00)
Unavailable
32
BOLT, HEXAGON
97013-05012-00
Unavailable
33
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
34
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
35
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
36
NUT, HEXAGON (663)
95380-05600-00
Unavailable
37
GROMMET, SEAT HANDLE
1J3-24742-00-00
Unavailable
