Description

Price

1

DISC, BRAKE

1J3-25831-50-00

Unavailable

2

WASHER, LOCK

1J3-25834-01-00

$6.99

3

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

4

CALIPER ASSEMBLY

(1J3-25810-54-00)

Unavailable

5

BRAKE PAD KIT

4K0-W0045-02-00

$56.99

6

BOOT, CALIPER

1J3-25917-00-00

Unavailable

7

. SLEEVE, CALIPER

1J3-25838-00-00

Unavailable

8

. BOLT, WASHER BASED

90105-08145-00

Unavailable

9

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

10

CALIPER SEAL KIT

1J3-W0047-00-00

$56.99

11

. CAP, INDICATOR

1J3-25845-01-00

Unavailable

12

BOLT

90109-08454-00

Unavailable

13

NUT, HEXAGON (509)

90170-08158-00

$2.34

14

WASHER, WAVE (17W)

90206-12074-00

$9.49

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

.. WASHER, PLATE

92990-08600-00

Unavailable

17

PIN, COTTER

91490-20025-00

Unavailable

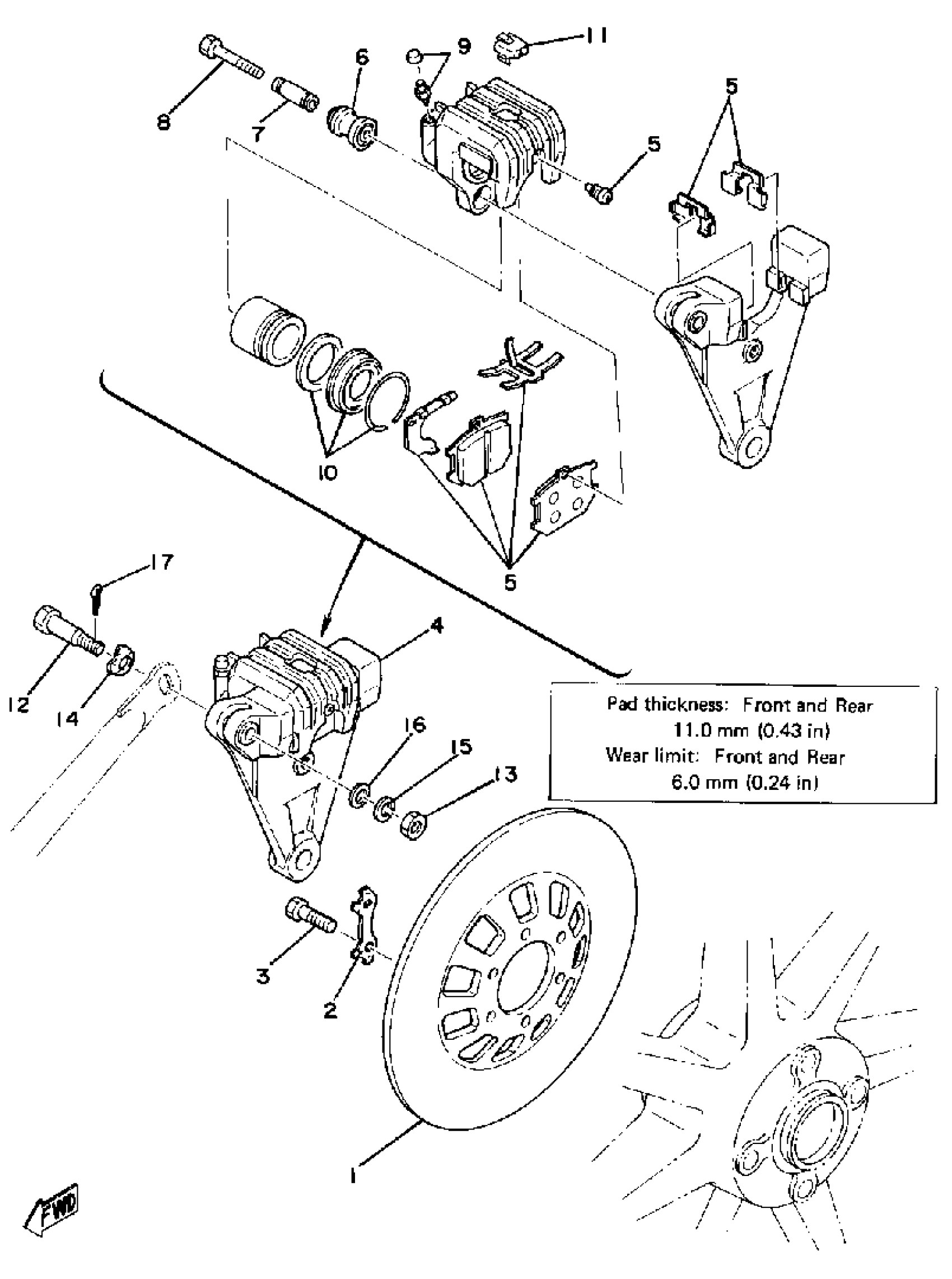

Yamaha XS500E (XS500) 1978 REAR DISC BRAKE CALIPER Diagram

DISC, BRAKE

WASHER, LOCK

BOLT, HEXAGON (1L9)

CALIPER ASSEMBLY

BRAKE PAD KIT

BOOT, CALIPER

. SLEEVE, CALIPER

. BOLT, WASHER BASED

BLEED SCREW KIT

CALIPER SEAL KIT

. CAP, INDICATOR

BOLT

NUT, HEXAGON (509)

WASHER, WAVE (17W)

YBS67-8 WASHER, SPRING

.. WASHER, PLATE

PIN, COTTER
