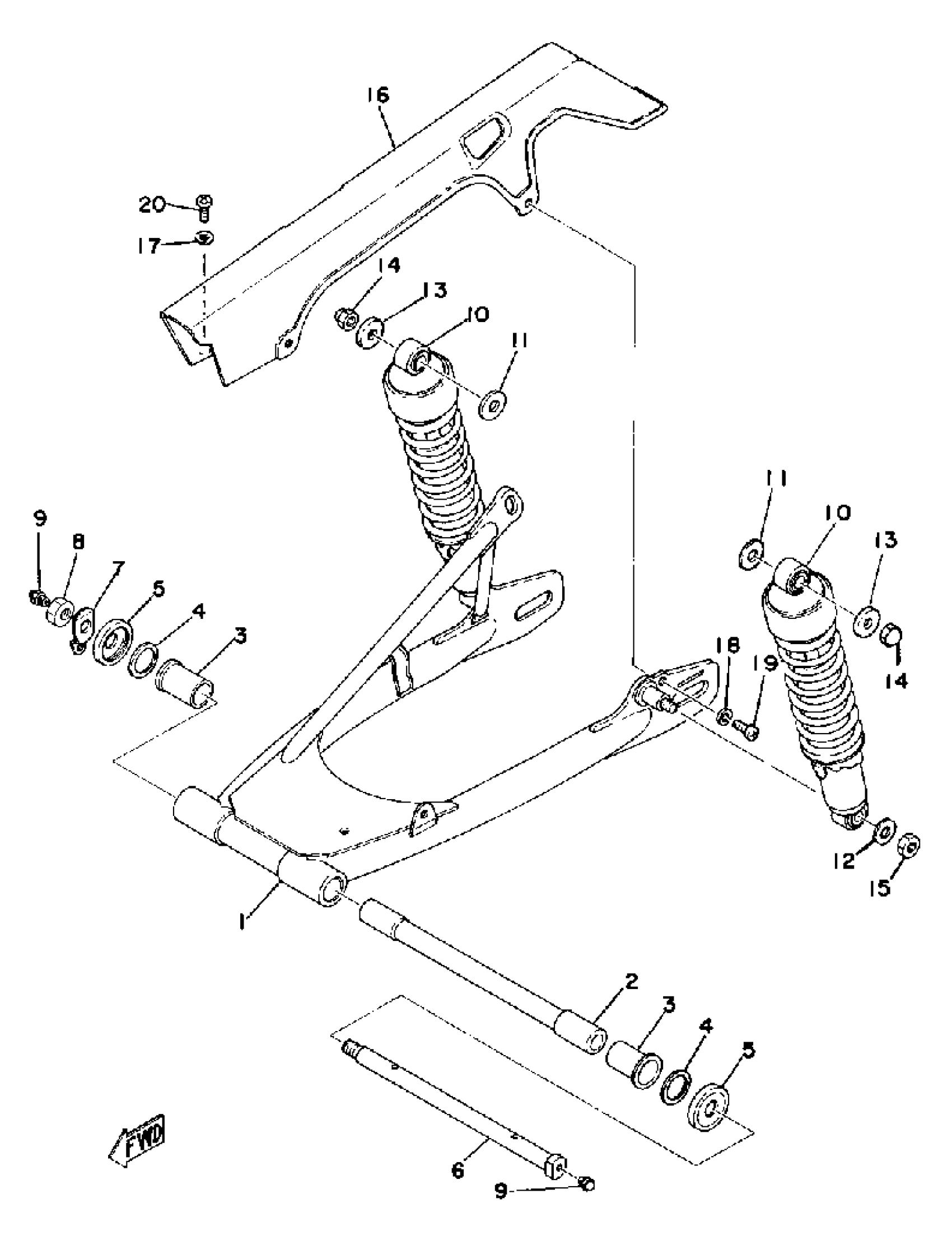

Yamaha XS500E (XS500) 1978 REAR ARM REAR CUSHION Diagram

#

Description
Price

1

REAR ARM

(1J3-22110-00-33)

Unavailable

2

BUSH

341-22184-00-00

Unavailable

3

BUSH (5A9)

90386-22102-00

$40.99

4

SHIM,REAR ARM

240-22127-00-00

$6.99

5

COVER, THRUST

322-22128-01-00

$35.99

6

SHAFT, PIVOT

371-22141-00-00

Unavailable

7

WASHER, LOCK

(90215-14104-00)

Unavailable

8

NUT

90170-14800-00

$4.14

9

NIPPLE, GREASE

93700-06M03-00

Unavailable

10

SHK/ABS ASSEMBLY, REAR

(1J3-22210-22-00)

Unavailable

11

WASHER, PLATE (3X3)

90201-15797-00

$9.49

12

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

13

WASHER PLATE 341222430000

90201-10142-00

$4.82

14

NUT, CAP (371)

90176-10009-00

$7.49

15

NUT(3BM)

95314-10600-00

$2.39

16

CHAIN CASE ASSEMBLY

1A8-22310-00-00

Unavailable

17

. WASHER, PLATE

90201-06050-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

20

SCREW, PAN

98507-06014-00

Unavailable
