OIL PUMP OIL CLEANER

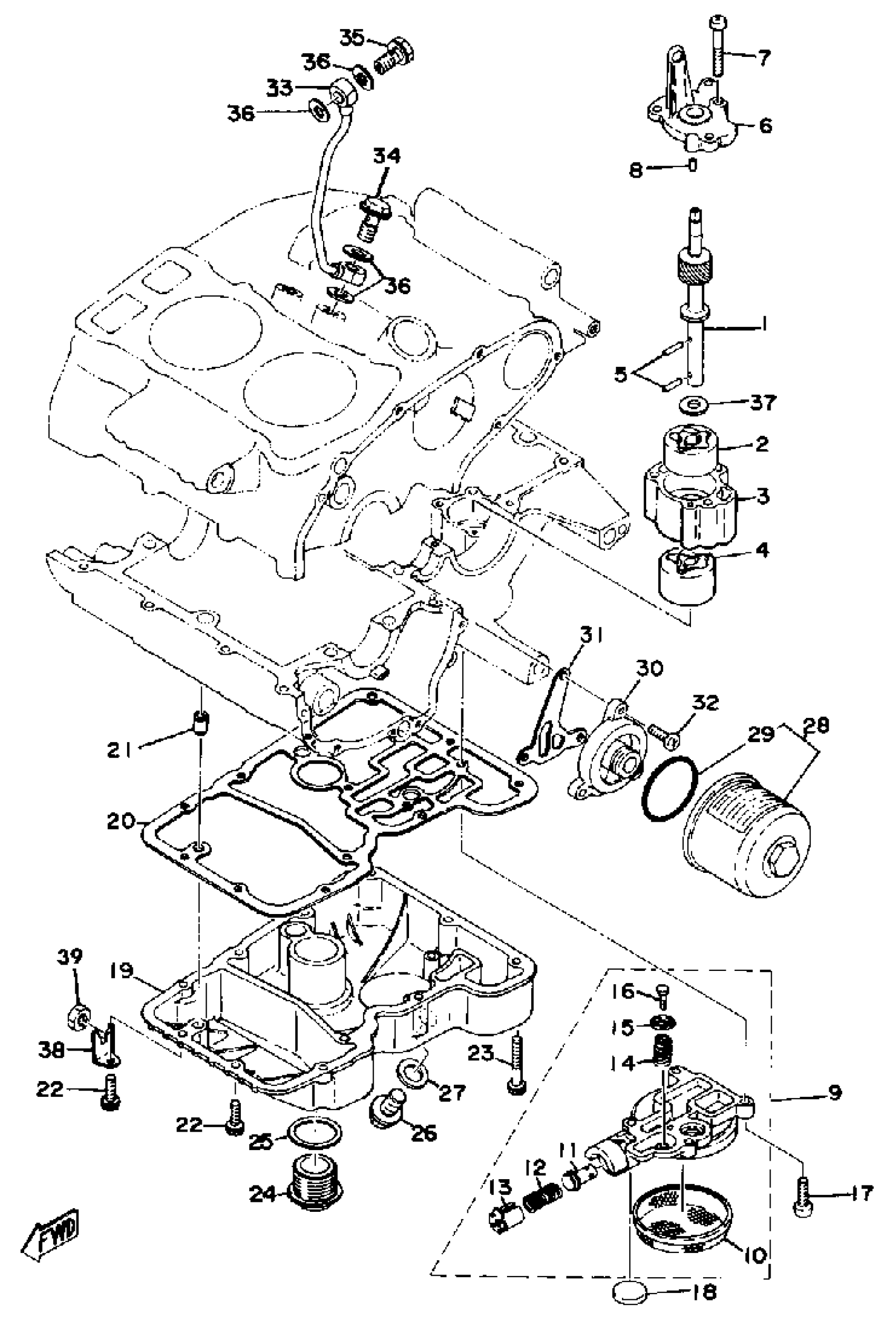

Yamaha XS500E (XS500) 1978 OIL PUMP OIL CLEANER Diagram
#
1
SHAFT, PUMP
(2F1-13314-00-00)
Unavailable
2
ROTOR ASSEMBLY 2
341-13320-02-00
Unavailable
3
HOUSING, ROTOR
(2F1-13336-00-00)
Unavailable
4
ROTOR ASSEMBLY 2
(2F1-13320-00-00)
Unavailable
6
COVER, PUMP
(2F1-13316-00-00)
Unavailable
7
SCREW, PANHED (GC2)
98580-06555-00
Unavailable
9
STRAINER HSNG ASSEMBLY
(1A8-13410-00-00)
Unavailable
10
STRAINER, OIL
371-13411-00-00
Unavailable
11
PLUNGER, RELIEF
(371-13483-01-00)
Unavailable
12
SPRING, COMPRESSION
(90501-14390-00)
Unavailable
13
RETAINER, RLIEF VLV
(371-13486-01-00)
Unavailable
14
SPRING, COMPRESSION
(90501-10389-00)
Unavailable
15
PLUG
(371-13497-00-00)
Unavailable
16
PIN, SPEC''L SHAPE
(90249-04026-00)
Unavailable
17
SCREW PAN HEAD
98580-06020-00
Unavailable
18
PLUG
(371-13419-00-00)
Unavailable
19
COVER, STRAINER
(2F1-13417-00-00)
Unavailable
20
GASKET,STRNR COVER
371-13414-12-00
Unavailable
21
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
22
BOLT,SOCKET
91317-06020-00
Unavailable
23
BOLT,SOCKET
91317-06040-00
Unavailable
24
PLUG, STRAIGHT SCRW
(90340-30020-00)
Unavailable
25
GASKET, DRAIN PLUG
256-15353-00-00
Unavailable
26
PLUG STRAIGTSCREW 132153510000
90340-12005-00
Unavailable
27
GASKET
812-11198-00-00
Unavailable
28
ELEMENT ASY, OIL
99999-02689-00
Unavailable
29
O-RING
93210-45199-00
Unavailable
30
COVER, OIL ELEMENT
371-13447-01-00
Unavailable
31
GASKET
371-13449-11-00
Unavailable
32
SCREW PAN HEAD
98580-06020-00
Unavailable
33
PIPE, DELIVERY 1
(371-13161-00-00)
Unavailable
34
BOLT, UNION (16G)
90401-10084-00
Unavailable
35
BOLT, UNION (371-13166-00)
90401-10013-00
Unavailable
36
GASKET (5R6)
90430-10171-00
Unavailable
37
WASHER, PLATE
90201-12179-00
Unavailable
38
HOLDER
(371-15118-00-00)
Unavailable
39
NUT
90170-10011-00
Unavailable
