Description

Price

1

MSTR CYLINDER ASSEMBLY

(1U4-25850-02-00)

Unavailable

2

CYLINDER KIT, MASTER

535-W0041-60-00

$144.99

3

. RESERVOIR CAP ASSY

1J3-25852-01-00

Unavailable

4

SCREW, FLAT

98707-05014-00

$9.49

5

DIAPHRAGM, RESERVOIR

1J3-25854-01-00

$40.99

6

. GASKET

1J3-25855-01-00

Unavailable

7

LEVER R

1J3-83922-20-00

Unavailable

8

SCREW (2L0)

90149-06131-00

$8.49

9

NUT HEXAGON 306839270000

90170-06010-00

$8.49

10

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

11

BOLT (4L0)

90109-06577-00

$5.60

12

NUT, SELF-LOCKING

95617-06100-00

$8.49

13

BRACKET, MASTER

1J3-25867-00-00

Unavailable

14

BOLT, HEXAGON

97017-06025-00

$4.24

15

WASHER, SPRING

92995-06100-00

Unavailable

16

PLUG (341-26329-00)

90338-09012-00

Unavailable

17

BOLT, UNION(3GM)

90401-10159-00

Unavailable

18

WASHER, PLATE(481)

90201-10118-00

Unavailable

19

BOOT, MASTER CYLINDER

306-25862-00-00

Unavailable

20

HOSE, BRAKE 2

(1J3-25873-02-00)

Unavailable

21

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable

22

HOSE, BRAKE

(1J3-25874-01-00)

Unavailable

23

JOINT

(1J3-25885-00-00)

Unavailable

24

BOLT, HEXAGON

97017-06025-00

$4.24

25

WASHER, SPRING

92995-06100-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

Unavailable

27

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

Unavailable

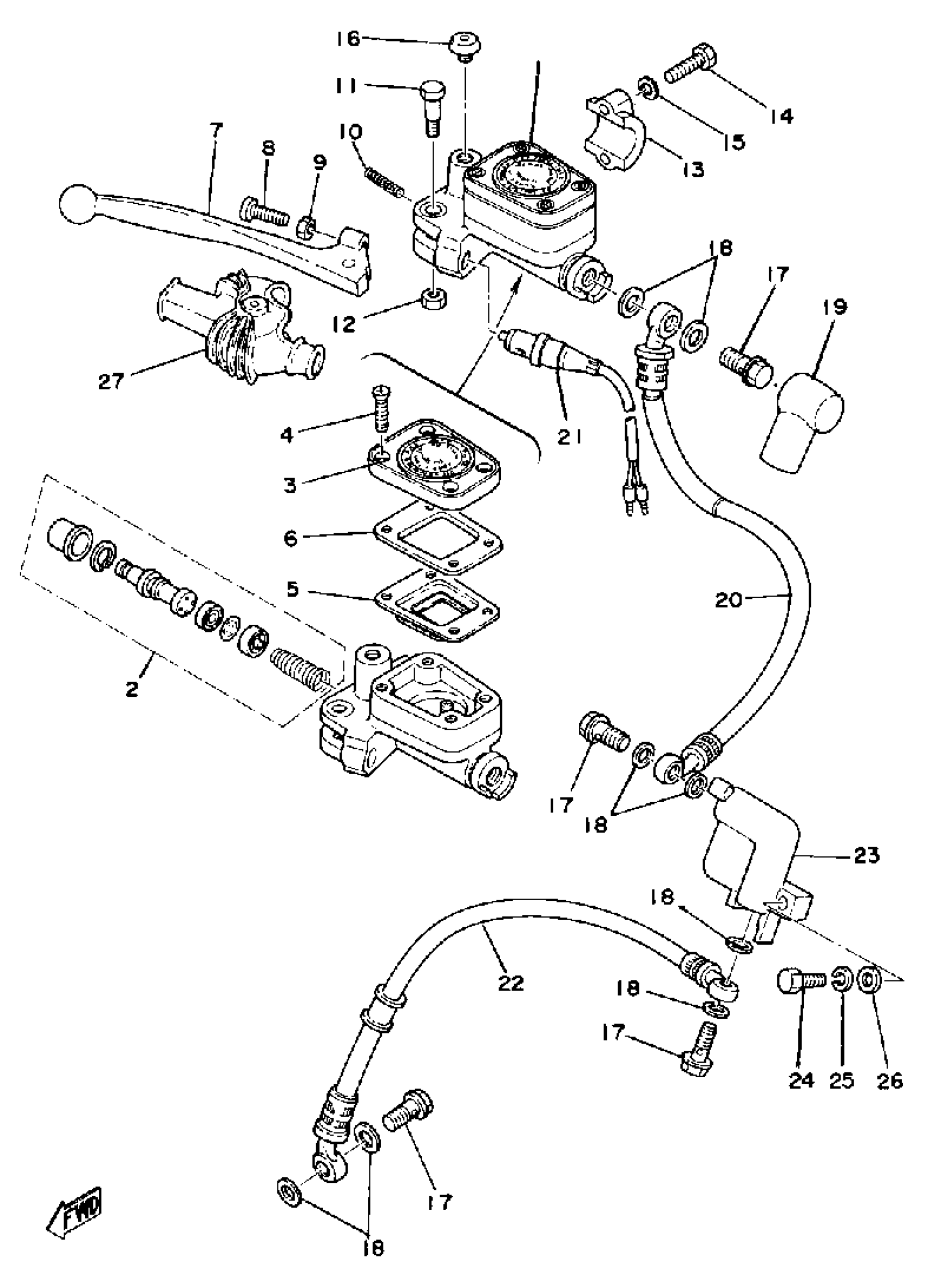

Yamaha XS500E (XS500) 1978 MASTER CYLINDER BRAKE HOSE Diagram

MSTR CYLINDER ASSEMBLY

CYLINDER KIT, MASTER

. RESERVOIR CAP ASSY

SCREW, FLAT

DIAPHRAGM, RESERVOIR

. GASKET

LEVER R

SCREW (2L0)

NUT HEXAGON 306839270000

SPRING COMPRESSION306839240000

BOLT (4L0)

NUT, SELF-LOCKING

BRACKET, MASTER

BOLT, HEXAGON

WASHER, SPRING

PLUG (341-26329-00)

BOLT, UNION(3GM)

WASHER, PLATE(481)

BOOT, MASTER CYLINDER

HOSE, BRAKE 2

FRONT STOP SWITCH ASSY

HOSE, BRAKE

JOINT

BOLT, HEXAGON

WASHER, SPRING

WASHER, PLAIN (646)

COVER, HANDLE LEVER (R.H)
