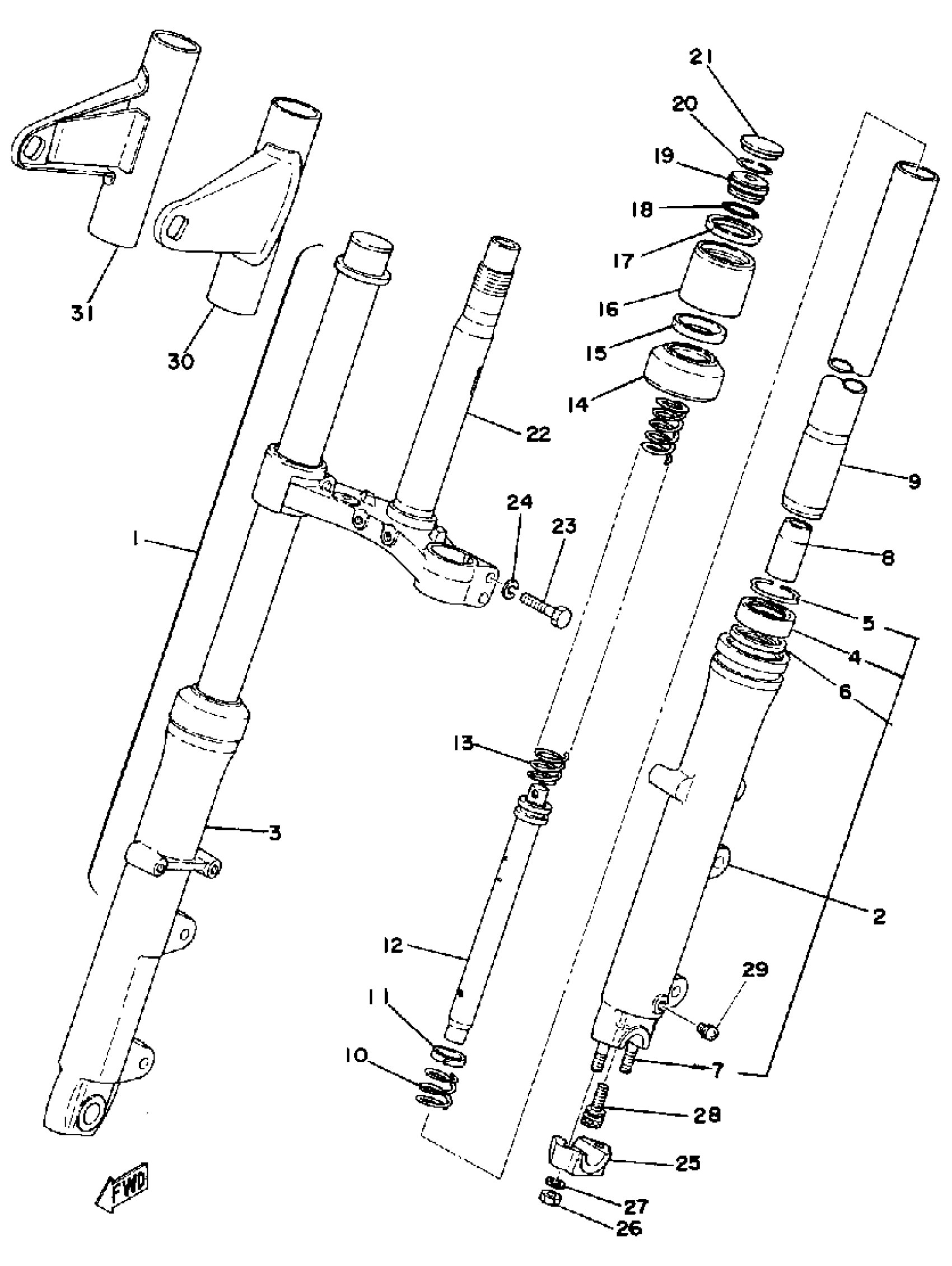

Yamaha XS500E (XS500) 1978 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(1J3-23101-61-00)

Unavailable

2

. TUBE, OUTER 1

(1J3-23126-01-00)

Unavailable

3

. TUBE, OUTER 2

(1J3-23136-01-00)

Unavailable

4

OIL SEAL

1UA-23145-00-00

Unavailable

5

CLIP, OIL SEAL

34X-23156-00-00

$8.99

6

.. SEAL, SPACER

(1J7-23147-00-00)

Unavailable

7

.. BOLT, STUD

90116-08260-00

Unavailable

8

. SPACER, OIL LOCK

(1J3-23166-00-00)

Unavailable

9

. INNER TUBE 1

1J3-23110-01-00

Unavailable

10

. SPRING, REBOUND

1J3-23151-00-00

Unavailable

11

. RING, PISTON FRTFRK

(1J3-23157-00-00)

Unavailable

12

. CYLINDER, FRTFRK

(1J3-23170-61-00)

Unavailable

13

. SPRING, FRONT FORK (1J3-23141-60)

1J3-23141-61-00

Unavailable

14

SEAL, DUST

29L-23144-01-00

$25.99

15

. GASKET

23W-23163-00-00

Unavailable

16

. GUIDE, COVER LOWER

(1J3-23116-00-00)

Unavailable

17

. GUIDE, COVER UPPER

(1J3-23115-00-00)

Unavailable

18

. GASKET

1J3-23114-00-00

Unavailable

19

. BOLT, CAP

(1J3-23111-00-00)

Unavailable

20

. CIRCLIP

1J3-23183-01-00

Unavailable

21

. CAP, FRONT FORK

1J3-23168-00-00

Unavailable

22

. UNDER BRACKET

(1J3-23340-00-33)

Unavailable

23

BOLT

97014-08040-00

Unavailable

24

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

25

. HOLDER, AXLE

(1J3-23167-00-00)

Unavailable

26

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

27

.. WASHER, PLATE

92990-08600-00

Unavailable

28

BOLT

3M7-23181-00-00

Unavailable

29

. PLUG, DRAIN

1E7-23119-00-00

Unavailable

30

COVER, UPPER 1 000

(1J3-23121-01-93)

Unavailable

31

COVER, UPPER 2 000

(1J3-23131-01-93)

Unavailable
