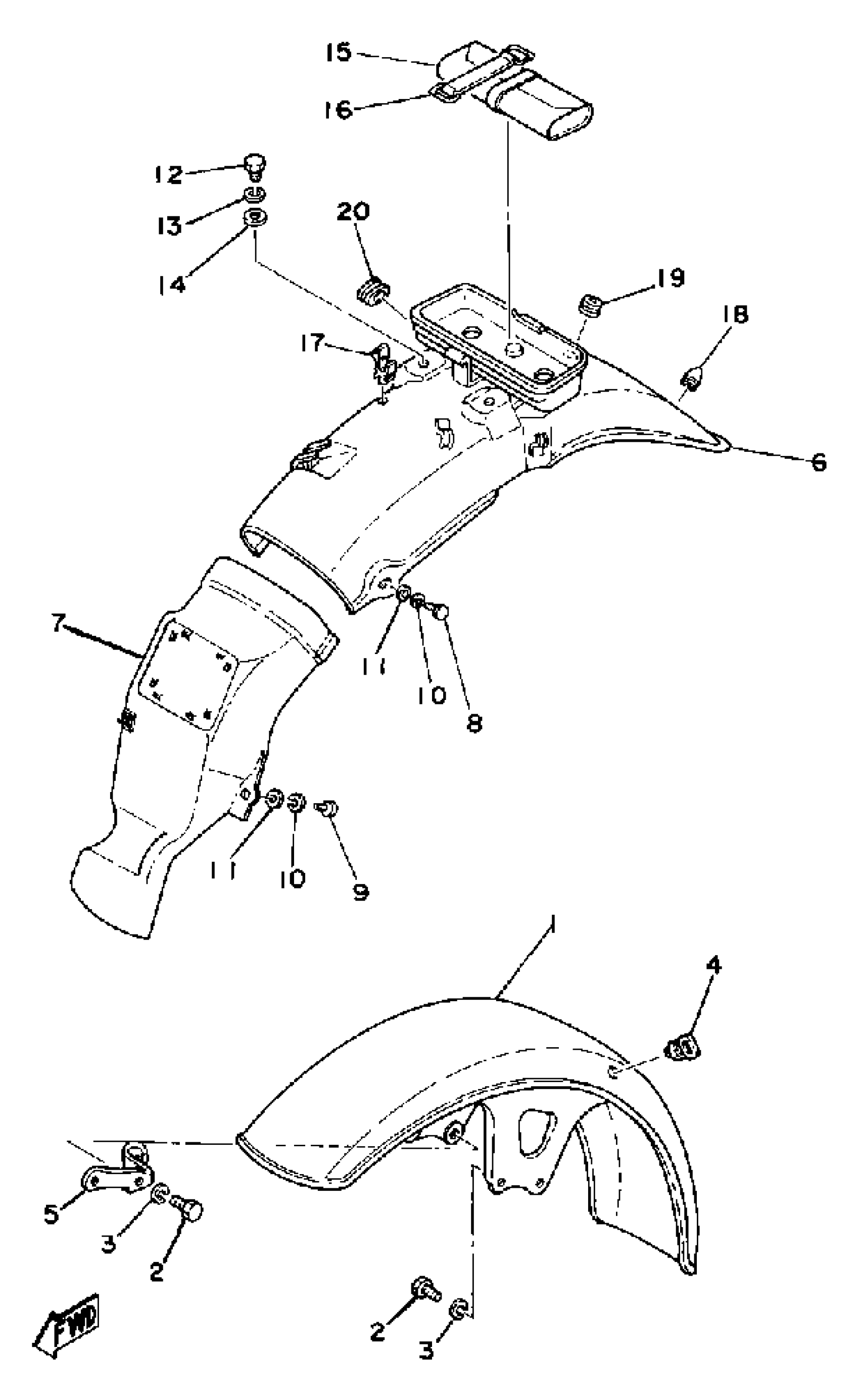

Yamaha XS500E (XS500) 1978 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT 000

(1J3-21510-10-93)

Unavailable

2

BOLT(JA9)

90101-08691-00

$4.29

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

HOLDER, BRKE HOSE 1

1J3-25875-02-00

Unavailable

6

REAR FENDER

(1J3-W2161-11-93)

Unavailable

7

GUARD, MUD

(1A8-21629-01-00)

Unavailable

8

BOLT (661)

97013-06012-00

$5.60

9

SCREW, PAN

98507-06014-00

$8.49

10

WASHER, SPRING

92995-06100-00

Unavailable

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

BOLT, HEXAGON

97017-08016-00

$8.49

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

.. WASHER, PLATE

92990-08600-00

Unavailable

15

TOOL KIT

(1A8-28100-10-00)

Unavailable

16

BAND, BATTERY

26L-82131-00-00

Unavailable

17

CLAMP (1J7)

90464-16021-00

Unavailable

18

DAMPER 2

2MG-21639-00-00

Unavailable

19

GROMMET 152845180000

90480-12013-00

Unavailable

20

GROMMET (438)

90480-15061-00

Unavailable
