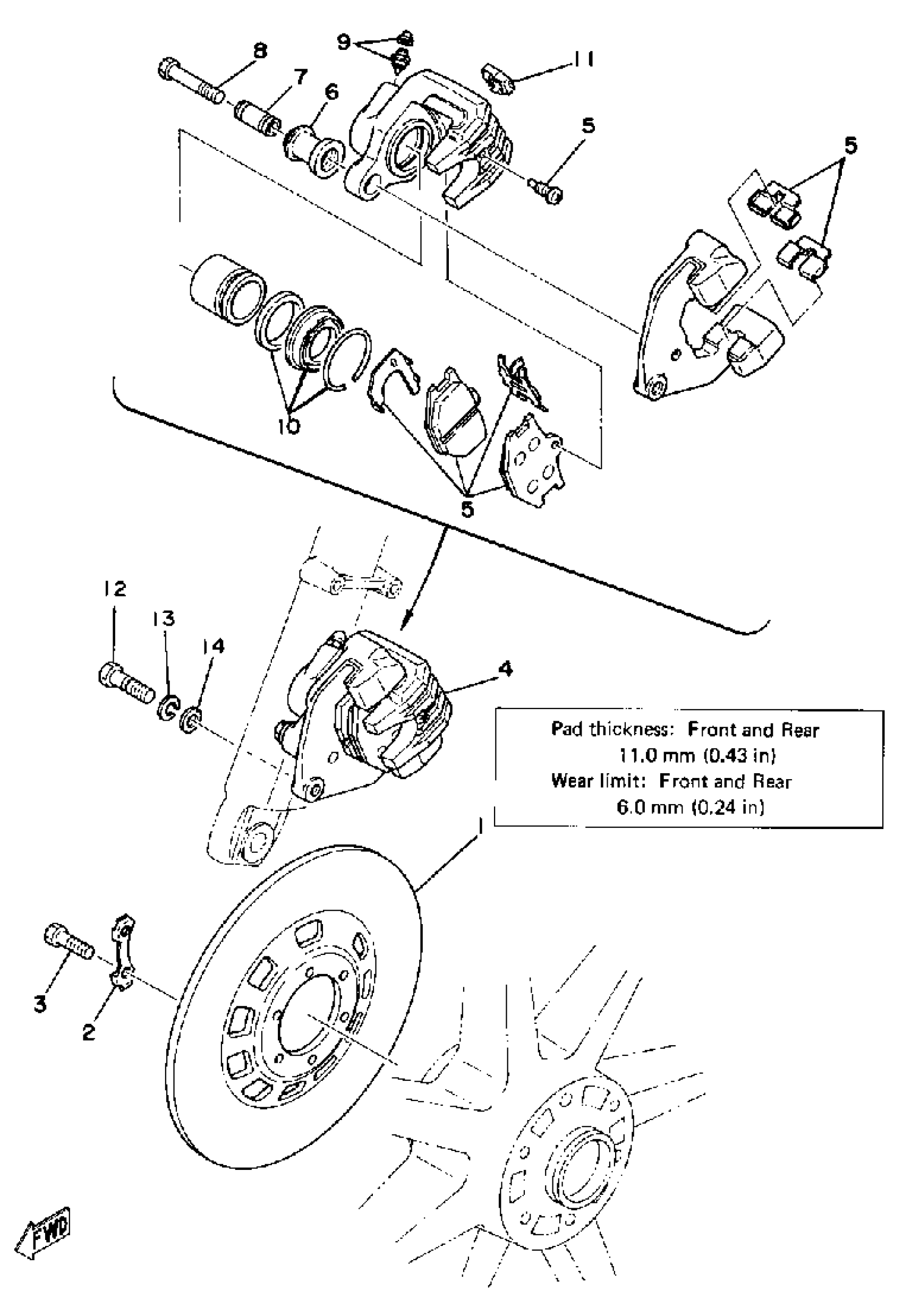

Yamaha XS500E (XS500) 1978 FRONT DISC BRAKE CALIPER Diagram

DISC, BRAKE

(1J3-25831-00-00)

Unavailable

WASHER, LOCK

1J3-25834-01-00

$6.99

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

CALIPER ASSEMBLY RH

3H5-25810-02-00

Unavailable

BRAKE PAD KIT

4K0-W0045-02-00

$56.99

BOOT, CALIPER

1J3-25917-00-00

Unavailable

. SLEEVE, CALIPER

1J3-25838-00-00

Unavailable

. BOLT, WASHER BASED

90105-08145-00

Unavailable

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

CALIPER SEAL KIT

1J3-W0047-00-00

$56.99

. CAP, INDICATOR

1J3-25845-01-00

Unavailable

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

WASHER, PLATE

92990-10600-00

Unavailable
