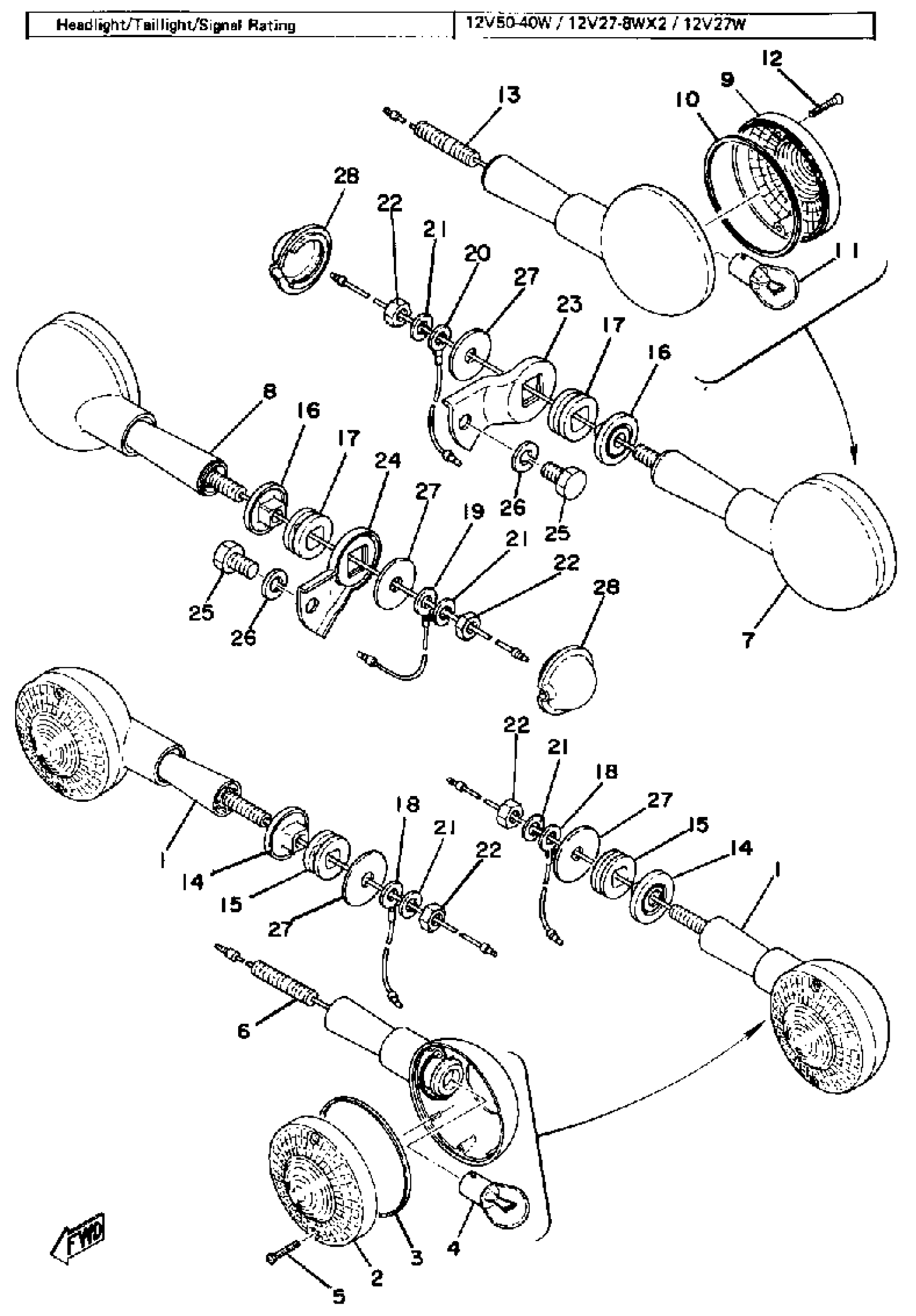

Yamaha XS500E (XS500) 1978 FLASHER LAMP Diagram

#

Description
Price

1

R FLSHR LITE ASSEMBLY

1E5-83330-20-93

Unavailable

2

LENS, FLASHER

341-83312-70-00

Unavailable

3

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

4

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

5

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

6

. BOLT, STUD

341-83367-09-00

Unavailable

7

R FLSHR LITE ASSEMBLY

(1J3-83330-K1-93)

Unavailable

8

R FLSHR LITE ASSEMBLY

(1J3-83340-K1-93)

Unavailable

9

LENS, FLASHER

341-83312-70-00

Unavailable

10

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

11

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

12

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

13

. BOLT, STUD

341-83367-09-00

Unavailable

14

COLLAR, FLASHER 1

341-83316-02-00

$6.99

15

DAMPER, FLASHER (371)

341-83321-01-00

$7.99

16

COLLAR, FLASHER 1

341-83316-02-00

$6.99

17

DAMPER, FLASHER (371)

341-83321-01-00

$7.99

18

WIRE, EARTH (GROUND)

256-84313-01-00

Unavailable

19

CORD

(1J3-83346-00-00)

Unavailable

20

CORD

(1J3-83336-00-00)

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

NUT(6L2)

95333-08600-00

Unavailable

23

STAY, FLASHER 1

(1J3-83318-00-00)

Unavailable

24

STAY, FLASHER 2

(1J3-83328-00-00)

Unavailable

25

BOLT(JA9)

90101-08691-00

Unavailable

26

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

27

WASHER 1902345600

90201-08310-00

Unavailable

28

CAP

(1H2-82542-00-00)

Unavailable
