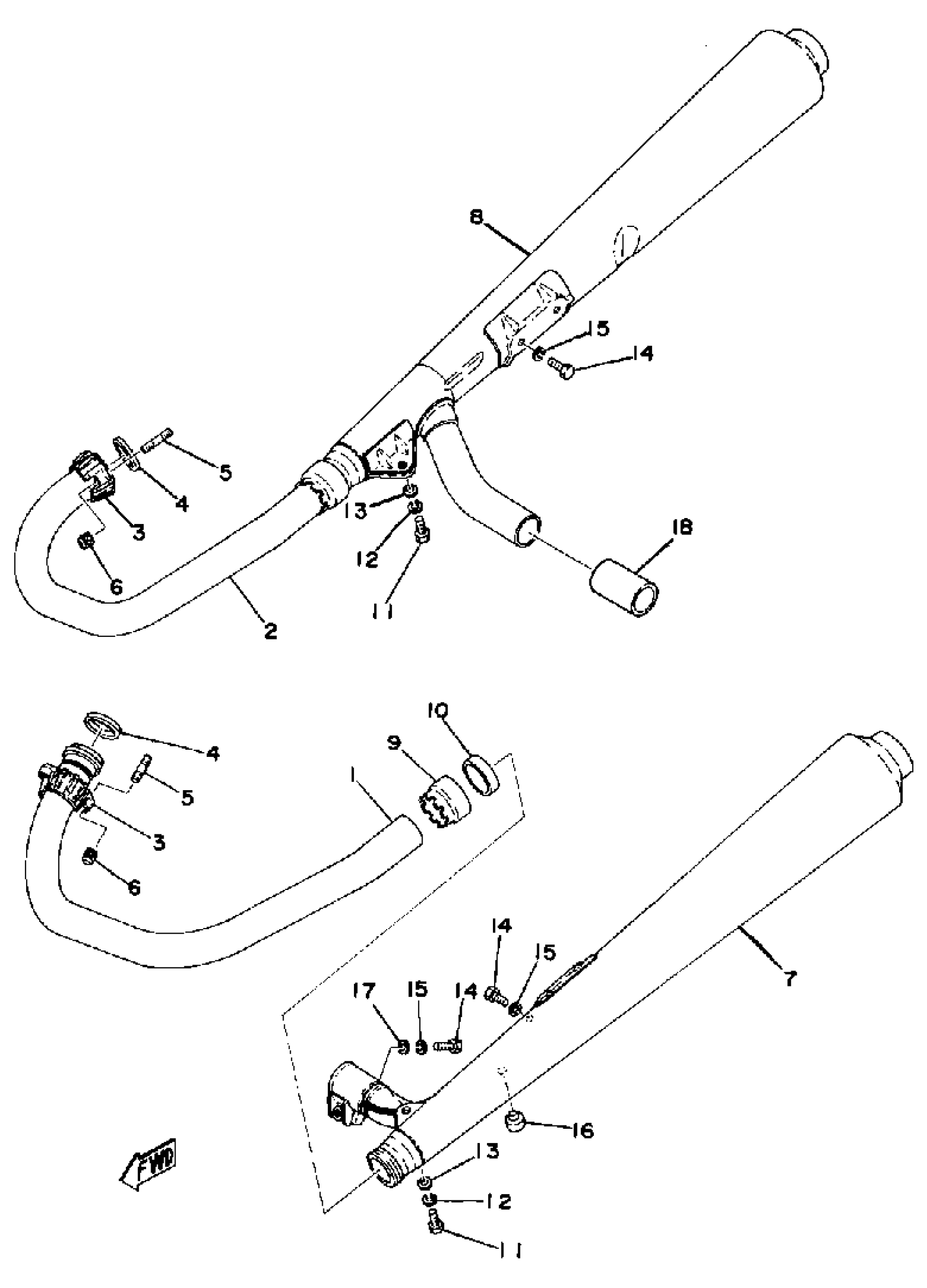

Yamaha XS500E (XS500) 1978 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST L 000

(1A8-14611-01-00)

Unavailable

2

PIPE, EXHAUST R 000

1A8-14621-01-00

Unavailable

3

NUT, RING (371-14612-02)

371-14612-03-00

Unavailable

4

GASKET, EXHAUST PIPE

3PA-14613-10-00

$15.49

5

BOLT, STUD (17W)

90116-08408-00

Unavailable

6

NUT (371)

90179-08004-00

$9.49

7

MUFFLER

(99999-00990-00)

Unavailable

8

MUFFLER R

(371-14721-06-00)

Unavailable

9

NUT, MUFFLER JOINT

371-14713-00-00

Unavailable

10

GASKET,MUFFLER

371-14714-13-00

Unavailable

11

BOLT(JA9)

90101-08691-00

$4.29

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

.. WASHER, PLATE

92990-08600-00

Unavailable

14

BOLT, HEXAGON

97013-08020-00

$1.16

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

STOPPER, MAIN STAND

371-27114-00-00

Unavailable

17

.. WASHER, PLATE

92990-08600-00

Unavailable

18

GASKET, MUFFLER 000

(1A8-14714-00-00)

Unavailable
