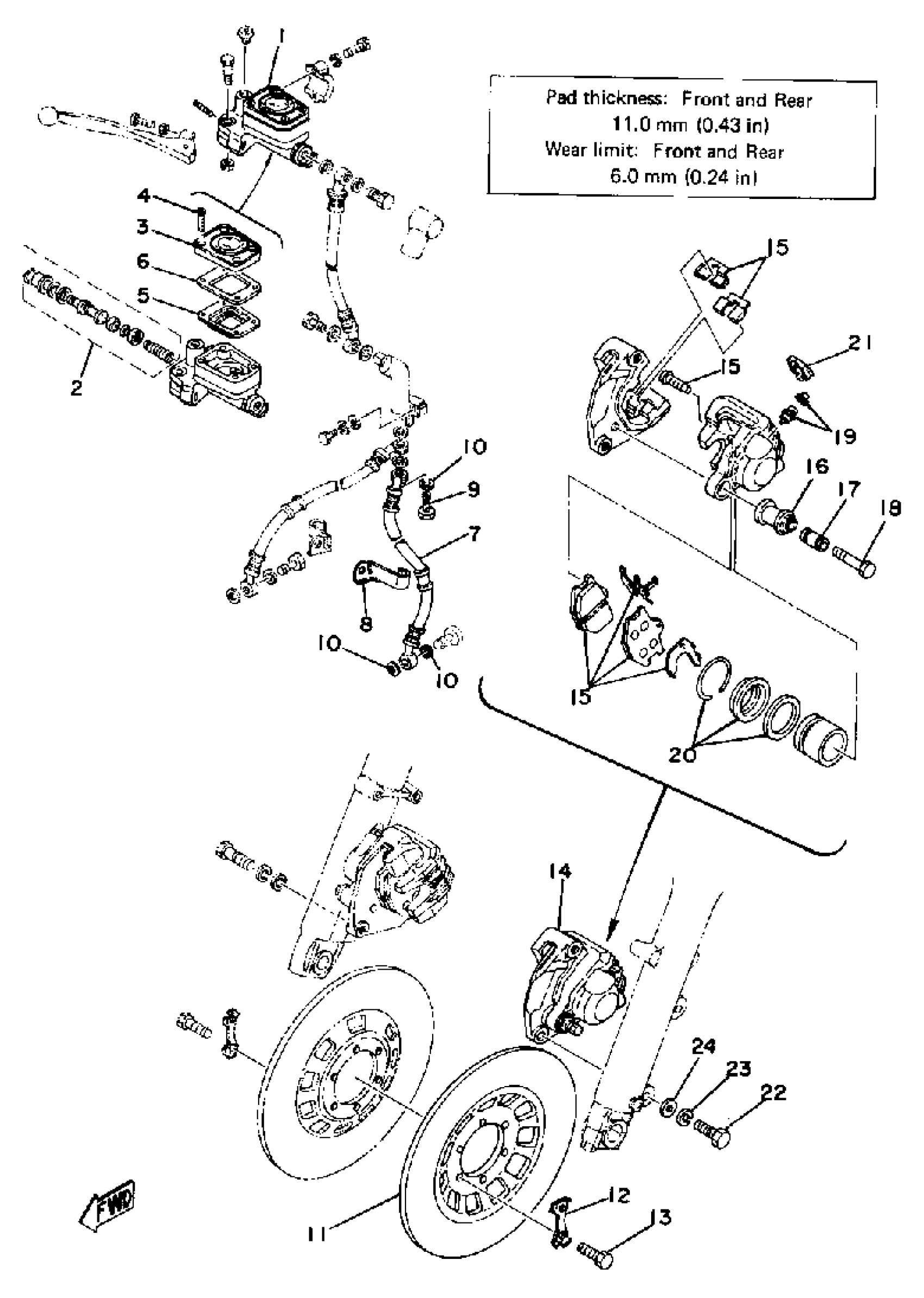

Yamaha XS500E (XS500) 1978 DOUBLE DISC BRAKE Diagram

#

Description
Price

1

MSTR CYLINDER ASSEMBLY

1J3-25850-23-00

Unavailable

2

CYLINDER KIT, MASTER (DOUBLE)

1J3-W0041-20-00

Unavailable

3

. RESERVOIR CAP ASSY

1J3-25852-01-00

Unavailable

4

SCREW, FLAT

98707-05014-00

$9.49

5

DIAPHRAGM, RESERVOIR

1J3-25854-01-00

Unavailable

6

. GASKET

1J3-25855-01-00

Unavailable

7

HOSE, BRAKE

(1J3-25874-01-00)

Unavailable

8

HOLDER, BRKE HOSE 2

1J3-25876-02-00

Unavailable

9

BOLT, UNION

90401-10038-00

$12.49

10

WASHER, PLATE(481)

90201-10118-00

Unavailable

11

DISC, BRAKE

(1J3-25831-00-00)

Unavailable

12

WASHER, LOCK

1J3-25834-01-00

$6.99

13

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

14

CALIPER ASSEMBLY LH

3H5-25810-12-00

Unavailable

15

BRAKE PAD KIT

4K0-W0045-02-00

$56.99

16

BOOT, CALIPER

1J3-25917-00-00

Unavailable

17

. SLEEVE, CALIPER

1J3-25838-00-00

Unavailable

18

. BOLT, WASHER BASED

90105-08145-00

Unavailable

19

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

20

CALIPER SEAL KIT

1J3-W0047-00-00

Unavailable

21

. CAP, INDICATOR

1J3-25845-01-00

Unavailable

22

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

23

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

24

WASHER, PLATE

92990-10600-00

Unavailable
