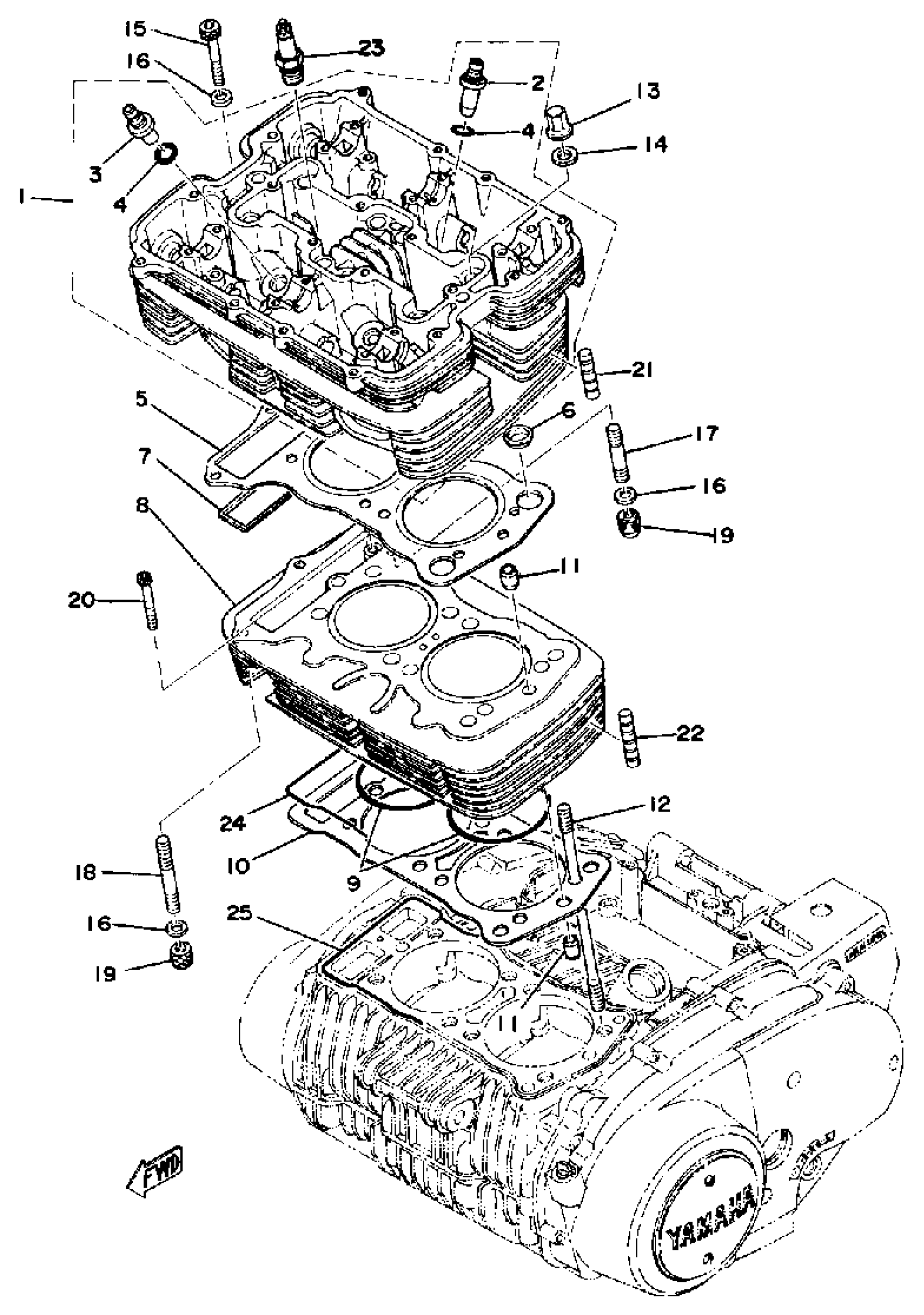

Yamaha XS500E (XS500) 1978 CYLINDER HEAD CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1 000

(1A8-11111-01-00)

Unavailable

2

. GDE, INTK VLV 1 O/S

371-11133-12-00

Unavailable

3

. GDE, EXST VLV 1 O/S

371-11134-12-00

Unavailable

4

O-RING (371)

93210-11124-00

$7.49

5

GASKET, CYL.HEAD 1

2F1-11181-10-00

Unavailable

6

SEAL, CYLINDER 4

1A8-11358-01-00

Unavailable

7

SEAL, CYLINDER 3

1A8-11357-00-00

Unavailable

8

CYLINDER 1

(1J3-11311-00-00)

Unavailable

9

O-RING (2H7)

93210-77363-00

$12.49

10

GASKET, CYL

371-11351-10-00

Unavailable

11

PIN, DOWEL(3VD)

99530-10114-00

$2.55

12

BOLT, STUD

(90116-10270-00)

Unavailable

13

NUT, SPEC''L SHAPE

(90179-10205-00)

Unavailable

14

WASHER, PLATE 3711117500

90201-10124-00

$9.49

15

BOLT, SOCKET

91317-08050-00

$8.49

16

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

17

BOLT, STUD

90116-08057-00

Unavailable

18

BOLT,STUD

90116-08371-00

Unavailable

19

NUT (371)

90179-08004-00

Unavailable

20

BOLT,SOCKET

91317-06050-00

Unavailable

21

ABSORBER 1

(1A8-11161-01-00)

Unavailable

22

ABSORBER 2

(1A8-11162-00-00)

Unavailable

23

D8EA NGK SPLUG 10PK

D8E-A0000-00-00

Unavailable

24

SEAL, CYLINDER 1

371-11355-00-00

Unavailable

24

SEAL, CYLINDER 1

(371-11355-10-00)

Unavailable

24

SEAL, CYLINDER 1

371-11355-30-00

Unavailable

25

SEAL, CYLINDER 2

371-11356-00-00

Unavailable

25

SEAL, CYLINDER 2

(371-11356-10-00)

Unavailable

25

SEAL, CYLINDER 2

(371-11356-30-00)

Unavailable
