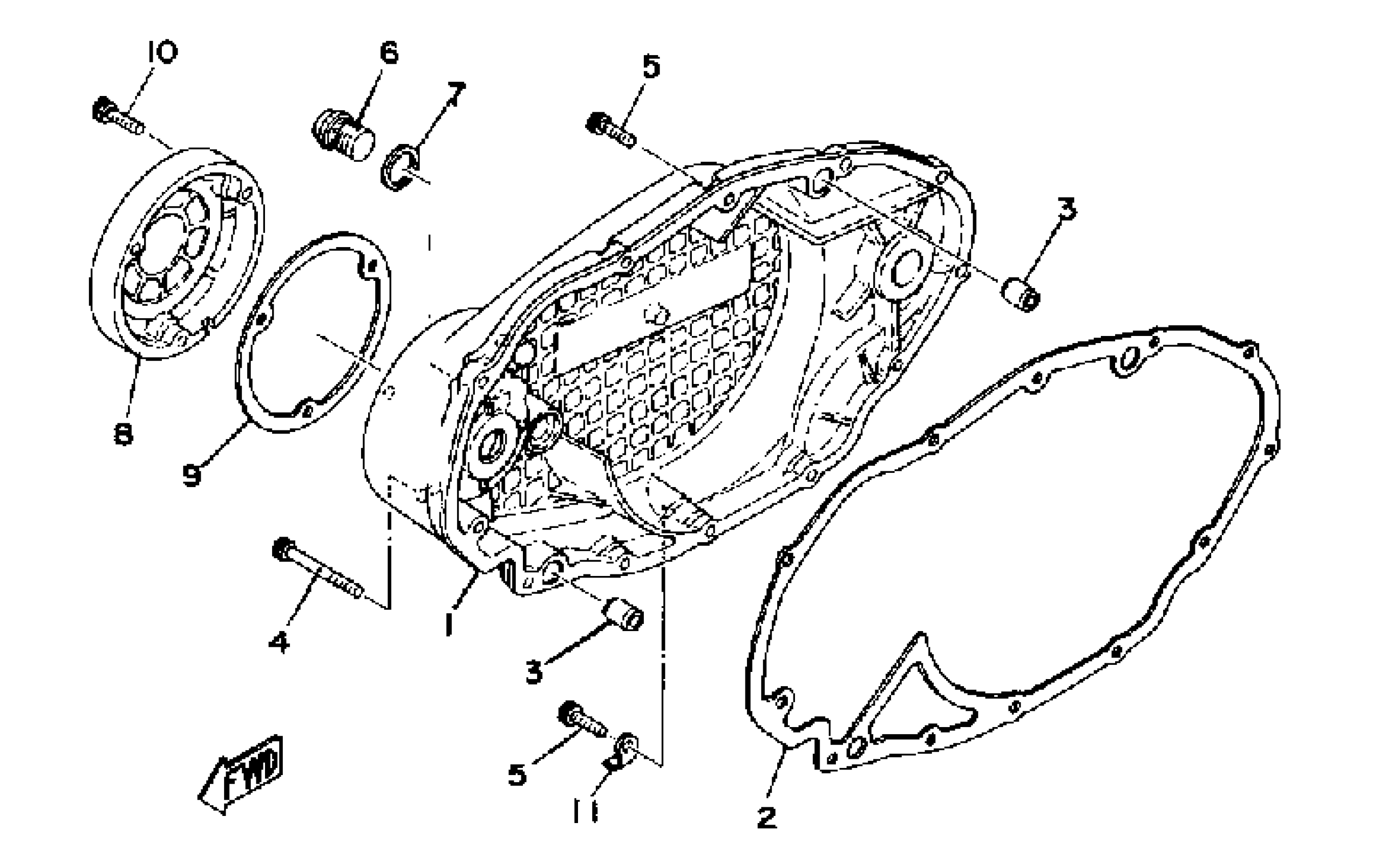

Yamaha XS500E (XS500) 1978 CRANKCASE COVER RIGHT Diagram

#

Description

Price

1

COVER, CRANKCASE 3

(371-15431-01-00)

Unavailable

2

GASKET, CRCS CVR 3

2F1-15462-10-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT,SOCKET

91317-06050-00

$3.88

5

BOLT,SOCKET

91317-06020-00

Unavailable

6

PLUG, STRAIGHT SCREW

90340-16019-00

Unavailable

7

GASKET

90430-16048-00

Unavailable

8

COVER, OIL PUMP

371-15416-01-00

Unavailable

9

GASKET,O/PMP CVR1

371-15456-10-00

Unavailable

10

BOLT,SOCKET

91317-06020-00

Unavailable

11

CLAMP

(2T4-82594-00-00)

Unavailable
