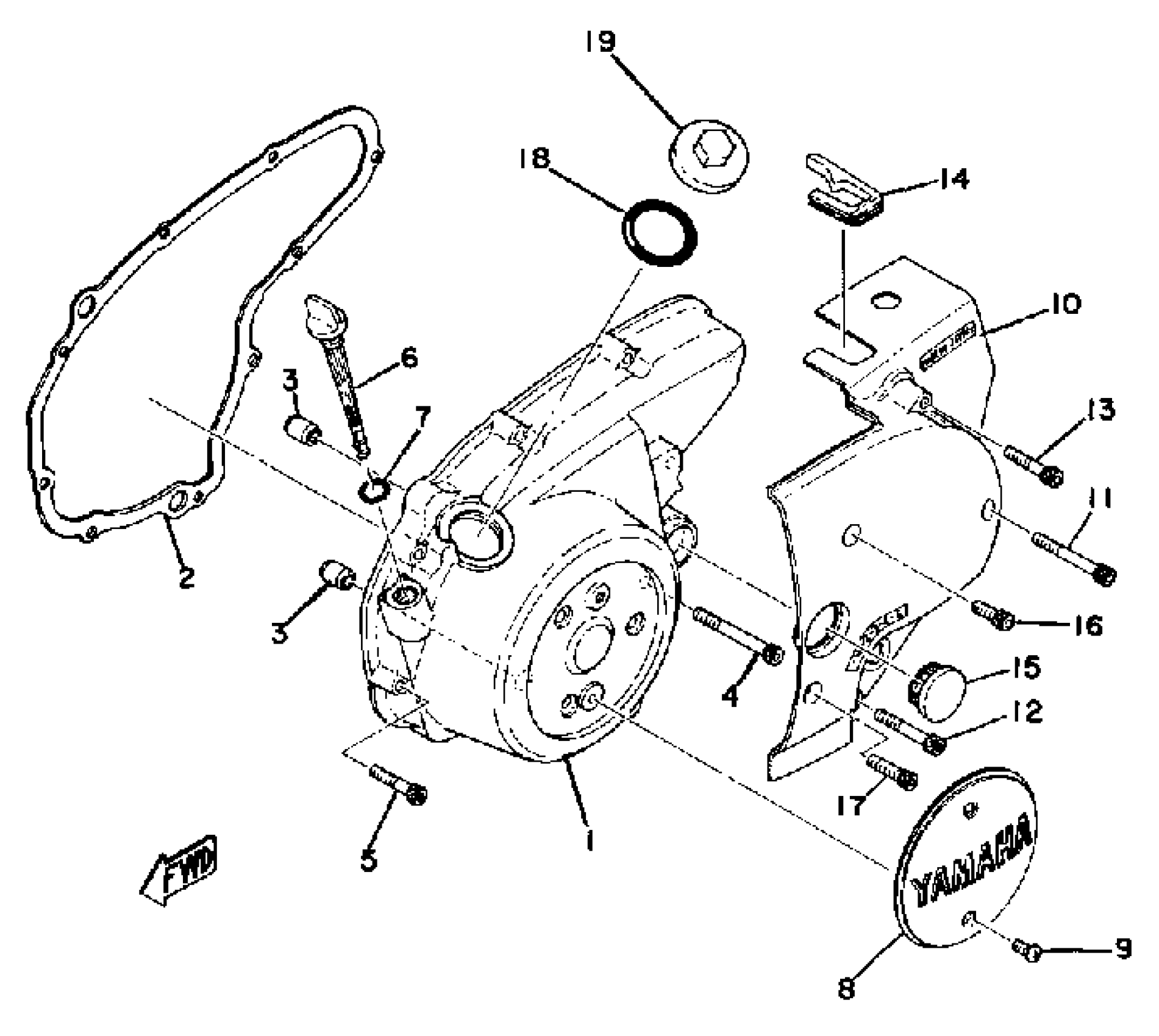

Yamaha XS500E (XS500) 1978 CRANKCASE COVER LEFT Diagram

#

Description
Price

1

. COVER, CRANKCASE L

1H2-15411-00-00

Unavailable

2

GASKET,CRCS COVER

371-15451-11-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT,SOCKET

91317-06055-00

$4.19

5

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

6

PLUG, OIL LEVEL

371-15362-00-00

Unavailable

7

O-RING (371)

93210-10197-00

$7.49

8

COVER, GENERATOR

371-15415-01-00

Unavailable

9

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

10

COVER, CRANKCASE R

(371-15421-02-00)

Unavailable

11

BOLT,SOCKET

91317-06050-00

$3.88

12

BOLT,SOCKET

91317-06040-00

$3.76

13

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

14

GROMMET

(371-15486-00-00)

Unavailable

15

COVER, CAP

371-15417-00-00

Unavailable

16

BOLT,SOCKET

91317-06020-00

Unavailable

17

BOLT,SOCKET

91317-06025-00

Unavailable

18

O-RING (341)

93210-32172-00

Unavailable

19

PLUG, VIEWER

1H2-11186-00-00

Unavailable
