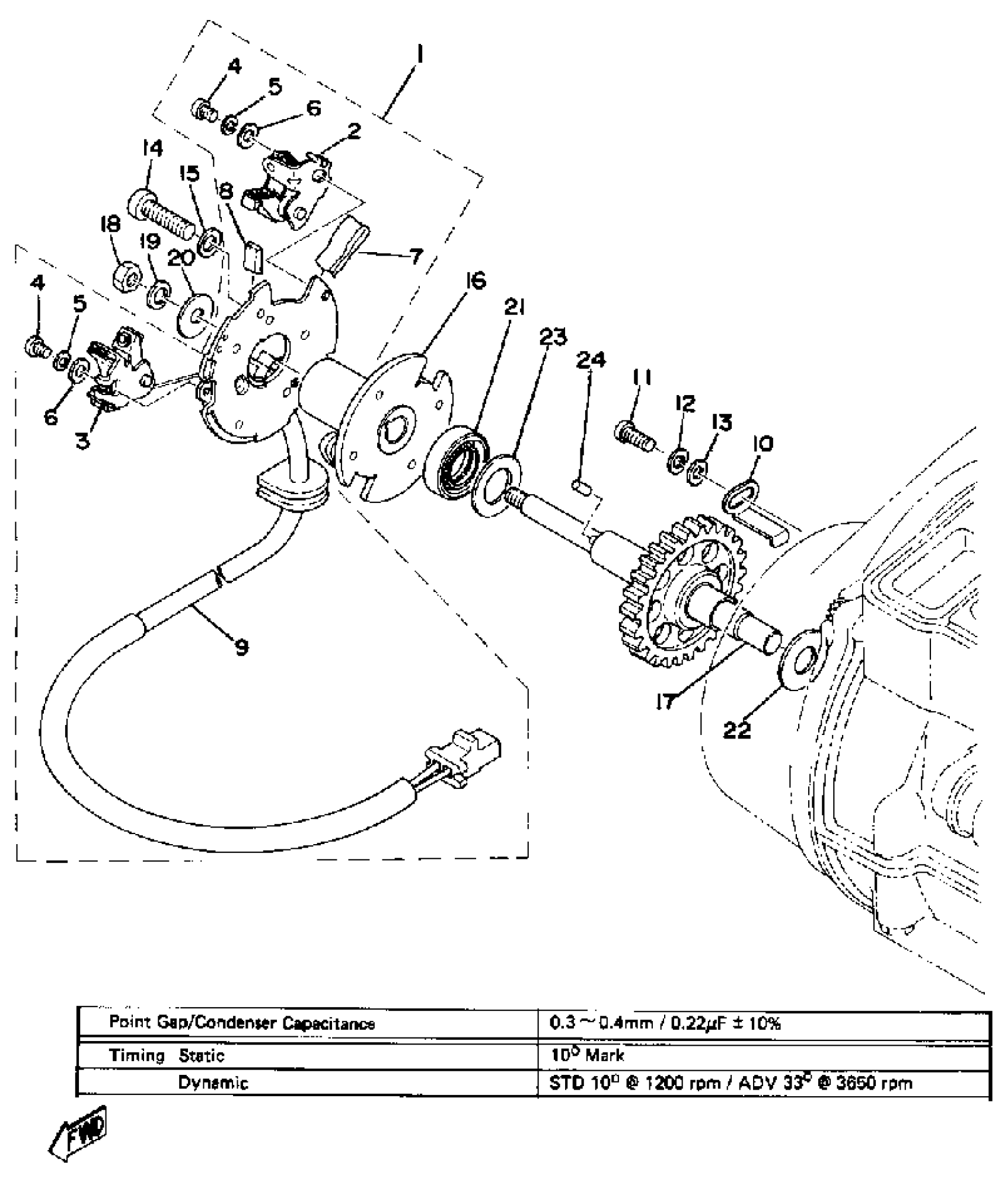

Yamaha XS500E (XS500) 1978 CONTACT BREAKER GOVERNOR Diagram

#

Description
Price

1

BREAKER PLATE ASSEMBLY

(371-81620-10-00)

Unavailable

2

. CONTACT BRKR ASSEMBLY

371-81621-10-00

Unavailable

3

. CONTACT BRKR ASSEMBLY

371-81622-10-00

Unavailable

4

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

6

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

7

LUBRICATOR

(371-81631-10-00)

Unavailable

8

. LUBRICATOR

207-81331-10-00

Unavailable

9

WIRE, LEAD

(371-81615-10-00)

Unavailable

10

PLATE, TIMING

(371-81632-00-00)

Unavailable

11

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

. WASHER, PLAIN

92990-05200-00

Unavailable

14

SCREW, PAN

98507-06014-00

$8.49

15

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

16

GOVERNOR ASSEMBLY (1A8-81653-10)

2F1-81653-10-00

Unavailable

17

BREAKER SHAFT ASSEMBLY

(371-11150-02-00)

Unavailable

18

NUT, HEXAGON

95380-06600-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

WASHER, PLATE (371)

90201-06412-00

Unavailable

21

OIL SEAL, SD-TYPE

93102-14107-00

Unavailable

22

WASHER, PLATE (371-11557-00)

90201-10373-00

Unavailable

23

WASHER, PLATE

(90201-14216-00)

Unavailable

24

PIN, DOWEL

93603-07073-00

Unavailable
