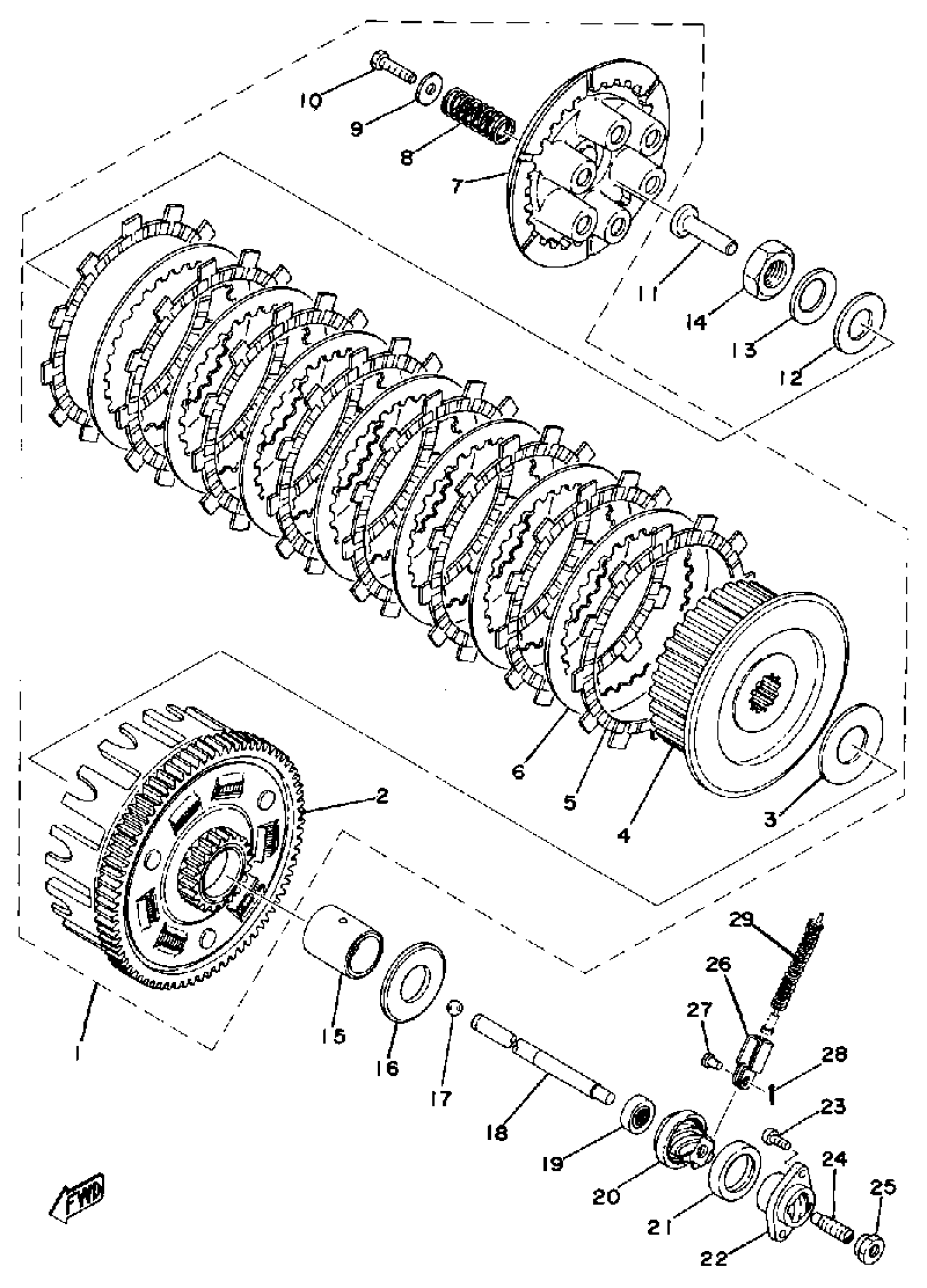

Yamaha XS500E (XS500) 1978 CLUTCH Diagram
#
Description
Price
1
CLUTCH ASSEMBLY
(1A8-16301-00-00)
Unavailable
2
PRI DRVN GEAR
(1A8-16150-00-00)
Unavailable
4
BOSS, CLUTCH
(371-16371-00-00)
Unavailable
6
PLATE, CLUTCH 2
371-16325-10-00
Unavailable
7
PLATE, PRESSURE 1
(371-16351-00-00)
Unavailable
12
WASHER (6E5)
92990-18200-00
Unavailable
13
SPRING
214-16119-00-00
Unavailable
14
NUT
90170-18089-00
Unavailable
16
PLATE, THRUST 1
(278-16154-00-00)
Unavailable
17
BALL
93505-16006-00
Unavailable
18
ROD, PUSH 2
371-16357-02-00
Unavailable
19
OIL SEAL(12E)
93109-08061-00
Unavailable
20
PUSH LEVER ASSEMBLY
371-16340-00-00
Unavailable
21
SEAL, DUST
214-16347-01-00
Unavailable
22
HOUSING, PUSH SCREW
371-16396-00-00
Unavailable
23
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
24
BOLT, SET
(90113-08035-00)
Unavailable
25
NUT
90179-08179-00
Unavailable
26
JOINT
214-16389-00-00
Unavailable
27
PIN W/HOLE 214163790000
90240-06005-00
Unavailable
28
. PIN, COTTER
91401-10015-00
Unavailable
29
SPRING, COMPRESSION (371-16345-00)
90501-08209-00
Unavailable
