CARBURETOR

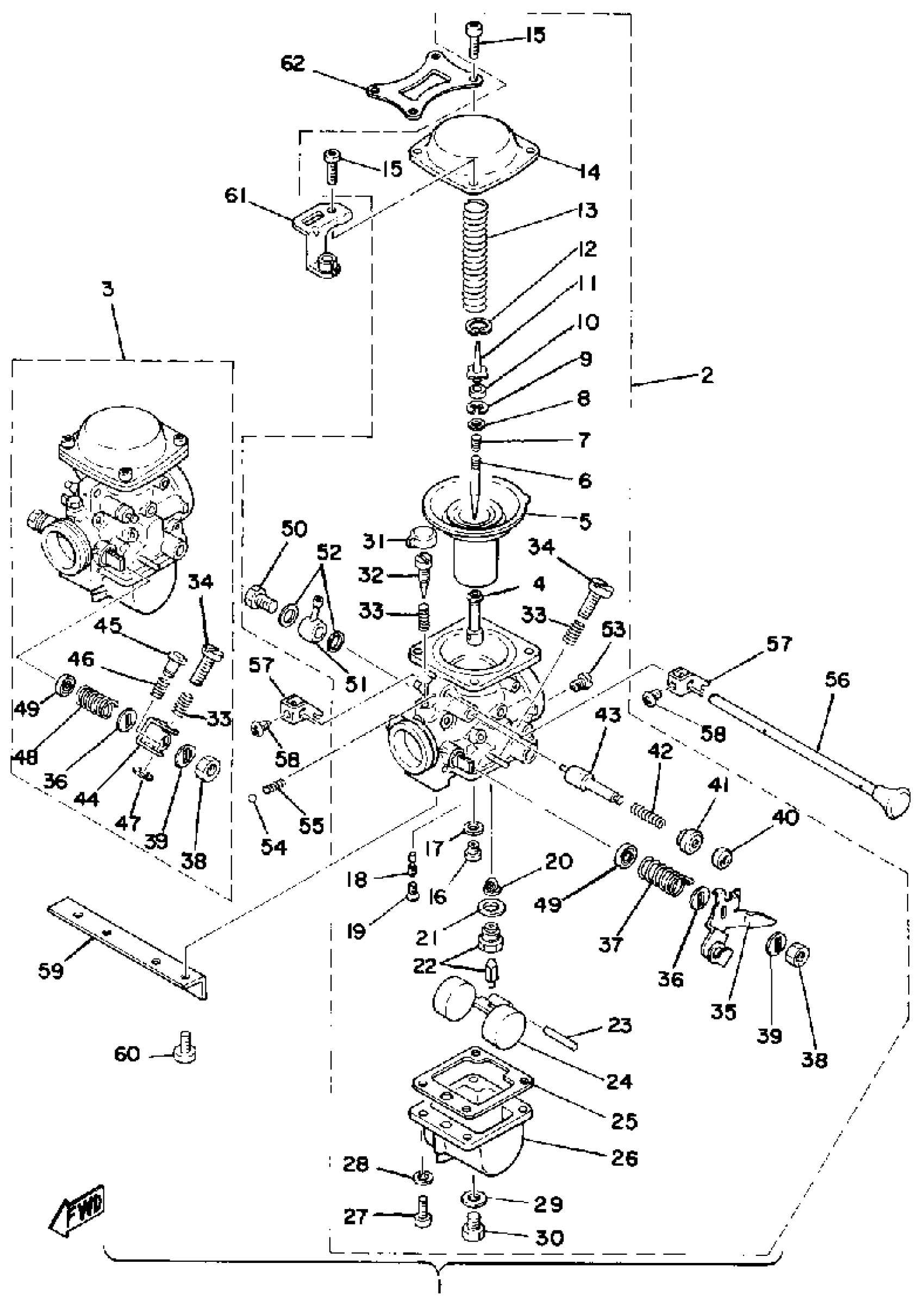

Yamaha XS500E (XS500) 1978 CARBURETOR Diagram
#
1
UNAVAILABLE IN PRICE BOOK
(2F1-14900-60-00)
Unavailable
2
CARBURETOR ASSEMBLY 1
(2F1-14901-60-00)
Unavailable
3
CARBURETOR ASSEMBLY 2
(2F1-14902-60-00)
Unavailable
4
NOZZLE, MAIN
(2F1-14941-06-00)
Unavailable
5
DIAPHRAGM ASSEMBLY
(2F1-14940-00-00)
Unavailable
6
NEEDLE
(2F1-14116-05-00)
Unavailable
7
.. SPRING
2F0-14589-00-00
Unavailable
8
.. WASHER
2F3-14952-00-00
Unavailable
10
.. RING
2F0-14918-00-00
Unavailable
11
PLATE, NEEDLE FTNG
(2F3-14946-00-00)
Unavailable
12
.. CLIP
2F0-14919-00-00
Unavailable
13
SPRING, DIAPHRAGM
(2F1-14933-00-00)
Unavailable
14
.. NO LONGER AVAILABLE
2A2-14958-00-00
Unavailable
15
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
16
JET, MAIN (#130)
620-14231-26-A0
Unavailable
16
.. JET, MAIN #1325
620-14231-99-A0
Unavailable
16
.. JET, MAIN #1375
620-1423A-78-A0
Unavailable
17
WASHER,MAIN JET
137-14153-00-00
Unavailable
18
JET, PILOT (# 42.5)
4G0-14142-42-A0
Unavailable
19
. SCREW
2F3-14991-00-00
Unavailable
20
NET, FILTER
1J7-14994-00-00
Unavailable
21
WASHER,VALVE SEAT
239-14195-00-00
Unavailable
22
VALVE SEAT ASSY
1J7-14190-20-00
Unavailable
23
PIN, FLOAT
537-14186-00-00
Unavailable
24
FLOAT
2A2-14985-01-00
Unavailable
25
GASKET, FLOAT CHAMBER
2A2-14984-01-00
Unavailable
26
BODY, FLOAT CHAMBER
(2A2-14981-06-00)
Unavailable
27
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
28
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
29
WASHER
256-14956-01-00
Unavailable
30
. SCREW
1A8-14991-00-00
Unavailable
31
CAP
8A7-14969-00-00
Unavailable
32
SCREW, PILOT
2A2-14923-00-00
Unavailable
33
.. SPRING, THROTTLE STOP
256-14934-01-00
Unavailable
34
.. SCREW, THROTTLE STOP
256-14922-01-00
Unavailable
35
LEVER, THROTTLE 2
(2F1-14964-00-00)
Unavailable
36
WASHER
(306-14170-00-00)
Unavailable
37
SPRING, THRTL 2
(2A2-14932-00-00)
Unavailable
38
NUT, HEXAGON 98801-12200
90170-12175-00
Unavailable
39
.. WASHER
256-14953-00-00
Unavailable
40
.. COVER, PLUNGER CAP
2A2-14173-00-00
Unavailable
41
.. CAP, PLUNGER
2A2-14174-00-00
Unavailable
42
. SPRING, PLUNGER
256-14135-00-00
Unavailable
43
.. PLUNGER, STARTER
2A2-14171-00-00
Unavailable
44
LEVER, THROTTLE 4
(2F1-14963-00-00)
Unavailable
45
. ROD, PUSH
584-14992-00-00
Unavailable
46
SPRING, THROTTLE STOP
(584-14934-00-00)
Unavailable
47
. CLIP
256-14937-00-00
Unavailable
48
SPRING, THRTL 2
(2F1-14932-00-00)
Unavailable
49
SEAL
2A2-14997-00-00
Unavailable
50
.. BOLT, BANJO
1L9-14166-00-00
Unavailable
51
PIPE, STARTER CON
(1L9-14988-00-00)
Unavailable
52
WASHER
256-14956-01-00
Unavailable
53
.. PILOT JET, AIR #180
2A2-14172-36-00
Unavailable
54
BALL
93501-08001-00
Unavailable
55
SPRING
583-14589-00-00
Unavailable
56
SHAFT, STARTER LVR
(2F1-14977-00-00)
Unavailable
57
LEVER, STARTER
(2A2-14905-00-00)
Unavailable
58
. SCREW, STARTER LEVER 2
584-14991-00-00
Unavailable
59
JET
(1A8-14945-00-00)
Unavailable
60
SCREW, PAN
98507-06014-00
Unavailable
61
BRACKET, THROTTLE 1
(2F1-14926-00-00)
Unavailable
62
PLATE
(2F1-14243-00-00)
Unavailable
