1978 Yamaha XS500 (XS500E) AC Generator Diagram

← All diagrams

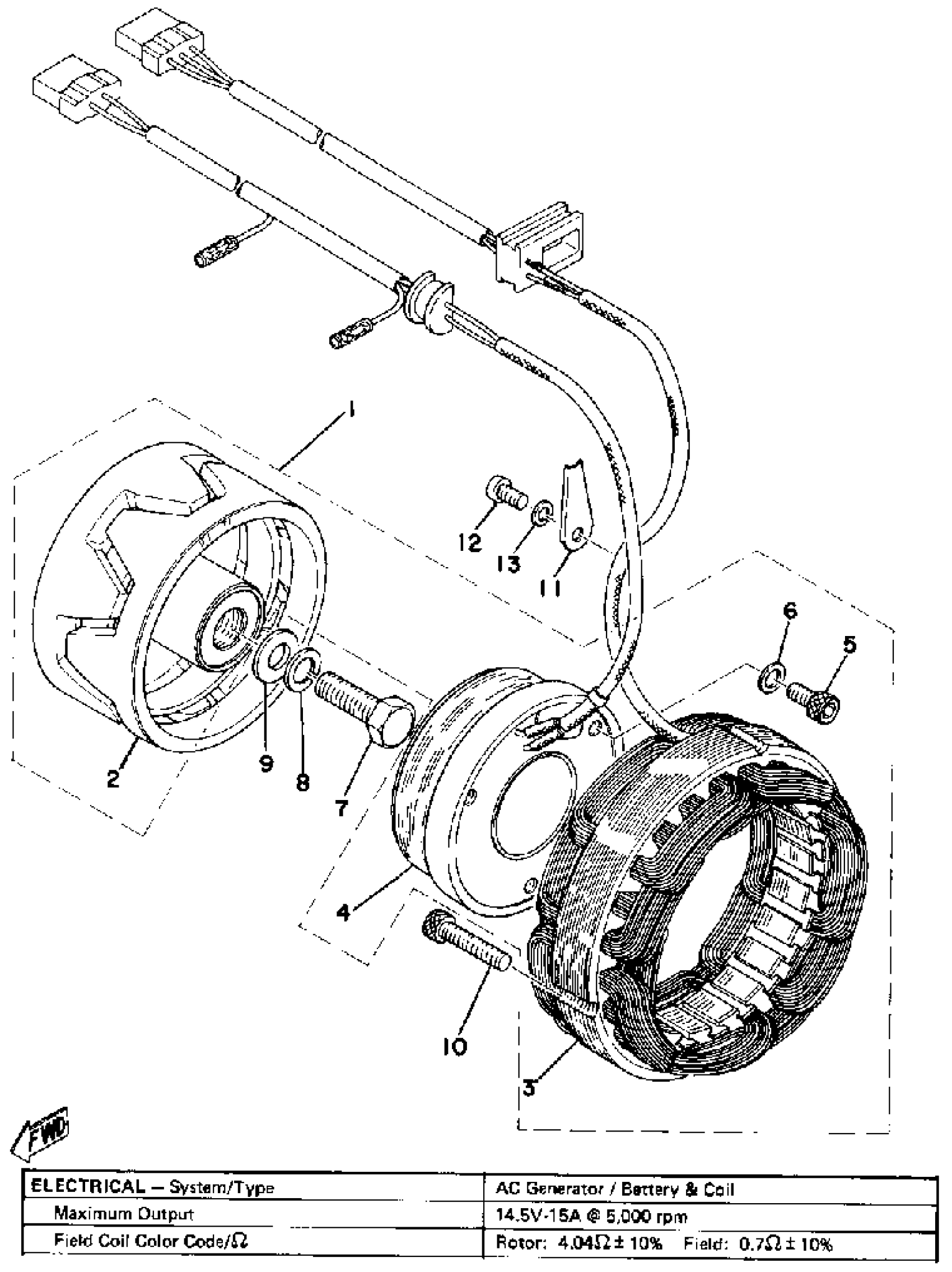

Find the part on the AC Generator diagram for your 1978 Yamaha XS500 (XS500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha XS500 (XS500E) AC Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AC GENERATOR ASSEMBLY

(1J3-81600-51-00)

1
Out of stock

2

ROTOR ASSEMBLY

(371-81650-11-00)

1
Out of stock

3

STATOR ASSEMBLY

(1J3-81610-50-00)

1
Out of stock

4

. FIELD COIL ASSEMBLY

371-81660-10-00

1
Out of stock

5

BOLT,SOCKET

91317-06016-00

1

$1.16

In stock

6

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

7

BOLT

90101-10105-00

1
Out of stock

8

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

9

WASHER, PLATE

(90201-10133-00)

1
Out of stock

10

1

$3.82

In stock

11

CLAMP

(90465-10058-00)

1
Out of stock

12

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock
