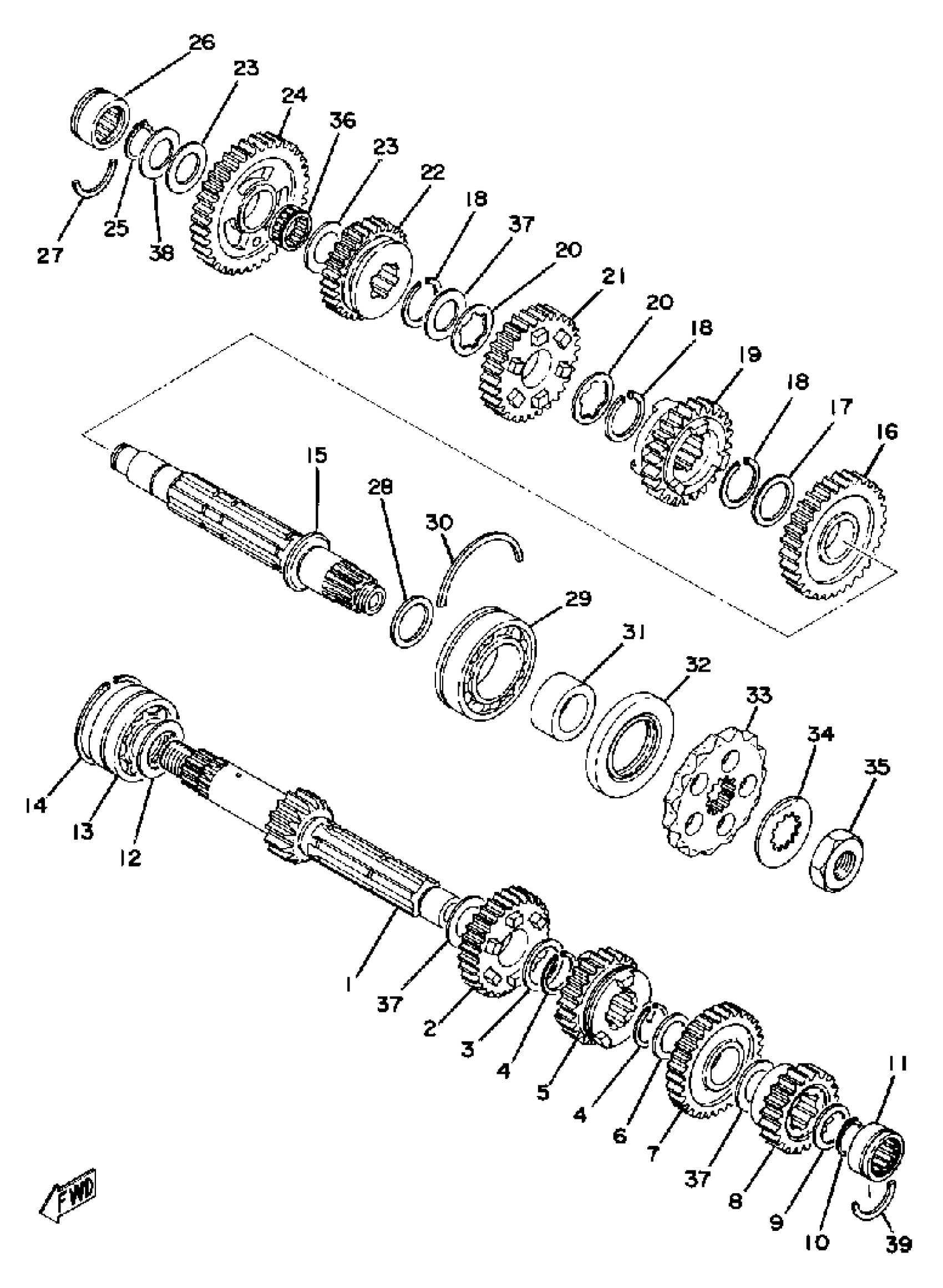

Yamaha XS500C (XS500) 1976 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

(371-17411-01-00)

Unavailable

2

GEAR, 4TH PINION

(278-17141-00-00)

Unavailable

3

WASHER PLATE 152172260000

90201-25490-00

$10.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION

(1A8-17131-00-00)

Unavailable

6

WASHER, SPEC''L SHAP

90209-21106-00

Unavailable

7

GEAR, 5TH PINION

(1A8-17151-00-00)

Unavailable

8

GEAR, 2ND PINION

(371-17121-01-00)

Unavailable

9

WASHER PLATE 328171160000

90201-20276-00

$8.49

10

CIRCLIP(1AR)

99009-20400-00

$8.49

11

BRG,CYL-CAL ROLLER 36G NT

93311-22027-00

$52.99

12

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

12

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

13

BRG,R-B 5205 52MM 190G KY

93305-20502-00

Unavailable

14

CIRCLIP (168)

93440-52009-00

$11.49

15

AXLE, DRIVE

(371-17421-00-00)

Unavailable

16

GEAR, 2ND WHEEL

(371-17221-02-00)

Unavailable

17

WASHER PLATE 152172260000

90201-25490-00

$10.49

18

CIRCLIP (4L0)

93440-25084-00

$5.60

19

GEAR, 5TH WHEEL

(1A8-17251-01-00)

Unavailable

20

WASHER, SPEC''L SHAP

90209-21106-00

Unavailable

21

GEAR, 3RD WHEEL

(371-17231-00-00)

Unavailable

22

GEAR, 4TH WHEEL

(1A8-17241-00-00)

Unavailable

23

WASHER PLATE 168171160000

90201-20278-00

Unavailable

24

GEAR, 1ST WHEEL

(371-17211-01-00)

Unavailable

25

CIRCLIP(1AR)

99009-20400-00

$8.49

26

BEARING, CYL.#11

93311-42045-00

Unavailable

27

CIR CLIP

278-17425-00-00

Unavailable

28

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

28

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

29

BRG,R-B 6305 62MM 225G NK

93306-30504-00

Unavailable

30

CIRCLIP

278-17424-01-00

Unavailable

31

COLLAR

(90387-25193-00)

Unavailable

32

OIL SEAL (35X62X6-371)

93102-35109-00

Unavailable

33

SPROCKET, DRIVE

3HE-17460-00-00

Unavailable

33

SPROCKET, DRIVE 16T

9385E-16114-00

Unavailable

33

SPROCKET, DRIVE 17T

9385E-17132-00

Unavailable

34

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

35

NUT 152174630000

90179-18020-00

Unavailable

36

BRG,CYL-CAL ROLLER 7G NT

93310-22057-00

Unavailable

37

SHIM 1

156-17417-00-01

Unavailable

37

SHIM 1 (25.1-31-0.2)

156-17417-00-02

Unavailable

37

SHIM 1

156-17417-00-03

Unavailable

38

SHIM 1

328-17427-00-01

Unavailable

38

SHIM 1

328-17427-00-02

Unavailable

38

SHIM 1

328-17427-00-03

Unavailable

39

CIRCLIP, INNER

93450-32042-00

Unavailable
