TAIL LAMP

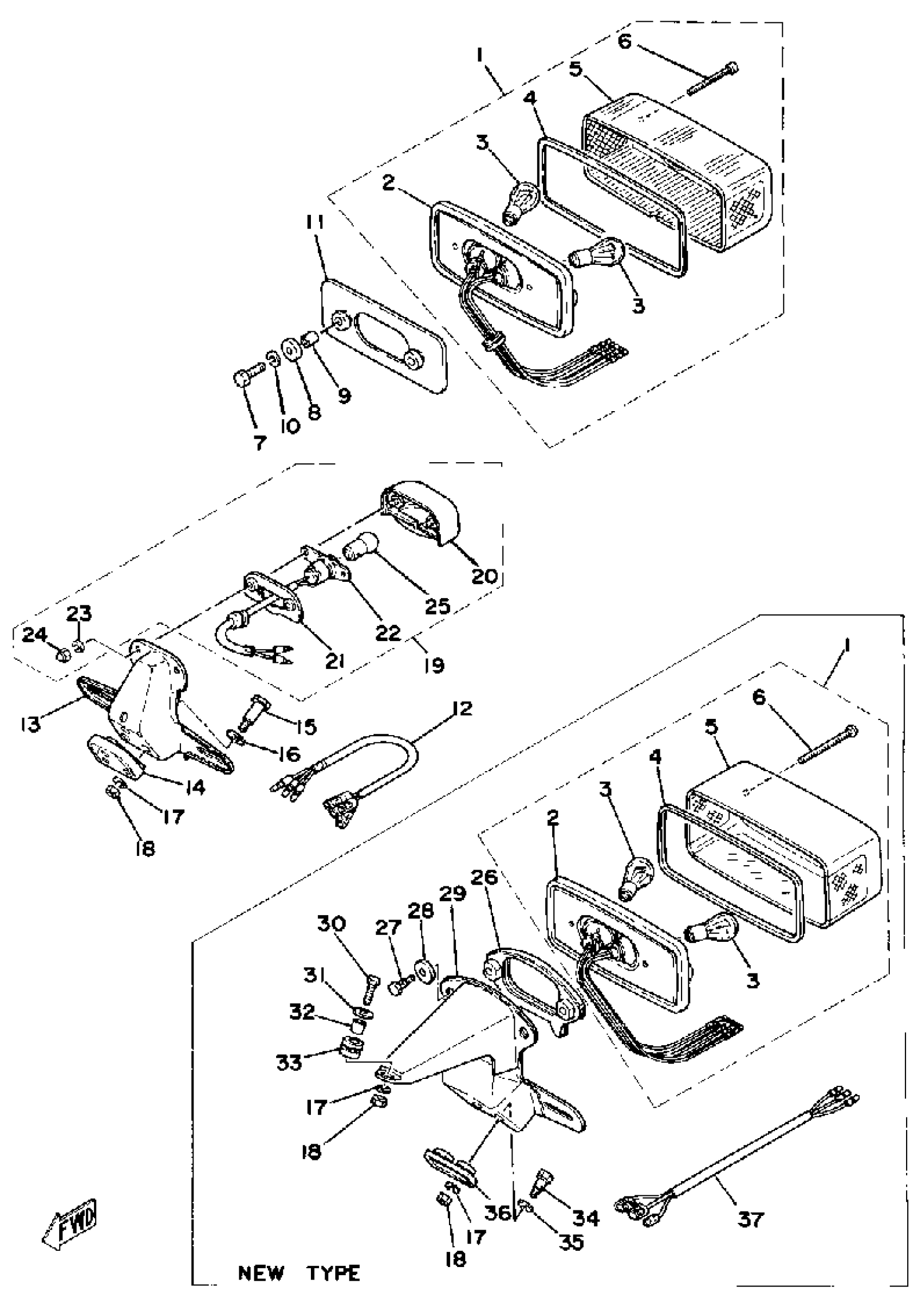

Yamaha XS500C (XS500) 1976 TAIL LAMP Diagram
#
1
TAILLIGHT UNIT ASSEMBLY
(1A8-84710-61-00)
Unavailable
1
TAILLIGHT UNIT ASSEMBLY
2A2-84710-60-00
Unavailable
2
. BASE, TAILLIGHT
(1A0-84711-60-00)
Unavailable
4
. GASKET, TAIL LENS
1A0-84723-60-00
Unavailable
5
. LENS, TAILLIGHT
1A8-84721-61-00
Unavailable
6
SCREW, PANHEAD (4G7)
98580-04055-00
Unavailable
6
SCREW, PANHEAD (4G7)
98580-04055-00
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
11
DAMPER, TAIL
(1A8-84736-00-00)
Unavailable
12
CORD, TAILLIGHT
(1A8-84717-00-00)
Unavailable
13
BRACKET, LICENSE
(1A8-84751-60-33)
Unavailable
14
DAMPER
(1J3-84753-01-00)
Unavailable
15
BOLT 338845520000
90109-06022-00
Unavailable
16
WASHER, PLAIN
92990-08200-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
NUT, HEXAGON
95380-06600-00
Unavailable
19
LICENSE LITE ASSEMBLY
(1A8-84745-60-00)
Unavailable
20
LENS, LICENSE LITE
(1A8-84743-60-00)
Unavailable
21
SEAT, BASE
(1A8-84742-60-00)
Unavailable
22
CORD ASSEMBLY, LCNCE LT
(1A8-84747-60-00)
Unavailable
23
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
24
NUT (CROWN)
95303-05800-00
Unavailable
25
BULB (12V 38W)
4H7-84744-00-00
Unavailable
26
SHEET, BASE
1A0-84712-60-00
Unavailable
27
BOLT, TAILLAMP
1A0-84726-60-00
Unavailable
28
WASHER, SPECIAL
2H7-84754-00-00
Unavailable
29
BRACKET, LICENSE 000
(1A0-84751-60-93)
Unavailable
33
GROMMET 839774310000
90480-14023-00
Unavailable
34
BOLT 168217380000
90109-06017-00
Unavailable
35
WASHER, PLAIN
92990-08200-00
Unavailable
36
DAMPER
214-84553-01-00
Unavailable
37
CORD, TAILLIGHT
8L1-84727-00-00
Unavailable
