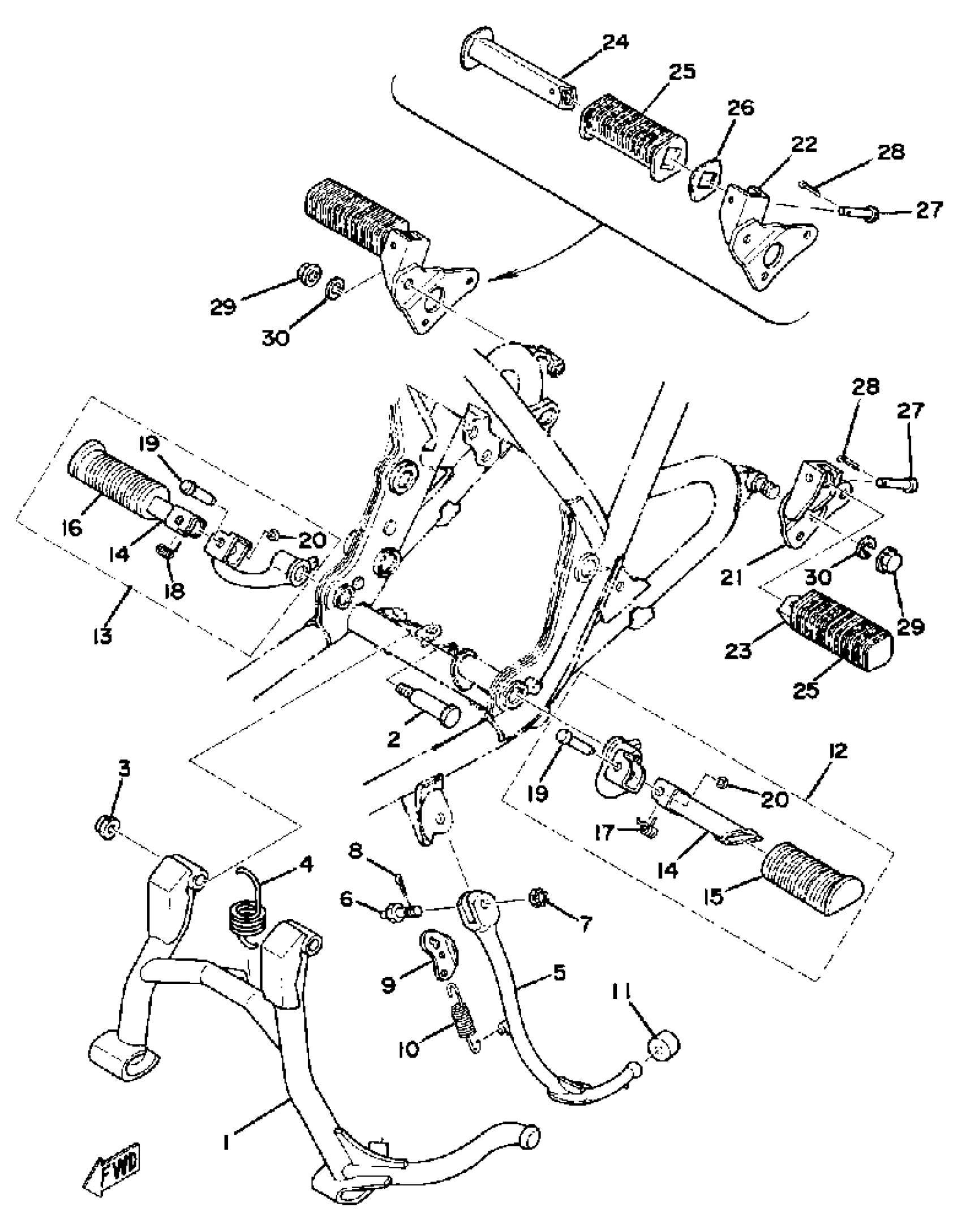

Yamaha XS500C (XS500) 1976 STAND - FOOTREST Diagram

#

Description
Price

1

STAND, MAIN (371-27111-04)

2F1-27111-00-00

Unavailable

2

BOLT

90109-10440-00

Unavailable

3

NUT, U

95617-10100-00

$8.49

4

SPRING, TENSION

90506-45063-00

Unavailable

5

STAND, SIDE

(1J7-27311-00-00)

Unavailable

6

BOLT

90109-10399-00

Unavailable

7

NUT,CASTLE

90171-10049-00

Unavailable

8

PIN, COTTER

91490-20025-00

$1.99

9

LINK, SIDE STAND

371-27315-00-00

Unavailable

10

SPRING, TENSION (4K0)

90506-26225-00

$11.49

11

STOPPER

278-27314-00-00

Unavailable

12

FRT FOOTREST ASSEMBLY L

(371-27410-00-00)

Unavailable

13

FRT FOOTREST ASSEMBLY R

(371-27420-00-00)

Unavailable

14

FOOTREST 2

(371-27421-00-00)

Unavailable

15

. COVER, FOOTREST

341-27423-00-00

Unavailable

16

. COVER, FOOTREST

341-27413-00-00

Unavailable

17

. SPRING, TORSION

90508-20154-00

Unavailable

18

SPRING TORSION 371274560000

90508-20155-00

Unavailable

19

PIN (214-27418-00)

90243-08006-00

Unavailable

20

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

21

BRACKET 1

(371-27432-01-00)

Unavailable

22

BRACKET 2

(371-27442-01-00)

Unavailable

23

FOOTREST, REAR 1

447-27431-00-00

Unavailable

24

FOOTREST, REAR 2

447-27441-00-00

Unavailable

25

COVER, REAR FOOTREST

447-27433-00-00

Unavailable

26

WASHER 447274370000

90209-18070-00

Unavailable

27

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

28

PIN, COTTER

91490-16020-00

Unavailable

29

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

30

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable
