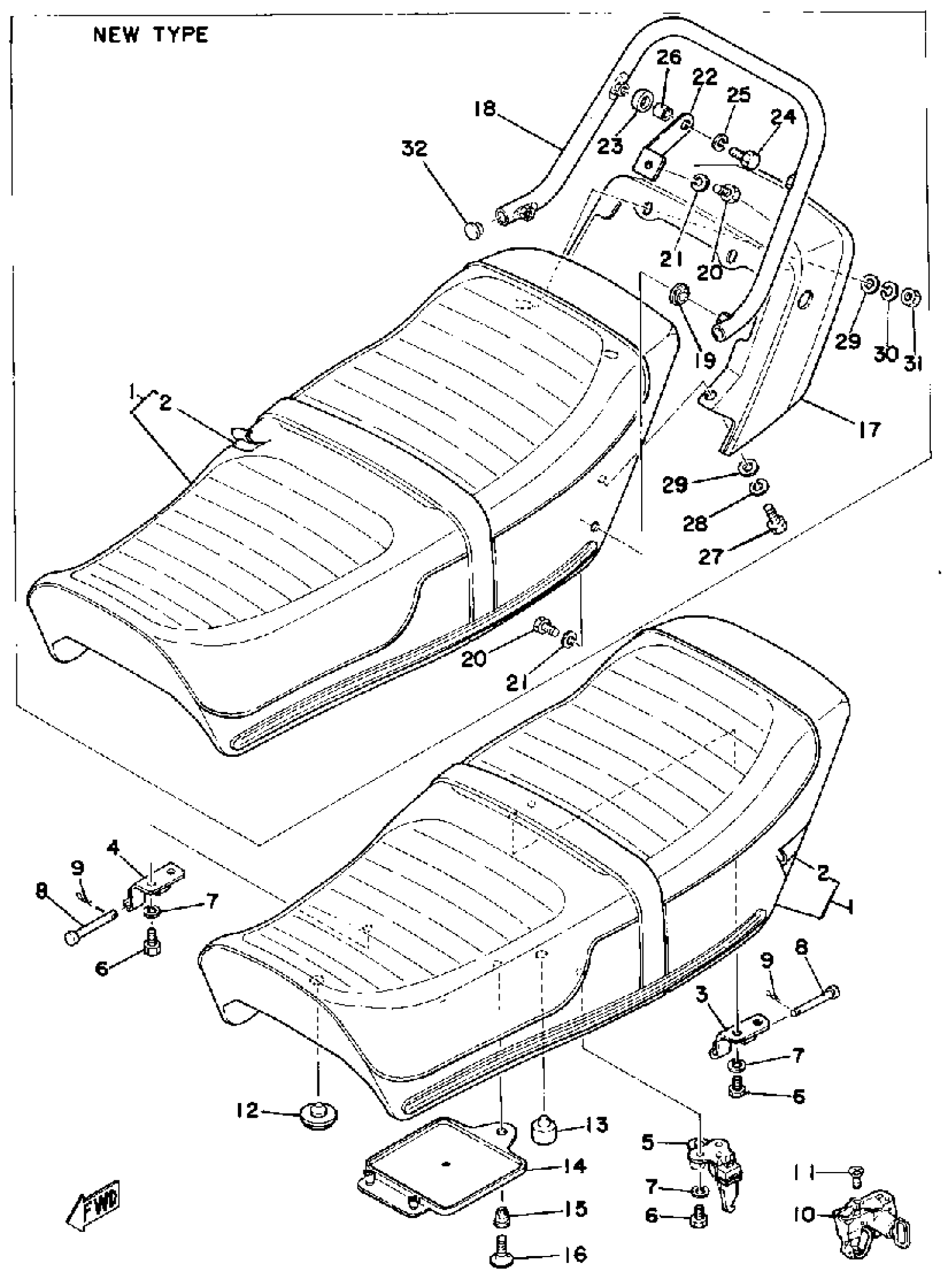

Yamaha XS500C (XS500) 1976 SEAT Diagram
#
1
DOUBLE SEAT ASSEMBLY
(1A8-24730-01-00)
Unavailable
1
UNAVAILABLE IN PRICE BOOK 000
1J3-24730-90-00
Unavailable
2
. COVER, DOUBLE SEAT
(1A8-24731-01-00)
Unavailable
2
. UNAVAILABLE IN PRICE BOOK000
1J3-24731-00-00
Unavailable
3
HINGE, SEAT
307-24726-00-33
Unavailable
5
BRACKET, SEAT
371-24728-02-00
Unavailable
7
WASHER, SPRING
92995-06100-00
Unavailable
10
SEAT LOCK ASSEMBLY
584-24705-00-00
Unavailable
14
LID
2R6-28185-00-00
Unavailable
15
GROMMET (341-28187-00)
90480-06007-00
Unavailable
16
PLUNGER
341-28188-00-00
Unavailable
17
COVER, TAIL 000
(1J3-24756-00-R7)
Unavailable
18
HANDLE, SEAT 000
(1J3-24761-00-00)
Unavailable
19
COVER, SEAT HANDLE
1T4-24796-00-00
Unavailable
20
BOLT(JA9)
90101-08691-00
Unavailable
21
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
22
BRACKET, SEAT 000
(1J3-24738-00-00)
Unavailable
22
BRACKET, SEAT 000
(1J3-24748-00-00)
Unavailable
23
COVER 000
(1J3-24796-00-00)
Unavailable
24
BOLT, HEXAGON
97017-08025-00
Unavailable
25
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
26
UNAVAILABLE IN PRICE BOOK 000
90387-08455-00
Unavailable
27
BOLT, HEXAGON
97013-05012-00
Unavailable
28
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
29
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
30
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
31
NUT, HEXAGON (663)
95380-05600-00
Unavailable
32
GROMMET, SEAT HANDLE
1J3-24742-00-00
Unavailable
