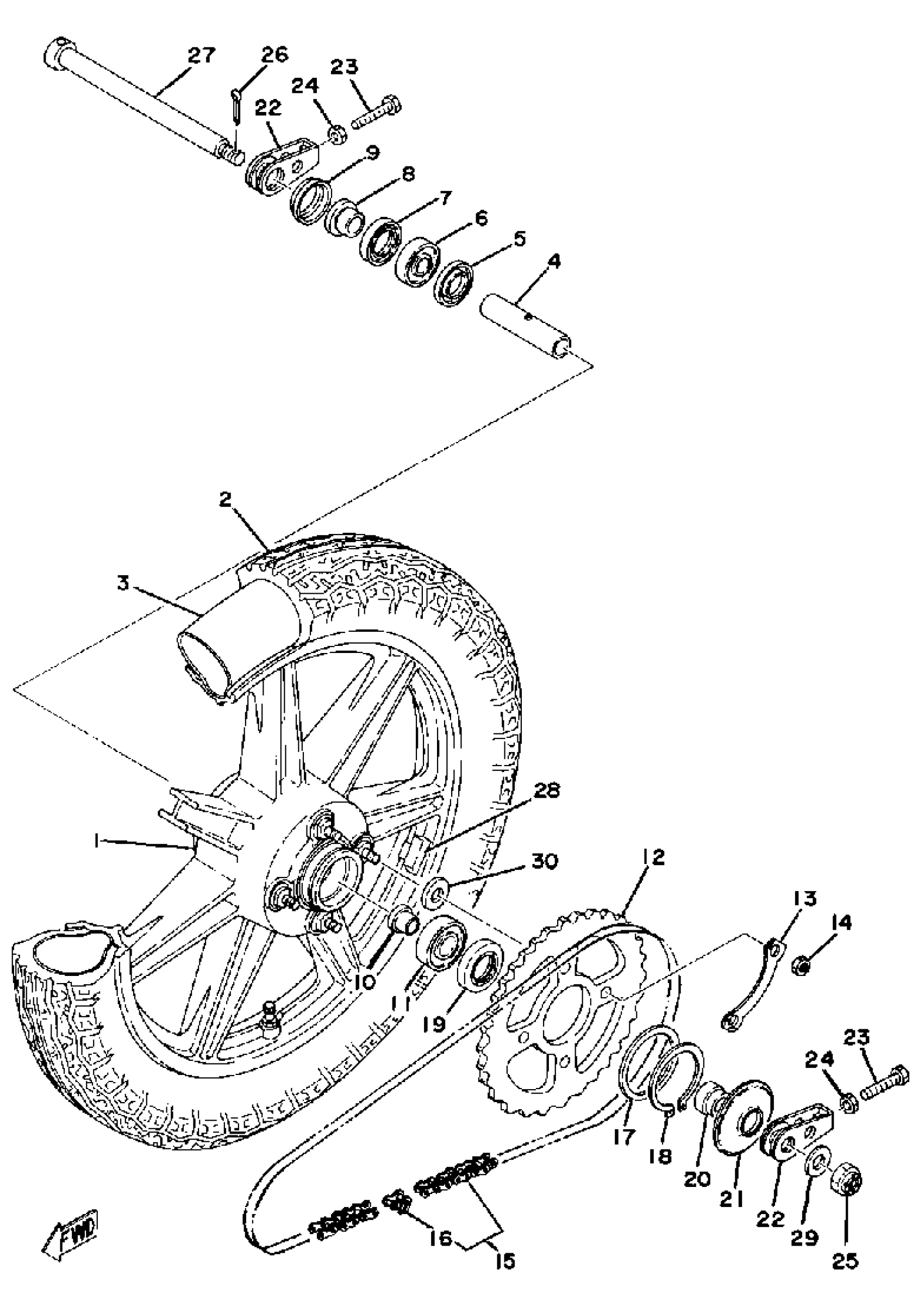

Yamaha XS500C (XS500) 1976 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

(1J3-W2533-20-00)

Unavailable

1

UNAVAILABLE IN PRICE BOOK 000

1J3-W2533-30-00

Unavailable

2

TIRE 400H18 Y987 YOKO

(94140-18340-00)

Unavailable

3

TUBE (5A8)

94212-18188-00

$35.99

4

SPACER, BEARING

1J3-25317-00-00

Unavailable

5

FLANGE, SPACER

146-25315-00-00

$7.99

6

BEARING(4HM)

93306-30317-00

$39.99

7

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

8

COLLAR

90387-17536-00

Unavailable

9

COVER, HUB DUST

(1J3-25118-00-00)

Unavailable

10

COLLAR, WHEEL

1A1-25377-00-00

Unavailable

11

BEARING(3BC)

93306-30437-00

$66.99

12

SPROCKET, DRIVN 42T

1J3-25442-20-00

Unavailable

13

WASHER

1J3-25412-00-00

Unavailable

14

NUT, HEXAGON SMALL

95317-12700-00

$8.49

15

CHAIN 50HDS-106L (94575-30106)

94580-05106-00

Unavailable

16

CHAIN JOINT

94680-05011-00

Unavailable

17

WASHER, PLATE

90201-66585-00

Unavailable

18

CIRCLIP, S-TYPE

93410-65040-00

Unavailable

19

OIL SEAL (28X52X6-137)

93102-28023-00

Unavailable

20

COLLAR

90387-17551-00

Unavailable

21

COVER, HUB DUST

1L9-25367-00-00

Unavailable

22

PULLER,CHAIN 2

12R-25389-00-00

Unavailable

23

BOLT

90101-08060-00

Unavailable

24

NUT, HEXAGON (509)

90170-08158-00

Unavailable

25

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

26

PIN, COTTER

91490-30030-00

Unavailable

27

AXLE, WHEEL

1J3-25381-00-00

Unavailable

28

UNAVAILABLE IN PRICE BOOK

(1A1-25398-00-)

Unavailable

28

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

28

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

29

WASHER, PLAIN

92990-14200-00

Unavailable

30

COLLAR

90387-20565-00

Unavailable
