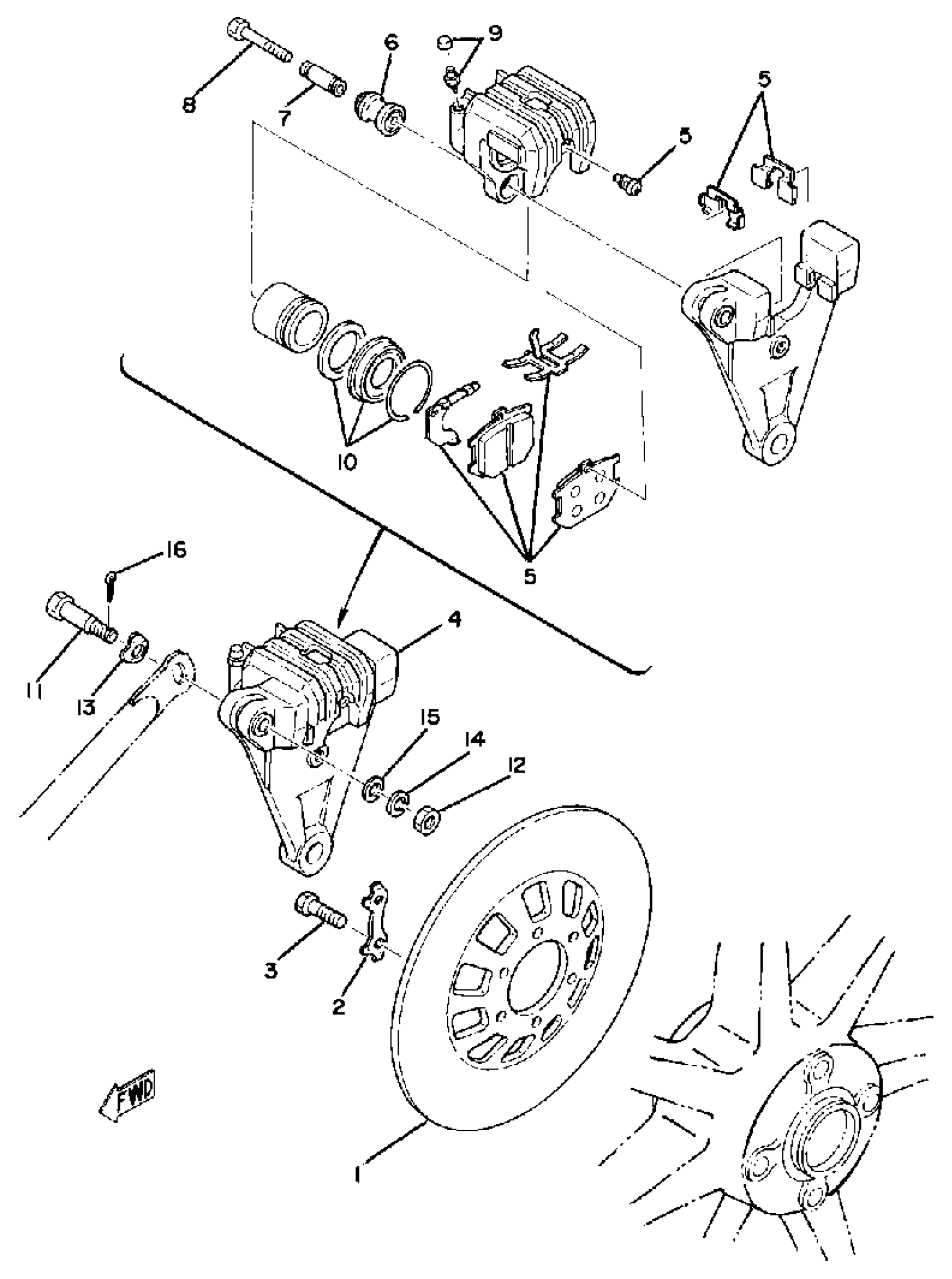

Yamaha XS500C (XS500) 1976 REAR DISC BRAKE - CALIPER Diagram

DISC, BRAKE

1J3-25831-50-00

Unavailable

WASHER, LOCK

1J3-25834-01-00

$6.99

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

CALIPER ASSEMBLY

(1J3-25810-51-00)

Unavailable

BRAKE PAD KIT

4K0-W0045-02-00

$56.99

BOOT, CALIPER

1J3-25917-00-00

Unavailable

. SLEEVE, CALIPER

1J3-25838-00-00

Unavailable

. BOLT, WASHER BASED

90105-08145-00

Unavailable

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

CALIPER SEAL KIT

1J3-W0047-00-00

$56.99

BOLT

90109-08454-00

Unavailable

NUT, HEXAGON (509)

90170-08158-00

$2.34

WASHER, WAVE (17W)

90206-12074-00

$9.49

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

.. WASHER, PLATE

92990-08600-00

Unavailable

PIN, COTTER

91490-20025-00

Unavailable
