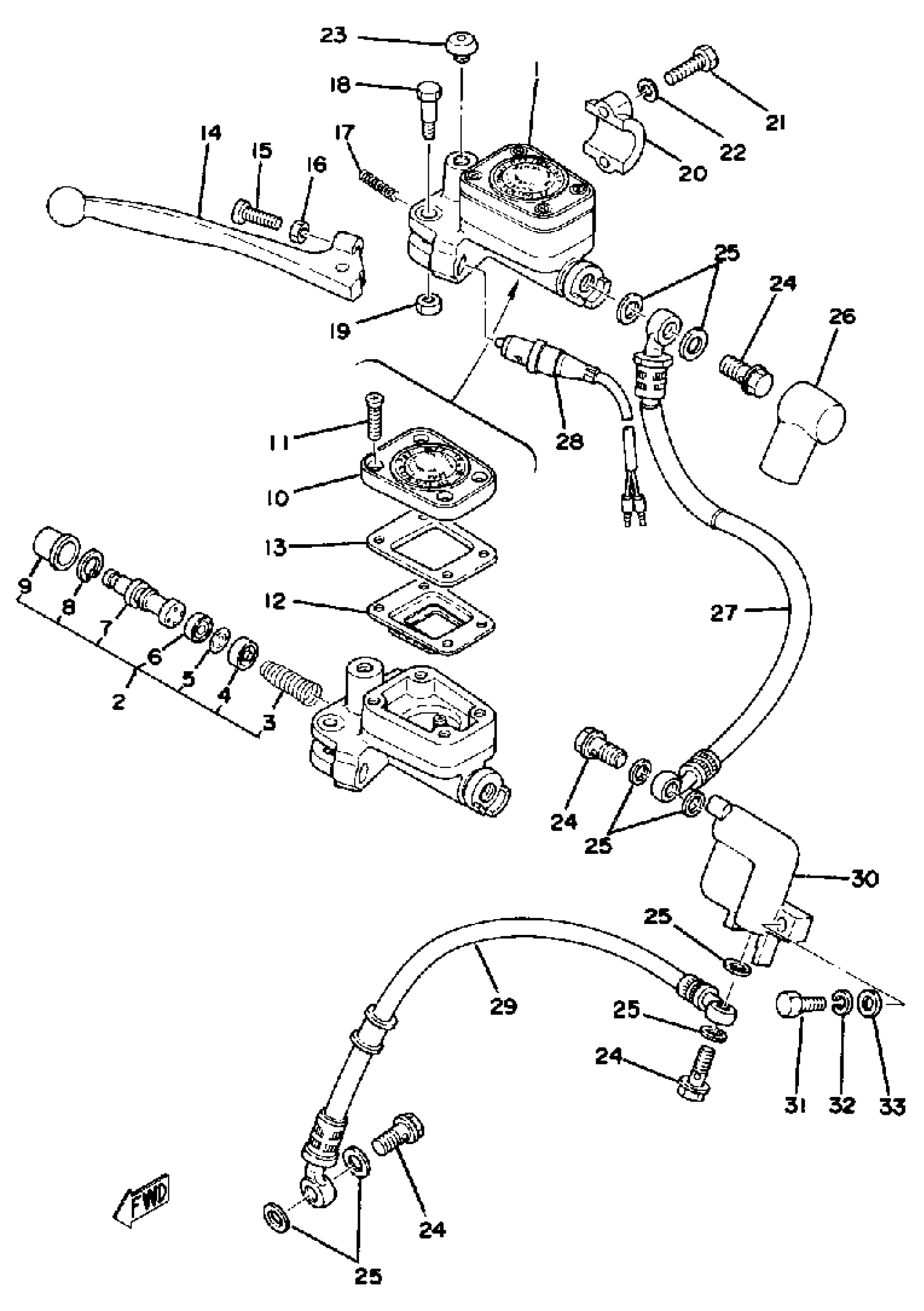

Yamaha XS500C (XS500) 1976 MASTER CYLINDER - BRAKE HOSE Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

1J3-25850-02-00

Unavailable

2

CYLINDER KIT, MASTER

535-W0041-60-00

$144.99

10

. RESERVOIR CAP ASSY

1J3-25852-01-00

Unavailable

11

SCREW, FLAT

98707-05014-00

$9.49

12

DIAPHRAGM, RESERVOIR

1J3-25854-01-00

$40.99

13

. GASKET

1J3-25855-01-00

Unavailable

14

LEVER R

(341-83922-00-00)

Unavailable

15

SCREW

90146-06005-00

Unavailable

16

NUT HEXAGON 306839270000

90170-06010-00

$8.49

17

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

18

BOLT (4L0)

90109-06577-00

$5.60

19

NUT(650)

95380-06700-00

$8.49

20

BRACKET, MASTER

1J3-25867-00-00

Unavailable

21

BOLT, HEXAGON

97017-06025-00

$4.24

22

WASHER, SPRING

92995-06100-00

Unavailable

23

PLUG (341-26329-00)

90338-09012-00

Unavailable

24

BOLT, UNION(3GM)

90401-10159-00

Unavailable

25

WASHER, PLATE(481)

90201-10118-00

Unavailable

26

BOOT, MASTER CYLINDER

306-25862-00-00

Unavailable

27

HOSE, BRAKE 2

(1J3-25873-02-00)

Unavailable

28

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable

29

HOSE, BRAKE

(1J3-25874-01-00)

Unavailable

30

JOINT

(1J3-25885-00-00)

Unavailable

31

BOLT, HEXAGON

97017-06025-00

$4.24

32

WASHER, SPRING

92995-06100-00

Unavailable

33

WASHER, PLAIN (646)

92990-06600-00

Unavailable
