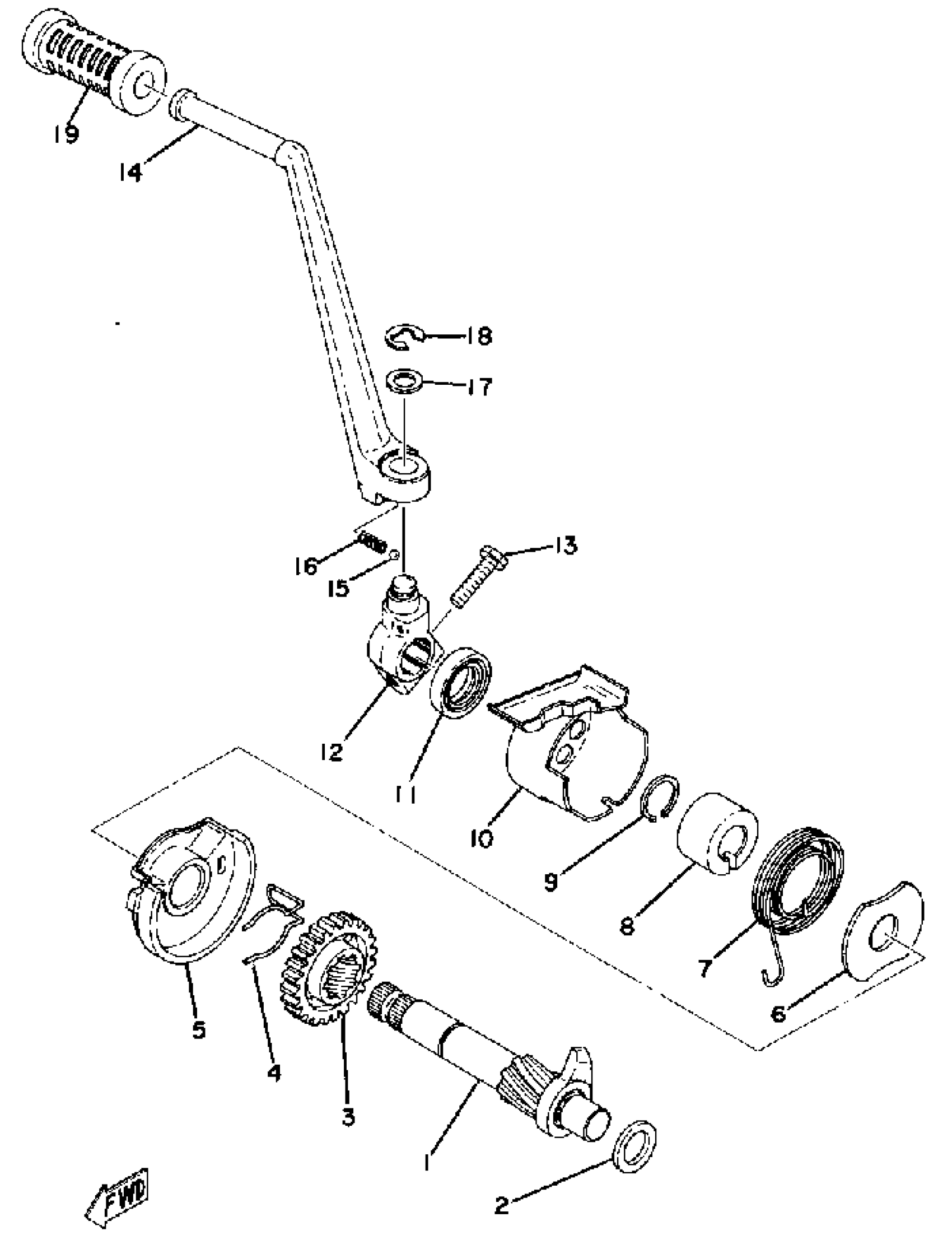

Yamaha XS500C (XS500) 1976 KICK STARTER Diagram

#

Description
Price

1

KICK AXLE ASSEMBLY

(371-15660-00-00)

Unavailable

2

COLLAR

(90387-17129-00)

Unavailable

3

GEAR, KICK

371-15641-01-00

Unavailable

4

CLIP

(371-15687-00-00)

Unavailable

5

GUIDE, SPRING

(371-15664-00-00)

Unavailable

6

COVER,SPRING

278-15676-00-00

$5.49

7

SPRING TORSION 278156650000

90508-30051-00

$15.99

8

SPACER

371-15666-00-00

Unavailable

9

CIRCLIP(1AR)

99009-20400-00

$8.49

10

COVER, SPRING

(371-15646-00-00)

Unavailable

11

OIL SEAL (20X30X7-371)

93102-20108-00

$11.49

12

BOSS, KICK CRANK

583-15621-00-00

$89.99

13

BOLT, HEXAGON

97013-08030-00

$2.49

14

CRANK,KICK

278-15611-00-00

Unavailable

15

BALL (12R)

93507-32031-00

$4.73

16

SPRING COMPRESSION278156220000

90501-12081-00

Unavailable

17

WASHER (3XVC)

90201-153A1-00

Unavailable

18

CIRCLIP

99006-10600-00

Unavailable

19

COVER, KICK LEVER

156-15618-01-00

Unavailable
