1976 Yamaha XS500 (XS500C) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1976 Yamaha XS500 (XS500C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

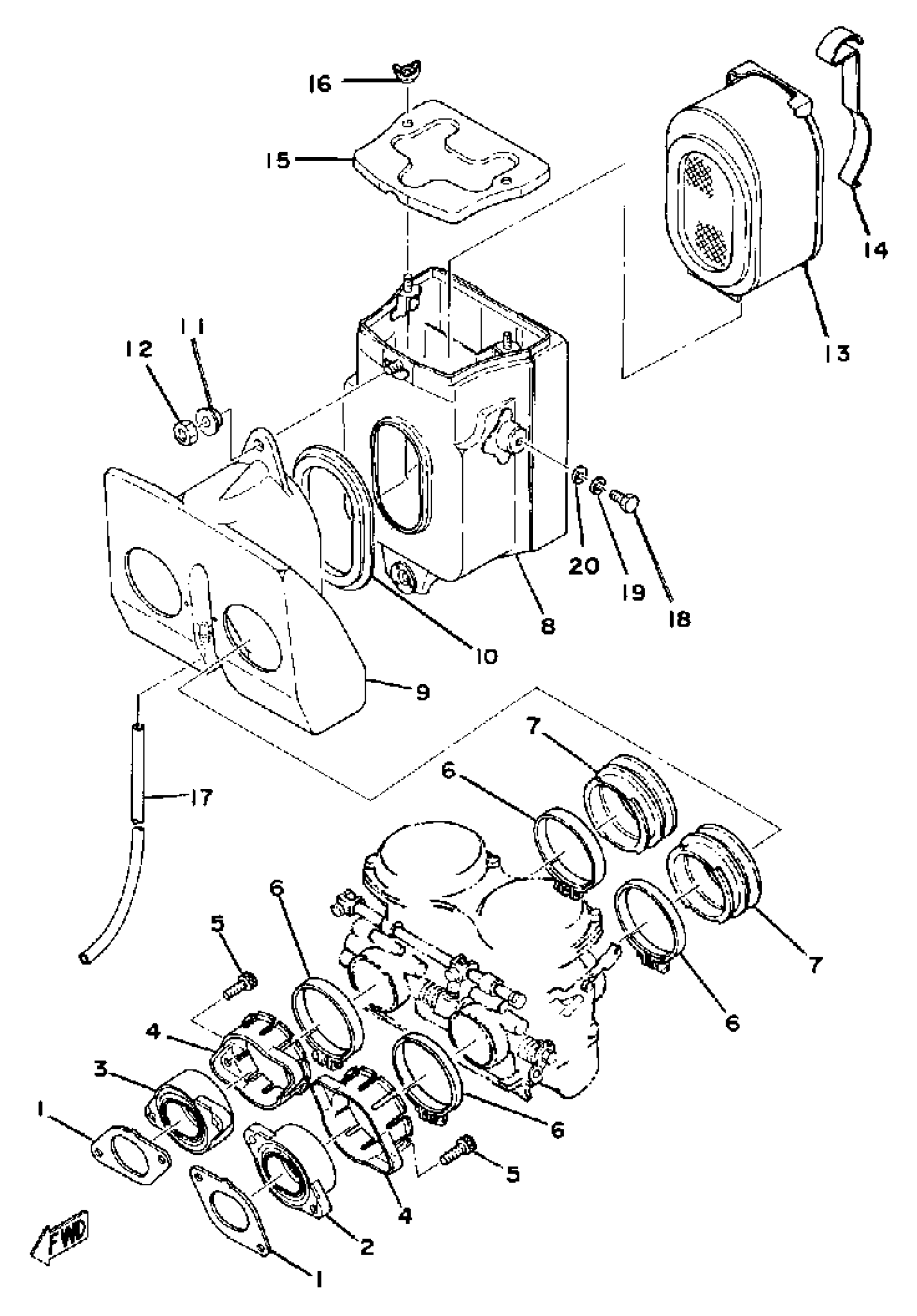

1976 Yamaha XS500 (XS500C) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, MANIFOLD

1A8-13556-01-00

1
Out of stock

2

JOINT, CARBURETOR 1

(1A8-13586-00-00)

1
Out of stock

3

JOINT, CARBURETOR 2

1A8-13596-00-00

1
Out of stock

4

COVER, CARB.JOINT

(1A8-13564-00-00)

1
Out of stock

5

BOLT,SOCKET

91317-06020-00

—
Out of stock

6

HOSE CLAMP ASSY

90450-58002-00

1
Out of stock

7

JOINT, AIR CLNR 1

(1A8-14453-00-00)

1
Out of stock

8

CASE, AIR CLEANER 1

(1A8-14411-00-00)

1
Out of stock

9

CASE, AIR CLEANER 2

(1A8-14421-00-00)

1
Out of stock

10

GASKET, AIR CLEANER

371-14416-00-00

1
Out of stock

11

COLLAR

90387-07562-00

1
Out of stock

12

NUT, HEXAGON

95380-06600-00

1
Out of stock

13

ELEMENT, AIR CLNR

1A8-14451-00-00

1
Out of stock

14

PLATE, ELEMENT FTNG

(1A8-14468-00-00)

1
Out of stock

15

CAP, CLEANER CASE 1

(1A8-14412-00-00)

1
Out of stock

16

NUT, WING 8147721700

90175-05005-00

—
Out of stock

17

HOSE (L420)

90445-092K1-00

—
Out of stock

18

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

19

WASHER, SPRING

92995-06100-00

1
Out of stock

20

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock
