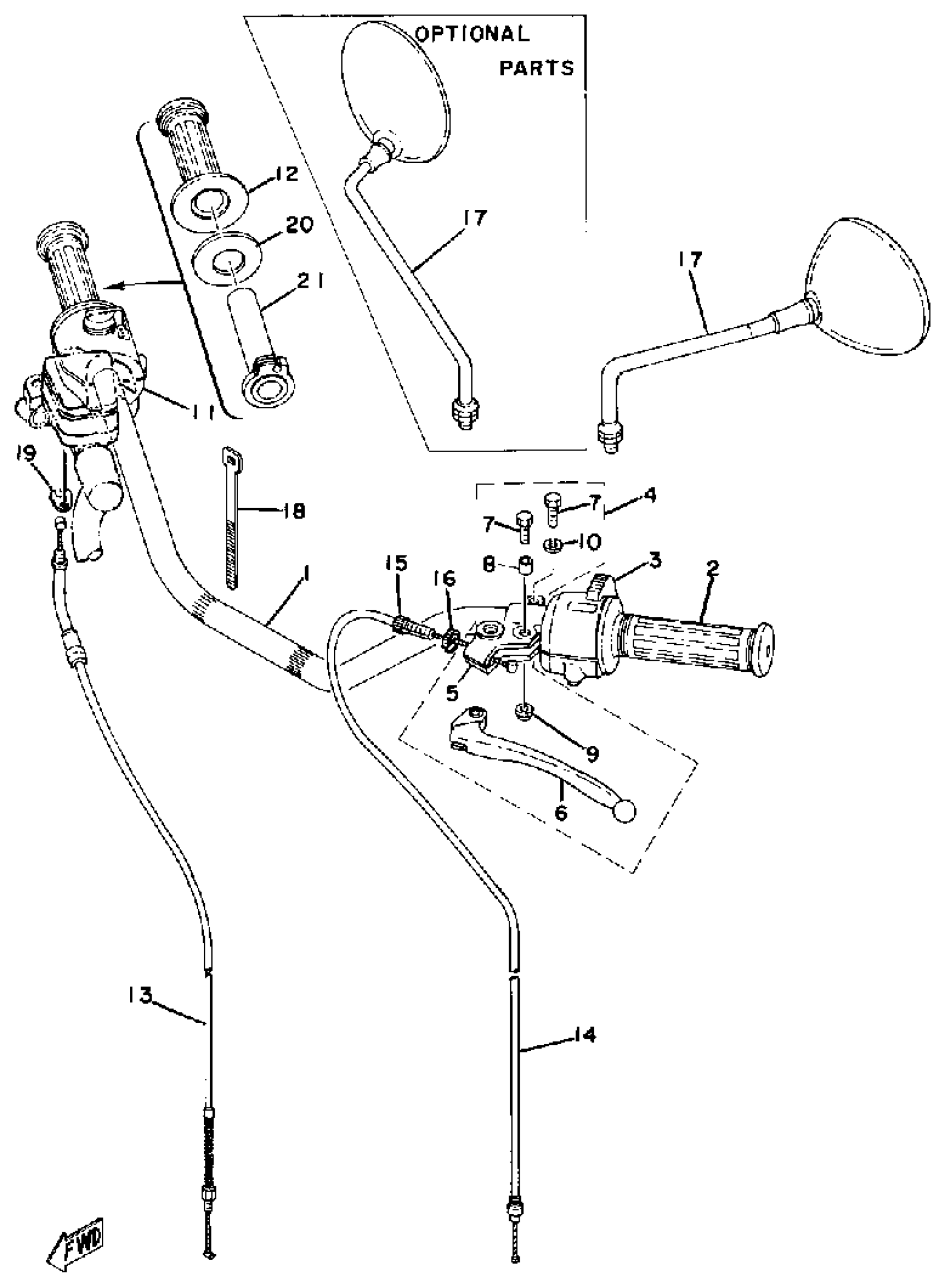

Yamaha XS500C (XS500) 1976 HANDLE - WIRE Diagram

#

Description
Price

1

HANDLE

1J7-26111-00-00

$144.99

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

3

SWITCH, HANDLE 3

1A0-83973-02-98

Unavailable

4

LEVER HOLDER ASSEMBLY 1

(1J3-82910-00-00)

Unavailable

5

HOLDER, LEVER (L.H) (371,447)

341-82911-00-00

Unavailable

6

LEVER(L.H)

214-83912-00-00

$23.99

7

BOLT, HEXAGON

97013-06022-00

$0.90

8

COLLAR, LEVER

214-83913-00-00

$7.99

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

WASHER, SPRING

92995-06100-00

Unavailable

11

SWITCH, HANDLE 2

1A8-83963-00-98

Unavailable

12

GRIP (R.H)

1A0-26242-01-00

$39.99

13

CABLE, THROTTLE 1

1J3-26311-00-00

Unavailable

14

CABLE, CLUTCH

12R-26335-00-00

Unavailable

15

BOLT

90123-08002-00

$10.49

16

NUT

90179-08030-00

Unavailable

17

MIRROR ASSEMBLY RH

1J7-26290-02-00

Unavailable

17

MIRROR ASSEMBLY RH

1J7-26290-02-00

Unavailable

17

MIRROR ASSEMBLY LH

1J7-26290-12-00

Unavailable

18

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

19

HOLDER,

584-26393-02-00

Unavailable

20

WASHER, PLATE(1UU)

90201-261L1-00

Unavailable

21

LEVER L

2H0-83912-31-00

Unavailable

21

HANDLE LEVER SET

(2J2-W0083-00-00)

Unavailable

21

LEVER 2

4L0-83922-00-00

Unavailable

21

TUBE, THROTTLE GUIDE

584-26243-00-00

Unavailable
