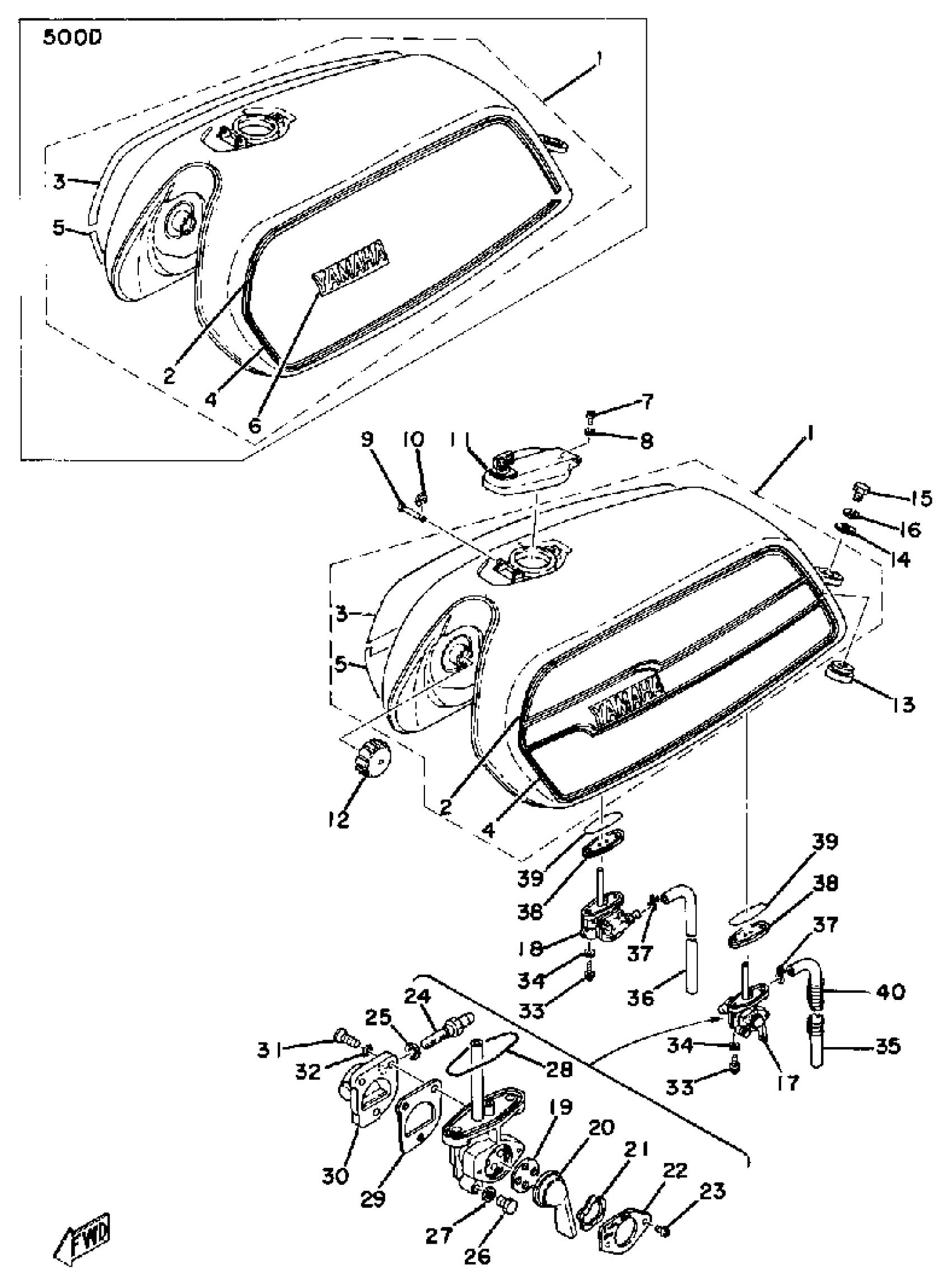

Yamaha XS500C (XS500) 1976 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(1A8-24110-01-02)

Unavailable

1

FUEL TANK

(1A8-24110-01-09)

Unavailable

2

GRAPHIC, FUEL TNK 1

(1A8-24244-10-00)

Unavailable

2

GRAPHIC, FUEL TNK 1

(1J3-24244-00-00)

Unavailable

3

GRAPHIC, FUEL TNK 2

(1A8-24245-10-00)

Unavailable

3

GRAPHIC, FUEL TNK 2

(1J3-24245-00-00)

Unavailable

4

GRAPHIC, FUEL TNK 3

(1A8-24246-10-00)

Unavailable

4

GRAPHIC, FUEL TNK 3

(1J3-24246-00-00)

Unavailable

5

GRAPHIC, FUEL TNK 4

(1A8-24247-10-00)

Unavailable

5

GRAPHIC, FUEL TNK 4

(1J3-24247-00-00)

Unavailable

6

. EMBLEM 1

1H2-24161-00-00

Unavailable

7

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

10

CIRCLIP (604)

93430-02001-00

$8.49

11

CAP ASSEMBLY

1E7-24602-00-00

Unavailable

12

DAMPER, LOCATING 1

3TB-24181-00-00

Unavailable

13

DAMPER, LOCATING 1

(1A8-24181-00-00)

Unavailable

14

WASHER, PLATE (J10)

90201-06697-00

Unavailable

15

BOLT (661)

97013-06012-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

FUEL COCK ASSEMBLY 1

447-24500-02-00

Unavailable

18

FUEL COCK ASSEMBLY 2

447-24510-02-00

Unavailable

19

VALVE

137-24523-00-00

Unavailable

20

. LEVER, COCK

447-24524-00-00

Unavailable

21

WASHER, WAVE

132-24518-00-00

Unavailable

22

. PLATE, LEVER FITTING

447-24525-00-00

Unavailable

22

PLATE, LVR FITTING

(447-24546-00-00)

Unavailable

23

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

24

. NIPPLE

256-24537-00-00

Unavailable

25

. GASKET

256-24528-00-00

Unavailable

26

SCREW,PANHEAD (EG9)

98580-05006-00

Unavailable

27

. GASKET, BODY 4

801-24437-00-00

Unavailable

28

GASKET, BODY

256-24512-00-00

Unavailable

29

GASKET FILTER

447-24522-00-00

Unavailable

30

COVER, FILTER

(447-24547-00-00)

Unavailable

30

COVER, FILTER

(447-24547-10-00)

Unavailable

31

SCREW, FLAT

98707-04010-00

Unavailable

32

WASHER, EX.TOOTH

(92901-04500-00)

Unavailable

33

SCREW, BIND (J17)

98980-06020-00

Unavailable

34

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

35

HOSE (L420)

90445-092K1-00

Unavailable

36

HOSE (L420)

90445-092K1-00

Unavailable

37

CLIP 101235600

90467-08003-00

Unavailable

38

SPACER, FUEL COCK

(366-24545-01-00)

Unavailable

39

GASKET, BODY

256-24512-00-00

Unavailable

40

SPRING, COMPRESSION

(90501-06028-00)

Unavailable
