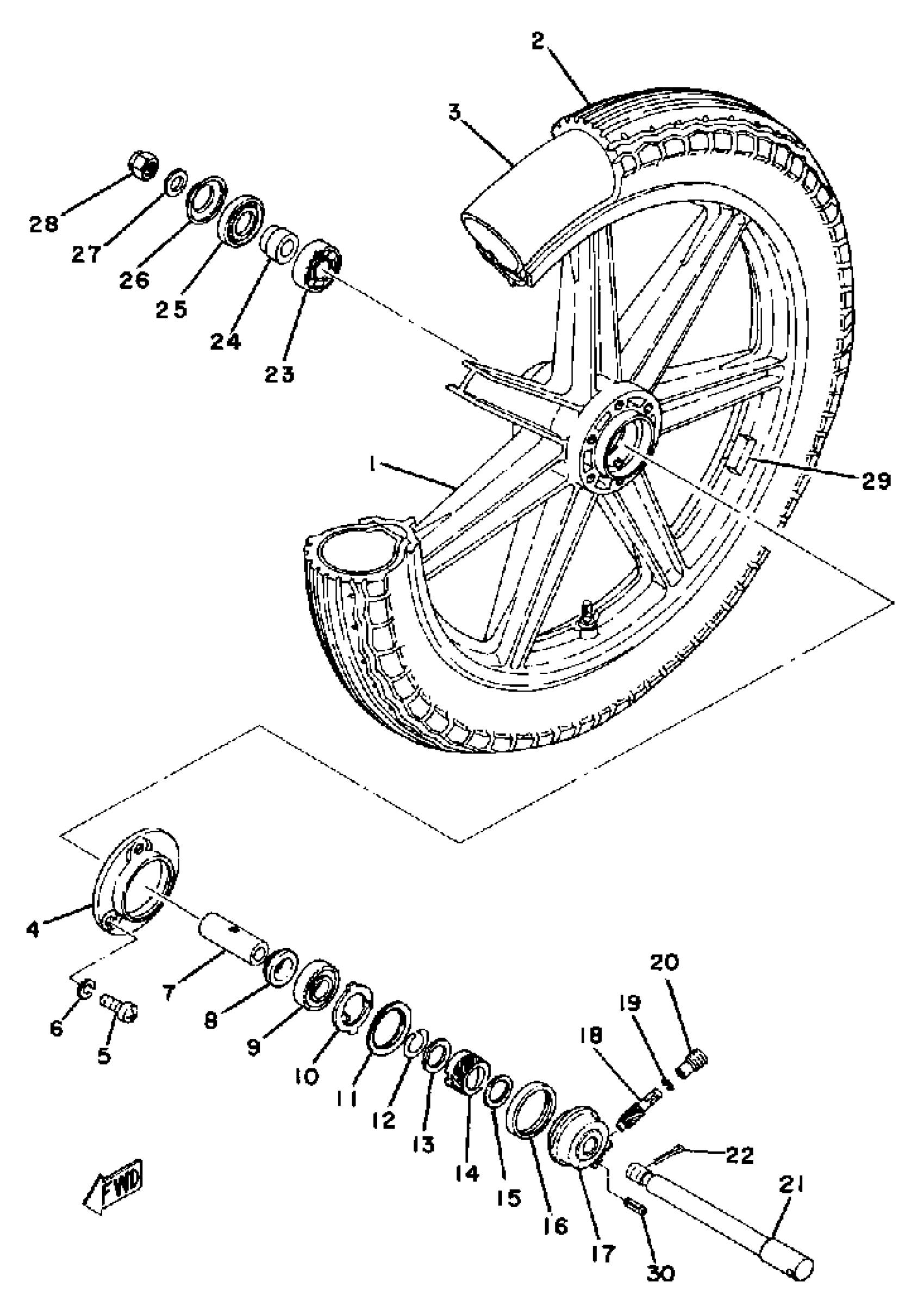

Yamaha XS500C (XS500) 1976 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, CAST FRONT

(1J3-25168-20-00)

Unavailable

1

WHEEL, CAST FRONT 000

(2F1-25168-20-00)

Unavailable

2

325H19Y986SPEDMSTR

(94132-19357-00)

Unavailable

3

TUBE

(94232-19064-00)

Unavailable

4

COVER, HOUSING

(371-25847-00-00)

Unavailable

5

SCREW,PAN HEAD

98580-08012-00

Unavailable

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

SPACER

90560-17125-00

Unavailable

8

FLANGE, SPACER

146-25315-00-00

$7.99

9

BEARING(4HM)

93306-30317-00

$39.99

10

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

11

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

12

RING, STOP

341-25137-00-00

Unavailable

13

WASHER PLATE 341251470000

90201-25286-00

Unavailable

14

GEAR, DRIVE

341-25135-01-00

Unavailable

15

WASHER PLATE 152172260000

90201-25490-00

Unavailable

16

OIL SEAL (45X56X6)

93105-45017-00

Unavailable

17

HOUSING, GEAR

341-25191-01-00

Unavailable

18

GEAR, METER

306-25138-00-00

Unavailable

19

SHIM, ROD

102-18416-00-00

Unavailable

20

BUSH

306-25136-00-00

Unavailable

21

AXLE, WHEEL

351-25181-10-00

Unavailable

22

PIN, COTTER

91490-30030-00

Unavailable

23

BEARING(4HM)

93306-30317-00

$39.99

24

COLLAR

90387-17433-00

Unavailable

25

OIL SEAL (28X47X7-102)

93102-28022-00

Unavailable

26

COVER, HUB DUST

341-25118-00-00

Unavailable

27

WASHER, PLAIN

92990-14200-00

Unavailable

28

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

29

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

29

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

30

PIN, SPRING (V60)

91609-20014-00

Unavailable
