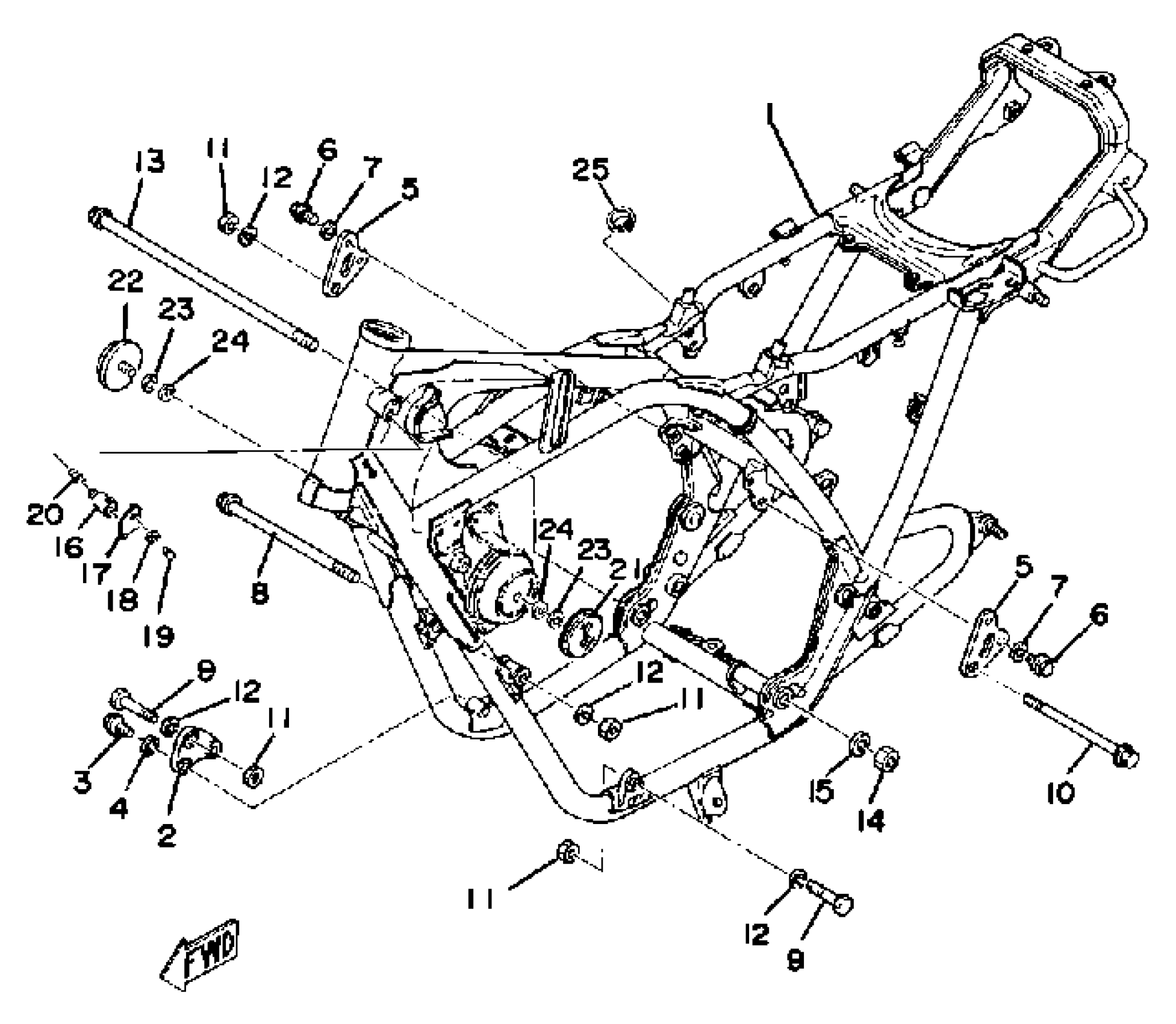

Yamaha XS500C (XS500) 1976 FRAME Diagram

#

Description
Price

1

FRAME

(1J3-21110-00-33)

Unavailable

2

STAY, ENGINE 3

(371-21316-00-00)

Unavailable

3

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

STAY, ENGINE 2

(371-21315-01-00)

Unavailable

6

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

BOLT, FLANGE

(95821-10175-00)

Unavailable

9

BOLT (371 CHASSIS)

90105-10036-00

$8.49

10

BOLT, FLANGE (2F1)

95821-10155-00

Unavailable

11

NUT

90170-10011-00

$7.49

12

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

13

BOLT

(838-17647-01-00)

Unavailable

14

NUT, HEXAGON 98801-12200

90170-12175-00

$9.49

15

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

16

STEERING LOCK ASSY

2A6-23408-00-00

Unavailable

17

CAP, HANDLE LOCK

3DM-23484-00-00

Unavailable

18

WASHER, WAVE

90206-04003-00

Unavailable

19

RIVET 214234830000

90269-04003-00

Unavailable

20

SPRING, CONICAL (1E6)

90502-09024-00

Unavailable

21

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

22

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

24

. WASHER, PLAIN

92990-05200-00

Unavailable

25

BAND

341-26397-01-00

Unavailable
