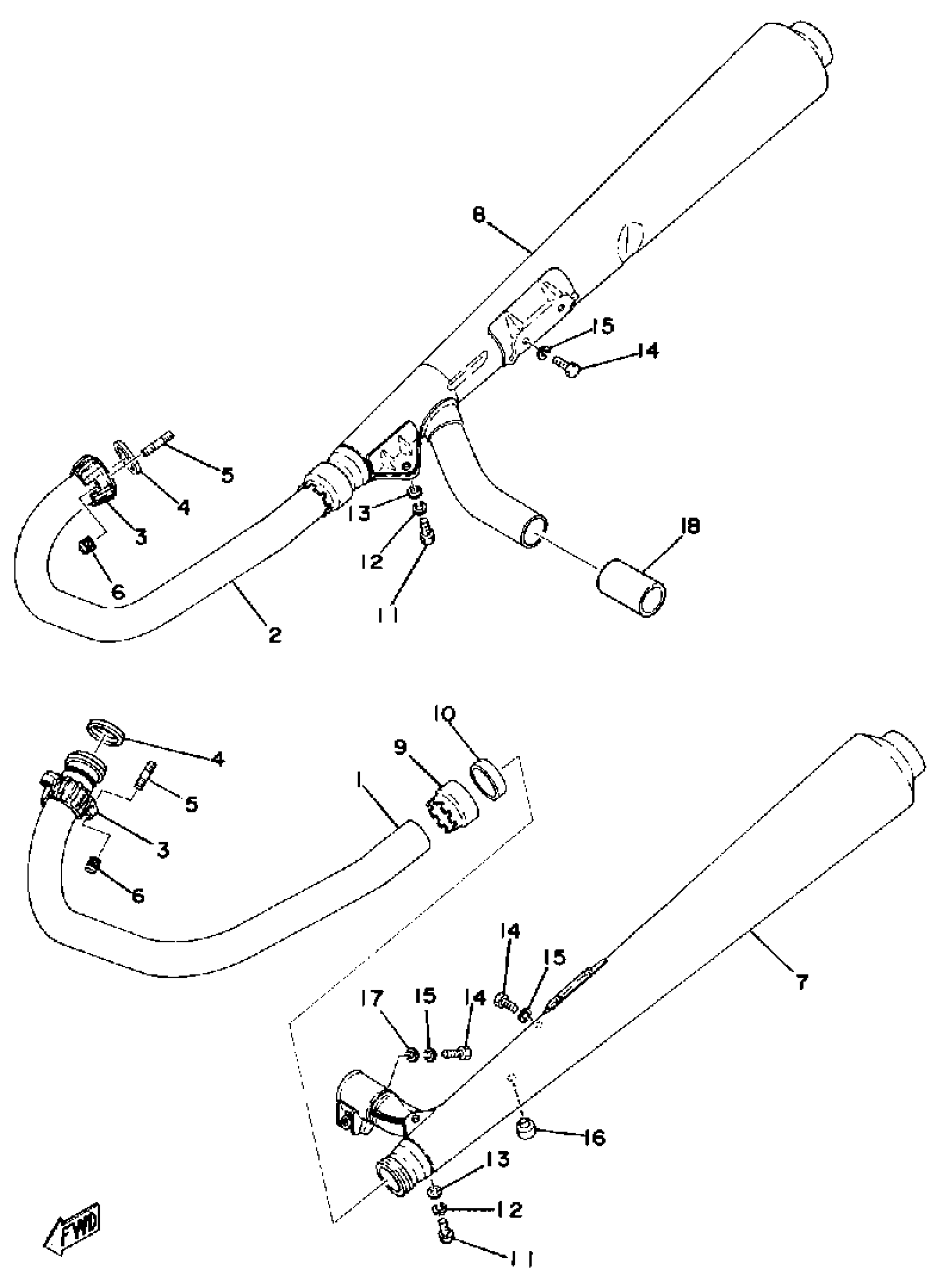

Yamaha XS500C (XS500) 1976 EXHAUST Diagram
#
Description
Price
1
PIPE, EXHAUST L
(1A8-14611-00-00)
Unavailable
1
PIPE, EXHAUST L 000
(1A8-14611-01-00)
Unavailable
2
PIPE, EXHAUST R
(1A8-14621-00-00)
Unavailable
2
PIPE, EXHAUST R 000
1A8-14621-01-00
Unavailable
3
NUT, RING (371-14612-02)
371-14612-03-00
Unavailable
3
NUT, RING (371-14612-02)
371-14612-03-00
Unavailable
4
GASKET, EXST PIPE
371-14613-00-00
Unavailable
5
BOLT, STUD (17W)
90116-08408-00
Unavailable
7
MUFFLER L
371-14711-04-00
Unavailable
7
UNAVAILABLE IN PRICE BOOK 001
371-14711-05-00
Unavailable
8
MUFFLER R
371-14721-04-00
Unavailable
8
UNAVAILABLE IN PRICE BOOK 000
371-14721-05-00
Unavailable
9
NUT, MUFFLER JOINT
371-14713-00-00
Unavailable
10
GASKET,MUFFLER
371-14714-13-00
Unavailable
11
STOPPER, MAIN STAND
371-27114-00-00
Unavailable
12
.. WASHER, PLATE
92990-08600-00
Unavailable
13
.. WASHER, PLATE
92990-08600-00
Unavailable
14
BOLT, HEXAGON
97013-08020-00
Unavailable
15
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
16
STOPPER, MAIN STAND
371-27114-00-00
Unavailable
17
.. WASHER, PLATE
92990-08600-00
Unavailable
18
GASKET, MUFFLER 000
(1A8-14714-00-00)
Unavailable
