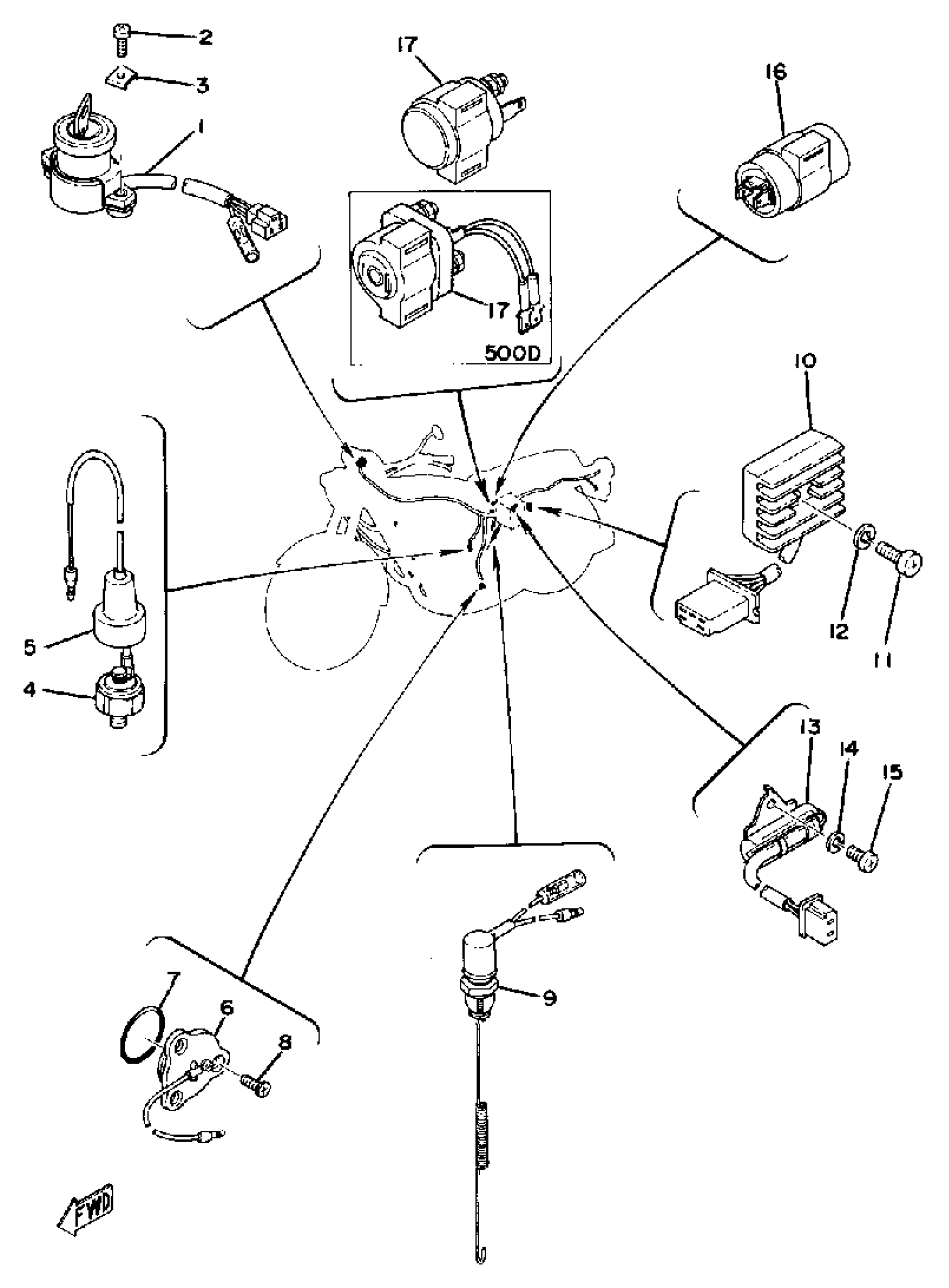

Yamaha XS500C (XS500) 1976 ELECTRICAL 2 Diagram

#

Description
Price

1

MAIN SWITCH ASSEMBLY

584-82508-40-00

Unavailable

2

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

3

WASHER, SPECIAL

533-82517-00-00

Unavailable

4

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

Unavailable

5

WIRE, LEAD

(371-82507-00-00)

Unavailable

6

NEUTRAL SWITCH ASSY

1L9-82540-00-00

$47.99

7

O-RING (371)

93210-29196-00

$8.49

8

SCREW, FLAT

98707-05012-00

$1.71

9

STOP SWITCH ASSEMBLY

(1J3-82530-00-00)

Unavailable

10

RECTIFIER ASSEMBLY

1L9-81970-60-00

Unavailable

11

SCREW PAN HEAD

98580-06020-00

$8.49

12

WASHER, SPRING

92995-06100-00

Unavailable

13

CONDENSER 1

371-81625-10-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

16

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

17

STARTER SWITCH ASSEMBLY (371-81940-22)

1J3-81940-10-00

Unavailable
